High Quality 1000A Clamp on Current Transformer with CE

Name: High Quality 1000A Clamp on Current Transformer with CE
Brand: all-electronics-online.com
SKU: 672688821
Availability: InStock
Rating: 4.9 (97 reviews)

Price:	US $ 88/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q50A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Clamp on Current Transformer
Operating Temperature:	-20~55
Measuring Current Range:	0~1000A
Dimensions:	101mm×219mm×26mm
Weight:	550g
Accuracy:	0.1%, 0.2%, 0.5%
Radio:	1000:1
Ratio:	200-1500A/5A, 200-1500A/1A
Jaw Diameter:	50mm
Burden:	2.5va
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

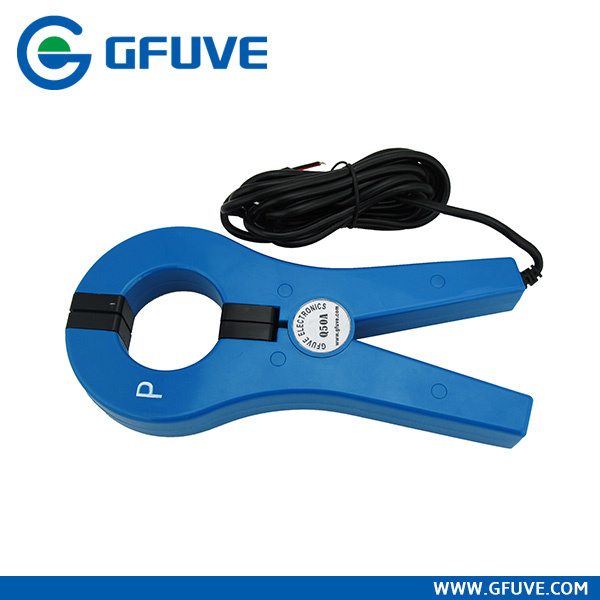

Q50A High Quality 1000A Clamp on Current Transformer with CE

Current Sensor
Characteristic and application: Suitable for 1000 A cable online measurement...
But holding wire diameter: Φ 50mm
Dimension: 101mm× 219mm× 26mm
(View outline drawing)
With load capacity: Ma output≤ 4Ω , 1A output 0.1Ω , 5A output 2.5VA
Installation: Clamp type
Output mode: Lead output

Primary current	Secondary current	Precision
10A	2.5mA	Class 0.1%, 0.2%, 0.5%
10A	5mA	Class 0.1%, 0.2%, 0.5%
20A	5mA	Class 0.1%, 0.2%, 0.5%
100A	20mA	Class 0.1%, 0.2%, 0.5%
100A	40mA	Class 0.1%, 0.2%, 0.5%
100A	50mA	Class 0.1%, 0.2%, 0.5%
100A	100mA	Class 0.1%, 0.2%, 0.5%
200A	80mA	Class 0.1%, 0.2%, 0.5%
200A	100mA	Class 0.1%, 0.2%, 0.5%
200A	200mA	Class 0.1%, 0.2%, 0.5%
300A	120mA	Class 0.1%, 0.2%, 0.5%
300A	150mA	Class 0.1%, 0.2%, 0.5%
300A	200mA	Class 0.1%, 0.2%, 0.5%
300A	300mA	Class 0.1%, 0.2%, 0.5%
500A	100mA	Class 0.1%, 0.2%, 0.5%
500A	200mA	Class 0.1%, 0.2%, 0.5%
500A	250mA	Class 0.1%, 0.2%, 0.5%
500A	500mA	Class 0.1%, 0.2%, 0.5%

Primary current	Secondary current	Precision
600A	120mA	Class 0.1%, 0.2%, 0.5%
600A	200mA	Class 0.1%, 0.2%, 0.5%
600A	300mA	Class 0.1%, 0.2%, 0.5%
600A	400mA	Class 0.1%, 0.2%, 0.5%
600A	500mA	Class 0.1%, 0.2%, 0.5%
600A	600mA	Class 0.1%, 0.2%, 0.5%
700A	200mA	Class 0.1%, 0.2%, 0.5%
700A	350mA	Class 0.1%, 0.2%, 0.5%
700A	700mA	Class 0.1%, 0.2%, 0.5%
800A	160mA	Class 0.1%, 0.2%, 0.5%
800A	200mA	Class 0.1%, 0.2%, 0.5%
800A	250mA	Class 0.1%, 0.2%, 0.5%
800A	320mA	Class 0.1%, 0.2%, 0.5%
800A	400mA	Class 0.1%, 0.2%, 0.5%
800A	500mA	Class 0.1%, 0.2%, 0.5%
800A	800mA	Class 0.1%, 0.2%, 0.5%
500A ~ 1000A	1A	Class 0.2%, 0.5%
600A ~ 1000A	1A	Class 0.1%, 0.2%, 0.5%
200A	5A	Class 1%
300A ~ 500A	5A	Class 0.5%
500A ~ 1000A	5A	Class 0.2%, 0.5%
Grounding resistance tester supporting	Need to match special instrument	Class 0.1%, 0.5%

http://www.gfuve.com/current-probe/1000a-ratio-customised-ac-clamp-on-ct-current-transformer.html

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
