| Prod Model: |
YKS |
| Output Power: |
10-10000kw |
| Frequency: |
50/60Hz |
| After-Sales Service: |
Engineers Available to Service Machinery Overseas |
| Efficiency: |
Ie 1 |
| Insulation Class: |
F Grade |
| Pole: |
2p, 4p, 6p, 8p, 10p, 12p |
| Cooling Method: |
IC611, IC616, Air-to-Air Cooler Cooling |
| Type: |
Asynchronous Motor |
| Protection Class: |
IP23 IP44 IP54 |
| Rotor: |
Squirrel-Cage |
| Number Of Stator: |
Three-Phase |
| Speed: |
500rpm~3600rpm |
| Function: |
Driving Vertical Deep Well Turbine Pump |
| Brand: |
China Electric |
Product Description

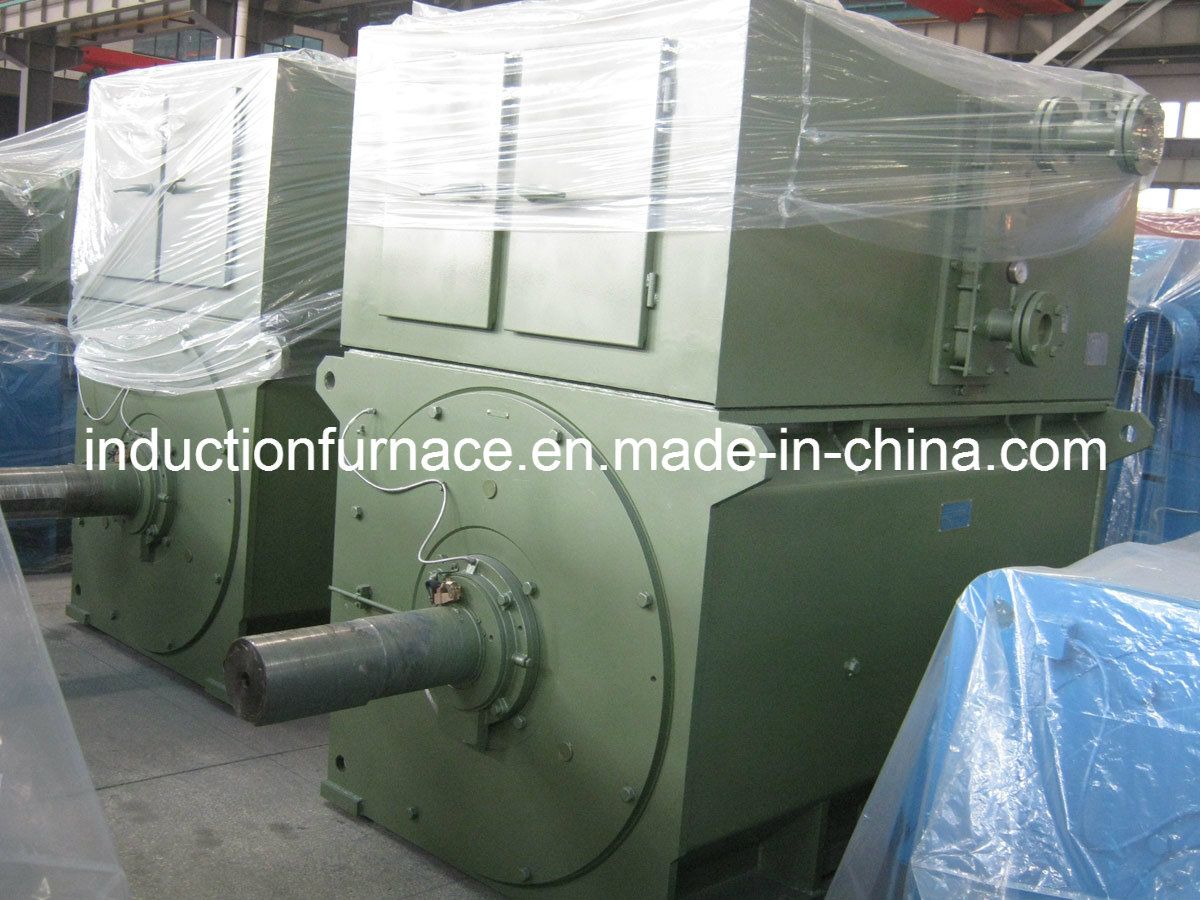

High quality 1000rpm Squirrel Cage AC Motor
Product description
YKS series Medium Size Three Phase Asynchronous High Voltage Squirrel cage motor is suitable for poor surroundings, the site in high required protection and directly application of outdoor. The motors can drive water pump, compressor, transportation machinery and common used machinery.
YKS series motors are permitted to start at full voltage. It is not allowed to make short circuit connection on rotor winding directly, it is necessary to regulate starting torque by the way of connecting starting transform.
**The motor is design into box type construction.
**The frame is light in weight and good in rigid and is made of steel plates by melding.
**Air-water cooler is fixed at the top of frame with bolts and consists outside wind circuit in secondary cooling with water pump and water pool for motor, the primary cooling circulation is consisted of fan, cooler inside motor.
**The primary cooling medium (air) can complete the heat exchange with secondary cooling medium in cooling pipe (circulation water) through outside surface of pipe in the cooler as well as spring etc. heat transfer conductor.
**The rotor winding of YKS series motor is made of aluminum casting or copper bar.
| No. | Squirrel-cage motor | Y | YKK | YKS | Y2 |
| Slip-ring motor | YR | YRKK | YRKS | / |
| 1 | Structure | Box-type construction, made up of steel plates welded with each other | Compact struction |
| 2 | Cooling method | IC01 or (IC11, IC21, IC31) | IC611 or IC616 | IC81W | IC411 |
| 3 | Natural ventilation, with top mounted protection cover | With top mounted air-air cooler | With top mounted air-water cooler | |
| 4 | Protection type | IP23 | IP44 or IP54 | IP44 or IP54 | IP54 |
| 5 | Insulation | F |
| 6 | Mounting arrangement | IMB3 |
| 7 | Voltage available | 3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv |
| 8 | Frequency available | 50Hz , 60Hz |
Packaging & Shipping
Plywood case package or in nude package ( for very large motors).
For delivery, generally by sea transportation. However, we can also quote for other solution in accordance with customers' requirements.
Company information
China Electric (Shanghai) Co., Limited is established since 1960s. We located in Shanghai - the most important international financial and business center of China. We have employees more than 1000. Our factory is about 30,000~50,000 square meters. We have passed ISO 9001:2000 Management Certification. All our products passed CE Certificate for European Union, UL and CSA Certificate for North America, GOST Certificate for Russia and SONCAP Certificate for Nigeria.
We have always been committed to technological innovation for various requirements of our customers. As we are an integrated company with the technology, manufacturing,sales and service,we can offer clients professional traning before sales, and considerate after sales services.It is our wish that to provide the best products and services so that we can creat more values to our customers.
Our service
We can provide the layout design of your factory, the technical specification of the auxiliary facilities,etc.
Our factory is always available for your visiting. And we are glad to take you to see the work site in our customers' factories.
Engeneers are available to serve the mechines overseas.
Quality assurance: 12 months except furnace and consumable parts (after commissioning).
