High Quality 12kv Current Transformer (LZZBJ9-12/150b/2)

Name: High Quality 12kv Current Transformer (LZZBJ9-12/150b/2)
Brand: all-electronics-online.com
SKU: 698047505
Availability: InStock
Rating: 4.9 (67 reviews)

Price:	US $ 10.8/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZBJ9-12/150b/2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50Hz
Primary Current:	10A---1250A
Safe Factor:	Fs5
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

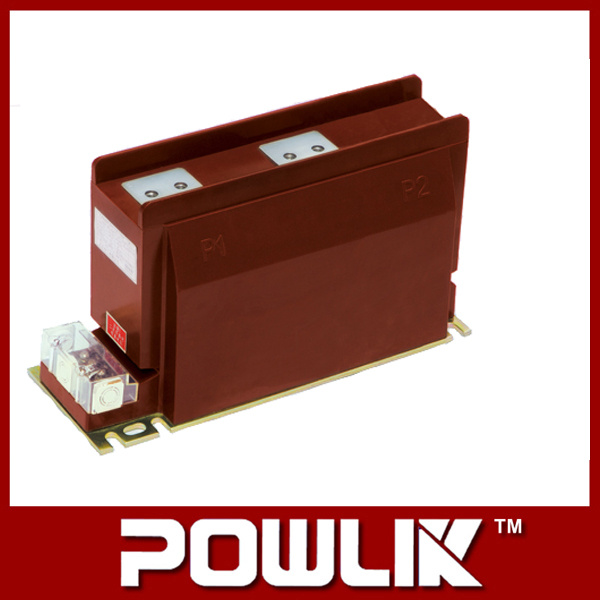

12KV Current Transformer (LZZBJ9-12/150b/2)

This series are used for current and electric energy measurement, relay protection, in the power system with rated frequency of 50Hz or 60Hz, rated voltage of 10KV.
This series are fully enclosed structure molded by electrical special epoxy, with excellent insulation and eletrical performence, moisture resistance. The series are compact in structure, small and light, long in creep distance and easy to clean. There is a junction box on secondary wiring. And the 8 mounting holes in the bottom are for installation.

Type	Rated primary currentI1n(A)	Accuracy classes combinaton	Rated output (VA)				Rated short-time thermal current (kA/S)	Rated dynamic current(kA)
Type	Rated primary currentI1n(A)	Accuracy classes combinaton	0.2(S)	0.5	5P1010P10	5P1510P15	Rated short-time thermal current (kA/S)	Rated dynamic current(kA)
LZZBJ9-12/150b/2	10	0.2(S)/0.5 0.2(S)/10P10 0.2(S)/5P10 0.2(S)/10P15 0.2(S)/5P15 0.5/10P10 0.5/5P10 0.5/10P15 0.5/5P15	10	15	20	15	1	2.5
	15						1.5	3.75
	20						2	5
	30						3	7.5
	40						4	10
	50						6	15
	60						6	15
	75						10	25
	100						15	37.5
	150						22.5	56
	200						31.5	80
	250						31.5	80
	300						45	112.5
	400						45	112.5
	500						63	130
	600						63	130
	750(800)						80	160
	1000						80	160
	1250(1200)						100	160
