High Quality 12V 65ah Rechargeable Battery for Power System

High Quality 12V 65ah Rechargeable Battery for Power System
Price: US $ 65.3-77.6/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union,Money Gram
Prod Model: WHC65AH-12V
Name: High Quality 12V 65ah Rechargeable Battery
Keyword: 12V 65ah Battery, Power System
Capacity: 65ah
Maintenance Type: Free
Weight: 17kg
Warranty: 3years
Package: Standard Package
Proof: Waterproof&Leakproof
Material: ABS
Brand Name: Whc
Type: Colloid
Usage: Lighting
Nominal Voltage: 12V
Discharge Rate: High Discharge Rate
Shape: Square Battery
Rechargeable: Chargeable
Electrolyte: Colloform

Product Description

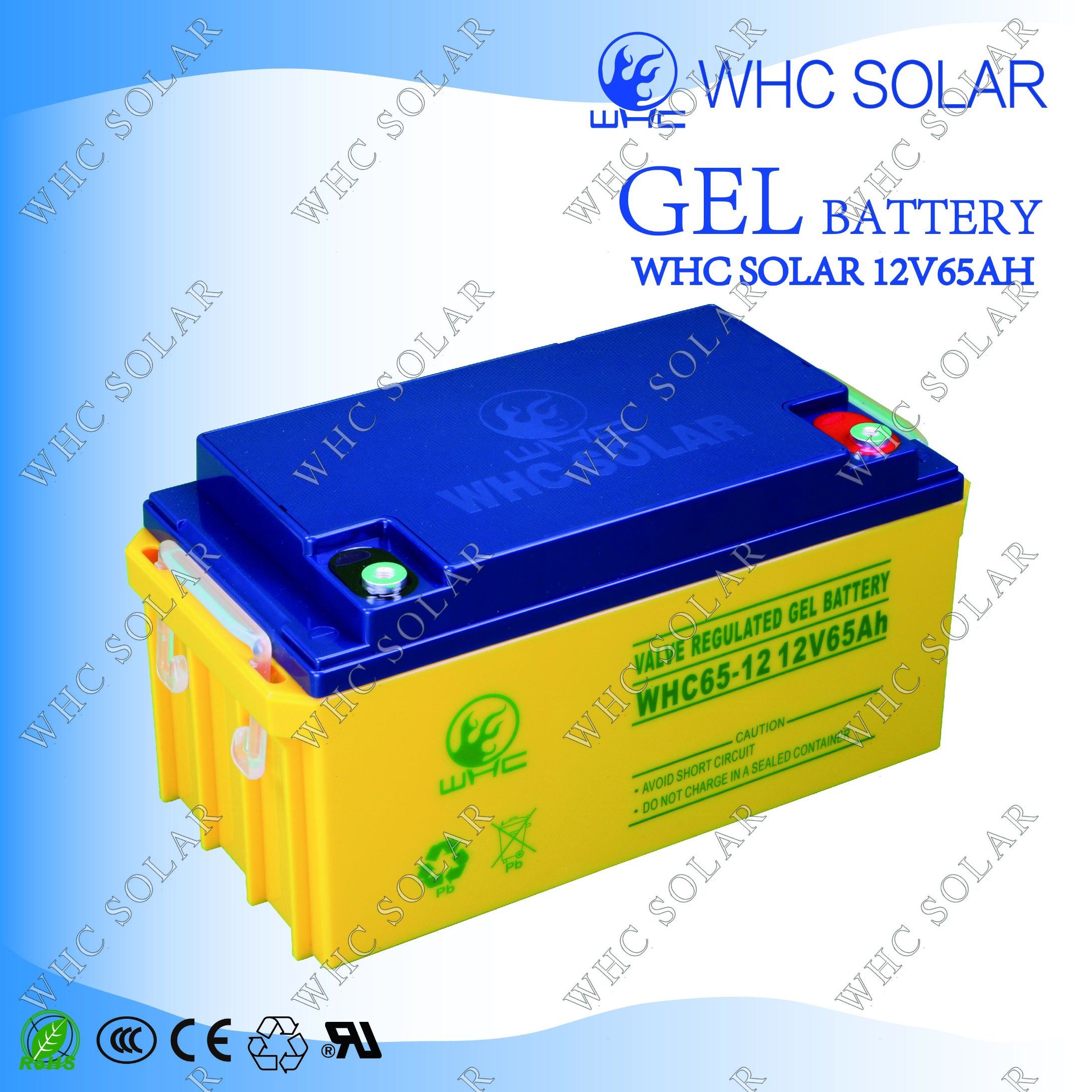

High Quality 12V 65ah Rechargeable Battery for Power System

performance characteristic

1) Efficiency greater than 99.9%.

2) Minimal self-discharge.
3) low water loss.
4) design life of 12 years or more, to save expenses.
5) deep discharge cycle performance, life expectancy more than 500 times.
6) over discharge after the restoration of performance.
7) for a wide range of environment: -40 ºC -60 ºC temperature range of use.

Product Parameters
MODELWHC65-12WHC100-12WHC150-12WHC200-12
Rated Capacity
 (10hour Rate)
65AH100AH150AH200AH

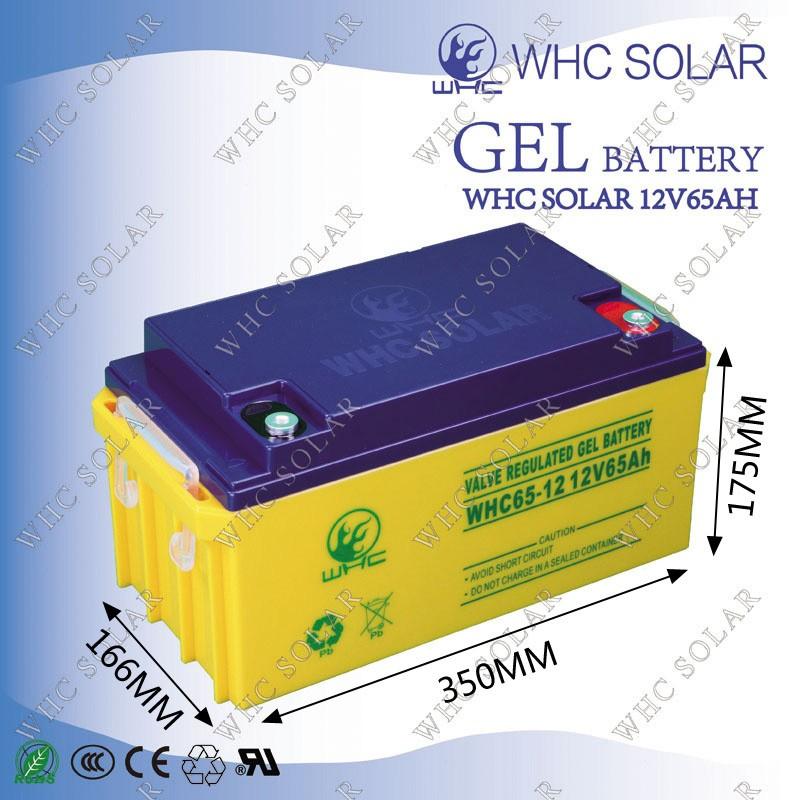

Dimensions350*166*175mm407*173*210mm485*170*242mm522x240x220mm
Weight17KG28KG39KG53KG
Characteristics
Capacity
25ºC(77ºF)
10hourrate
(10.0A)
65AH10hourrate
(10.0A)
100AH10hourrate
(10.0A)
150AH10hourrate
(10.0A)
200AH
5hour rate
(16.0A)
55AH5hour rate
(16.0A)
80AH5hour rate
(16.0A)
120AH5hour rate
(16.0A)
160AH
1hour rate
(60A)
45AH1hour rate
(60A)
60AH1hour rate
(60A)
90AH1hour rate
(60A)
120AH
1.5hour discharge
to 10.5V
35AH1.5hour
discharge

to 10.5V
40AH1.5hour
discharge

to 10.5V
60AH1.5hour
discharge

to 10.5V
80AH
Charge
(Constant Voltage)
Initial charging current less than 15A Voltage
14.4-14.8V
(14-16 hours)
cycleInitial charging current less than 15A Voltage
14.4-14.8V
(14-16 hours)
cycleInitial charging current less than 15A Voltage
14.4-14.8V
(14-16 hours)
cycleInitial charging current less than 15A Voltage
14.4-14.8V
(14-16 hours)
cycle
Float13.5-13.8V


Capacity
affected by
temperature
(10 hourrate)




40ºC104ºF102%
25ºC77ºF100%
0ºC32ºF85%
-15ºC5ºF65%
Self-Discharge
at 25ºC77ºF
Capacity after 3 month storage91%
Capacity after 6 month storage82%
Capacity after 12 month storage64%
TerminalT10T11


Product Packing

Company Information

WHC SOLAR is confident that we can provide our clients with the highest quality micro control power inverter.We are looking forward to establishing business relations with you.
Website:
www.whcsolar.cc





WHC SOLAR Technology Co., Ltd. is a collection development, production, and sales of photovoltaic tech enterprises, It's the first one in China dedicated solar home systems research and development, production and sales of photovoltaic enterprises, the company since its inception in 2005 established the quality of priority, the concept of brand management, and the use of simple, easy to maintain, reliable quality as a product design, which won a number of national patent and passed CE, RoHS, ISO9001: 2008 quality management system certification. Our main products include: Solar Power Systems, Solar Panels, Solar Controller, Solar Inverter, Solar Battery, Solar Energy kits etc. WHC SOLAR has advanced production testing equipment and strong R & D team, professional QC team and excellent business sales team. The company currently produces the vast majority of products covered by the requirements of customers on the use of solar home systems, and products in the industry with the most comprehensive and professional characteristics. Sold to: Africa, South America, India, Nepal, Cambodia, Bangladesh, Vietnam, the United States, Japan, Korea, and other countries and regions. WHC SOLAR as committed to providing customers: Reliable products, efficient service, as well as more specialized solutions. We can provide OEM & ODM, and product design and packaging services according to customer needs.
