| Prod Model: |

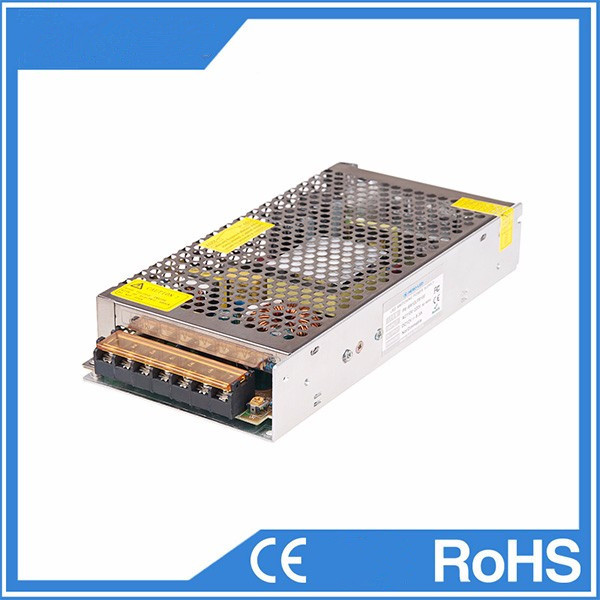

LYD-12V-8.3A |
| Working Temperature: |
-10-60 |
| Storage Temperature: |
-20-85 |
| Weight: |
0.49kg |
| Output Frequency: |
50/60Hz |
| Output Type: |
Single |
| Output Power: |
51 - 100W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Certification: |
RoHS |
Product Description
Basic Info| place of origin: | Shenzhen,China | brand name: | louita | model no.: | LYD-12V-8.3A |
| output type: | single | material: | Aluminium | dimension: | 160X97X42mm |
| weight: | 0.49kg | output frequency: | 50/60hz | | |
Product Description
Specification1.Universal AC input/Full range.
2.Protections:Short circuit/overload/over voltage/over temperature.
3.Cooling by free air convection.
4.LED indicator to power on.
5.100% full load bum-in test.
6.No load power consumption<0.5w
7.All using 105°C long lif electrolytic capacitors.
8.Withstand 300VAC surge input for 5 second.
9.High operating temperature up to 70°C
10.Withstand 5G vibration test.
11.High efficiency ,long life and high reliablity.
12. 3 years warranty.
13.Meterial: aluminium
Model LYD-100-3 LYD-100-5 LYD-100-7.5 LYD-100-12 LYD-100-15 LYD-100-24 LYD-100-27 LYD-100-48
DC Voltage 3V 5V 7.5V 12V 15V 24V 27V 48V
Rated current 20A 20A 13.6A 8.3A 6.7A 4.2A 3.7A 2A
Current range 0-20A 0-20A 0-13.6A 0-8.3A 0-6.7A 0-4.2A 0-3.7A 0-2A
DC power 60W 100W 100W 100W 100W 100W 100W 100W
Voltage ADJ.range±10% +10,-5% ±10% ±10% ±10% ±10% ±10% ±10%
Voltage tolerance ±2% ±2% ±1% ±1% ±1% ±1% ±1% ±1%
Ripple and noise 70mVp-p 70mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p
Intet stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load stability ±1% ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
INPUT
AC voltage range 85~132VAC/170~264VAC selected by switch 47~63Hz;240~370VDC
Current 1.3A/115V 0.65/230V
Effi ciency 77% 81% 82% 82%
AC Inrush current Cold-start current 18A/115V 36A/230V
Leakage current < 0.5mA/240VAC
PROTECTION
Overload 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
Over voltage 115%~135%
5.75~6.75 13.8~16.2V 27.6~32.4V 55.2~64.81
ENVIRONMENT
Temperature coeffi cient ±0.03%/°C (0~50°C )
Working temperature and humidity -10°C ~+60°C,20%~90%RH
Store temperature and humidity -20°C ~+85°C,10%~95%RH
Overall dimension 160×97×42mm 40PCS/CARTON
SAFETY
Setup,rise,hold up time
200ms,100ms,30ms
Vibration 10~500Hz,2G 10min,/1 cycle
Withstand voltage Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc
Isolation resistance Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
STANDARD
Safety standards Meet UL1012 requirement(Not qpply for the mark)
EMC standards ......
OTHERS
Weight: 0.50Kg
Packing: According to your order,we can provide different cartons for you.
NOTE:
1.The testing condition for the paramenter above is ,230VAC input,rated load,25°C70% RH.Humidity.
2.Error.include the setting error,line stability and load stability.(Note:5).
3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting.
4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.
5.Load stability test:the load is from 0% to 100%.
