Ningbo Best Group Co., Limited >> High Quality 16mm 40kHz Car Detection Ultrasonic Sensor

High Quality 16mm 40kHz Car Detection Ultrasonic Sensor

High Quality 16mm 40kHz Car Detection Ultrasonic Sensor
Price: US $ 2/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FBULS1612A
Place Of Origin: Zhejiang, China (Mainland)
Model Number: Fbuls1612A
Output: Digital Sensor
Resolution: About 1 Cm
Detecting Range: 25cm to 8m
Supply Voltage: DC5V
Working Current: 6-12mA
Ultrasonic Frequency: 40kHz
Working Temperature: -10-50

Product Description

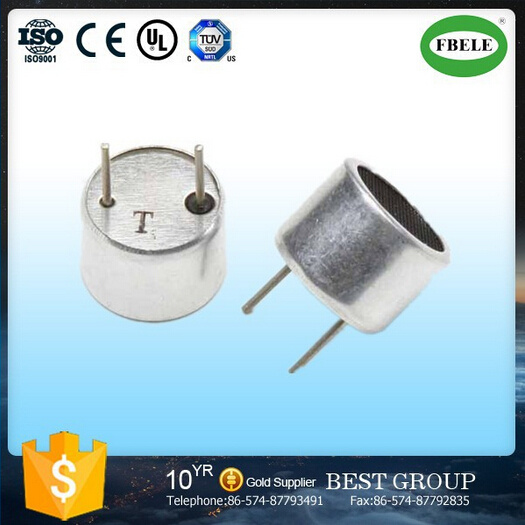

Ultrasonic sensor

Center Frequency:40.0±1.0Khz

Bandwidt(-6dB)  F.O.M.:1.2Khz

Transmitting sound Pressure Level:120dB min.

Receiving Sensitivity:-63dB min.

Nominal Impedance(Ohm):900

Ringing:1.5ms max.

Capacitance:2100pF

Max.Driving Voltage:120Vp-p

Total Beam Angle   -6dB  :  50°±10°

Operation Temperature:-30to80ºC

Storage Temperature: -40to85ºC



FBELE Company, (Ningbo Best Group Co., Ltd. ) are Chinese leading manufacturer and distributor in electronic components. We can offer quality products in very competitive price for electronics components, as well as best service, in time delivery, small order acceptable, etc.

Fast is our principle, our normal delivery time as below:
Sample delivery date is: 1-3days.
Production delivery time: 7-10days.
New product development: 15-20days

Our Company Advantage:
1, Reliability production
2, Famouse Brand "FBELE", Best Reputation
3, well experienced R&D engineer
4, Effective working Team
5, Aggressive Price
6, Constant New products
Don't hesitate, E-mail us immediately now.
you will get your best solution.
Choose "FBELE", Choose Success! ! !

Established in 1997, FBELE company is Chinese leading manufacturer in acoustic components We can offer high quality products in very competitive price, as well as best service, in time delivery, small order acceptable, etc. And our products includingpiezo ceramic element, piezo buzzer, magnetic buzzer, transducer, receiver, Electret Condenser Microphone, magnetic contact. Piezo siren alarm.

Fast is our principle, our normal delivery time as below:

Sample delivery date is: 1-3days.

Production delivery time: 7-10days.

New product development: 15-20days

Our Company Advantage:

1, Reliability production

2, Famouse Brand "FBELE", Best Reputation

3, well experienced R&D engineer

4, Effective working Team

5, Aggressive Price

6, Constant New products

· Research and Develop

1. Constant development of new products as technology changes.

2. Intensify the products function; Develop the stable and high affixation value of our products.

3. Having knowledge of customers' requirement, and shorten the development cycle.

4. Establish team work of the application, trend guide, and develop new projects with customers' preference. Provide a solution for all requirements requested by customers with extreme efforts.

5. Apply ourselves with high advanced technology, and shorten the research and production cycle.

· Core Technology

1. Piezo element: We have the most advanced production line in all of China. Our format, which is imported from Japan, is able to create thinness of 0.05mm with 15mm diameter.

2. Diaphragm design and manufacturing technology of our speaker and receiver.

3. Insert Molding design technology.

4. We have software engineers, able to create programs for different sound and products with our own technology.

Don't hesitate, E-mail us immediately now.

You will get your best solution.
