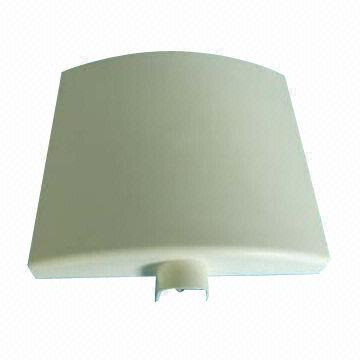

High Quality 2.4GHz 16dBi Panel WiFi Antenna

Prod Model:	JCP24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gain:	16
Usage:	Communication Antenna
Operating Wavelength:	Microwave
VSWR:	<1.5

Product Description

Features High Gain H or V Polarization Full day for working Durable, corrosion resistance Optimized dimension Application GSM/CDMA/PCS/3G/WLAN System Sector signal coverage Base station &Repeater station system Wireless telecommunication & Data transmission system JCP-800-2500-12 Electric Specifications Frequency rang 806~960 1710~2000 2200~2500 Polarization Vertical Gain(dBi) 10.5 12 16 Beamwidth(0° ) H: 65 V: 60 H: 65 V: 38 H: 65 V: 30 F/B ratio(dB) ≥ 25 ≥ 25 Input Impedance(Ω ) 50 VSWR ≤ 1.5 ≤ 1.5 Max power(W) 400 200 Mechanical Specifications Connector model N Female Antenna size (mm) 650*280*80 Packing size(mm) 670*360*110 Antenna weight (kg) 5 Radome material UPVC Radome color Gray Mechanical tilt(° ) 0~10 Working Temperatu(° C) -40~60 Rated Wind Velocit(m/s) 60 Pole diamete(mm) 50~75 Jiashan Jinchang Electronics Co., Ltd. is a national high-tech enterprise, specialized in high-frequency GPS/GLONASS/GSM/WIFI antenna manufacturing, engaged in antenna industry for 28 years. The products including GPS/GLONASS antenna, 2G/3G/4G GSM antenna, WIFI/Bluetooth antenna, GPS active antenna, GPS Car antenna, won National Award for New Product, Technology Innovation Fund and National New Product Award. Currently Jinchang have 13 patents, passed TS16949, ISO9001 certification. The antennas have CE and FCC certification, comply with ROHS through SGS test. Jinchang have HP network tester, noise-figure meters, high-frequency signal generator, anechoic chamber, as well as other antenna testing equipment and facilities. Eight production lines can produce all kinds of antenna 30000pcs per day. 70% products exported to Europe and America. Nissan, Nokia, Motorola, Coca-Cola, Volkswagen, Audi, Datang, SEG and other enterprises have bulk used Jinchang's products. Our   Advantages:         1.As a national key technological innovation and R&D center and a post-        doctoral research station, the company obtains more than three million dollars national research grants annually.       2.There are 80 technical engineers, including 5 expert-level engineers and 20 chief technicians. Each year, more than 10 patented models are promoted to market.            3. Sticking to the principle of "customer first", our salesmen and technicians provide you professional services any time.
