High Quality 30W 24V Waterproof Surge Protection LED Driver

Name: High Quality 30W 24V Waterproof Surge Protection LED Driver
Brand: all-electronics-online.com
SKU: 729726742
Availability: InStock
Rating: 5 (80 reviews)

Price:	US $ 15-21/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RP-30-24
Efficiency:	90%
Output Current:	300mA
Output Voltage:	DC 12V
Warranty:	30000h
Protection:	Short Circuit/Over Load/Over Voltage
Usage:	Digital Products
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Brand:	OEM

Product Description

1. Product Description

MODEL		RP-30-24
OUTPUT	DC VOLTAGE	24V
	RATED CURRENT	1.25A
	CURRENT RANGE	0~1.25A
	RATED POWER	30W
	RIPPLE & NOISE(max).Note.2	120mVp-p
	VOLTAGE ADJ.RANGE	~
	VOLTAGE TOLERANCE Note.3	±1.0%
	LINE REGULATION Note.4	±0.5%
	LOAD REGULATION Note.5	±0.5%
	SETUP,RISE TIME	500ms,20ms/230VAC 500ms,20ms/115VAC at full load
	HOLD UP TIME(Typ.)	30ms/230VAC 25ms/115VAC at full load
INPUT	VOLTAGE RANGE	85~364VAC OR 248~373VDC
	FREQUENCY RANGE	47~63HZ
	EFFICIENCY(Typ.)	86%
	AC CURRENT(Typ.)	2A/115VAC 1.2A/230VAC
	INRUSH CURRENT(Typ.)	COLD START 36A
	LEAKAGE CURENT	<2mA/240VAC
PROTECTION	OVERLOAD	110~150% rated output power
		Protection type: C an be con tinued, recovers automatically after fault condition is removed
	OVER VOLTAGE	28~30V
		Protection type : Shut down, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.	-20~+60°C (Refer to "Derating Curve")
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP HUMIDITY	-40~+85°C 10~95%RH
	TEMPCOEFFICIENT	±0.03% /°C(0~50 °C )
	VIBRATION	10~500HZ,2G10min/1cycle,60min.each alongX,Y,Zaxes
SAFETY & EMC(Note 7)	SAFETY STANDARDS	UL60950-1, CB(IE60950-1),CCC GB4943.1:2011 approved
	WITHSTAND VOLTAGE	l/P-o/P:3KVAC; l/P-FG:2KVAC; O/P-FG:0.5KVAC
	ISOLATIONRESISTANCE	I/P-O/P, I/P-FG, O/P-FG :100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55015, FCC part 15 class B
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A
OTHERS	MTBF	320.7Khrs min MIL-HDBK-217F(25°C)
	DIMENSION	1599838mm(LWH)
	PACKING	0.55Kg; 30pcs/17.5Kg/0.97CUFT

2. More products for your reference:

4. Certificate

5. About Us:

6. FAQ

Shenzhen Rainbow Power Technology Co., Ltd is a professional manufacturer of Switching Power Supply for LED lighting projects, mechanical equipment, industrial automation, electronic technology, telecommunication, medical appliances and instrument meters etc.

Our main products: LED Driver, LED Power Supply, Switching Power Supply, LED Transformer, AC/DC Adapter etc.

We export to more than 30 countries, such as USA, Canada, Brazil, Columbia, Ecuador, Germany, France, Australia, Malaysia, HongKong, India, Egypt, Pakistan, Greece, UK and so on.

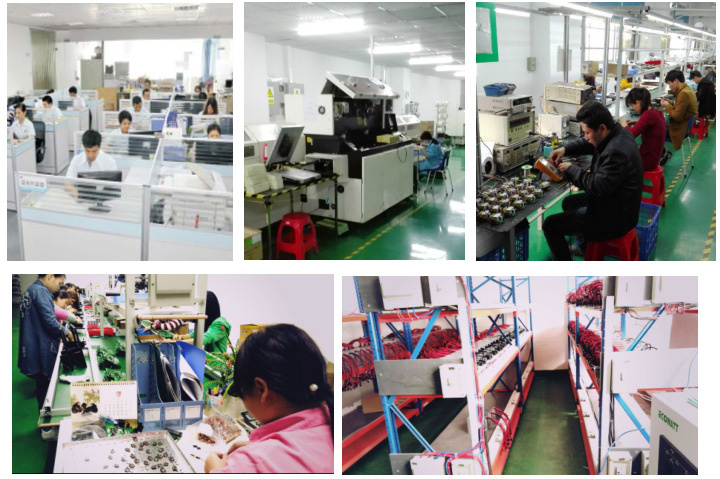

In order to ensure the stability and reliability of our products, Rainbow Power is equipped with many testing equipment for safety. Temperature, magnetic and EMI testing, automatic SMT machine and automatic solder machine etc., We have a team with well-experienced R & D Engineers then we are ready to design and produce your power supply.

Our mission is to provide Excellent quality, competitive price and more value-added service to our clients, all of these makes our core competitiveness get a far-reaching develop and prominent advance.

If you are interested in any of our products, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world.
