| Prod Model: |
S2800E |
| Markets: |
North America,South America,Southeast Asia |
| Power Rate: |
0.75-160kw |
| Voltage: |
220V/380V/660V |
| Phase: |
1 / 3 Phases |
| Size: |
Different Size |
| Weight: |
Different Weight |
| Power Range: |
220V 0.4-3.7kw;380V 0.75-1000kw;660V 11-660kw |
| Frequency Range: |
0.1-400Hz |
| Pid: |
Built in |
| Multi-Speed Function: |
8speeds |
| Adjustable Frequency: |
Stable Frequency |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
AC-DC-AC |
Product Description
High Quality 380V 0.75-1000kw AC Motor Drive with Vector ControlProduct specification
| |
S2800 E |
Input |
Rated Voltage& Frequency |
Singel phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
Votage Allowable Range |
220/380±15% |
Output |
Output Voltage Range |
1~rated input voltage |
Output Frequency Range |
0~600Hz |
Techinc |
Control Mode |
Sensorless Vector Control, V/F control |
Overload Capacity |
150% rated current in 60s; 180% rated current in 10s |
Start Torque |
0.5Hz/150% with vector senserless control |
Adjustment Ratio |
1:100 with vector senserless control |
Speed Control Accuracy |
Maximum speed ±0.5% with vector senserless control |
Carrier Frequeny |
0.5~15Hz |
Terminal |
Programmable Digital Input |
4 terminals |
Programmable Analog Input |
FIV:0~10V, FIC:0~10V or 0~20mA |
Coupling Output |
1 set |
Relay Output |
1 set |
Analog Output |
1 set-option of 4~20mA/ 0~10V |
Function |
Frequency Setting |
Digital, Analog, Series communication, Multi-Speed, PID,
etc |
PID Function |
Built in |
Multi-speed Function |
8 speeds |
Adjustable frequency |
Stable frequency |
Off Power |
Keep running in power off instantly |
Jog Key Function |
Multi-function setting by Users |
Voltage Adjustment |
Auto maintain output voltage stable in changing of power |
Failure Protection |
25 types of failure protection: over current, over voltage
, low voltage,
over heat, short phase, over load, etc, |
Place of OriginFujian, China (Mainland)
Brand Name Machtric
Model Number S2800E
Output Power 0.75kw-160kw
Output TypeTriple
Input Voltage: 380V
Output Voltage: 380V
Type AC-DC-AC
Output Frequency 0.01-600.0Hz
AC DRIVE, S2800E SERIES, GENERAL USED AC DRIVE, FREQUENCY CONVERTER, VARIABLE VOLTAGE VARIABLE FREQUENCY DRIVE
AC Transducer, AC FREQUENCY INVERTER, VVVF, VSD
ADVANTAGE OF PRODUCTS:
- Monthly production capacity more than 10000 units.
- Customized specification is accepted.
- implement strict quality testing and control procedure to make superior quality.
- Delivery: 3-7 days after payment
- Certification:ISO 9001,ISO14001,OHSAS18001 & CE
Company Advantage:
- 10 years OEM/ODM Experience
- Manufacture in this field for almost 20 years experience.
- Reasonable price and punctual delivery time
- 70 R & D personnel have many years experience
- Received the National Invention Award

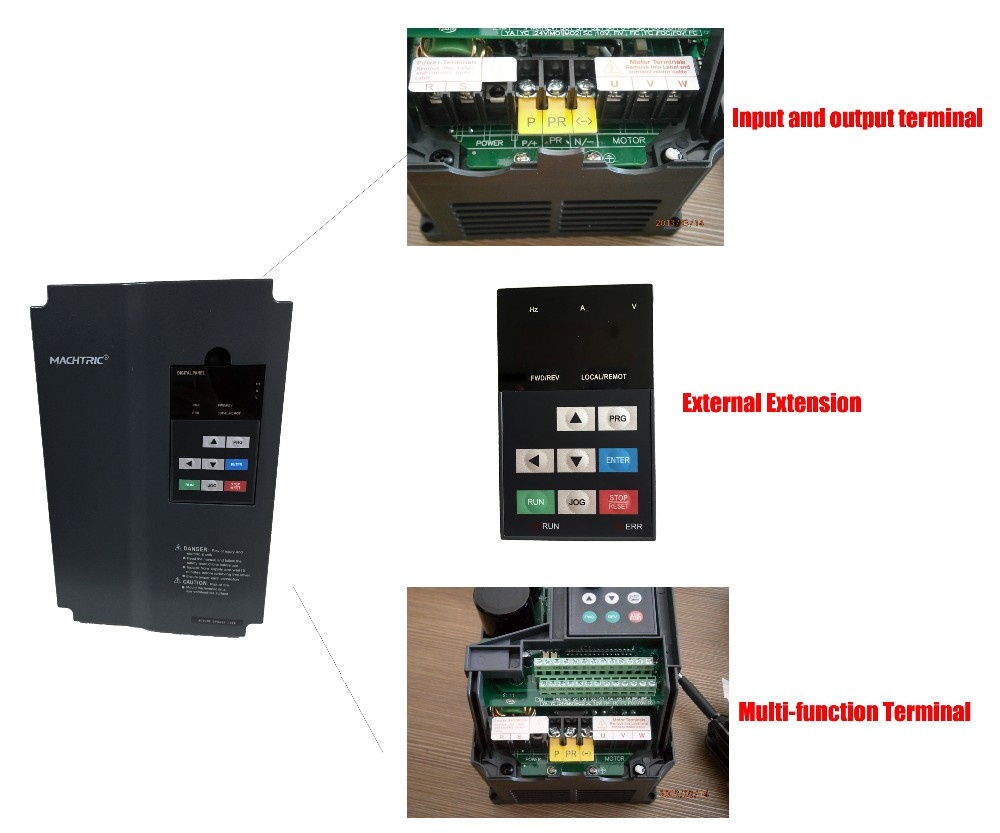

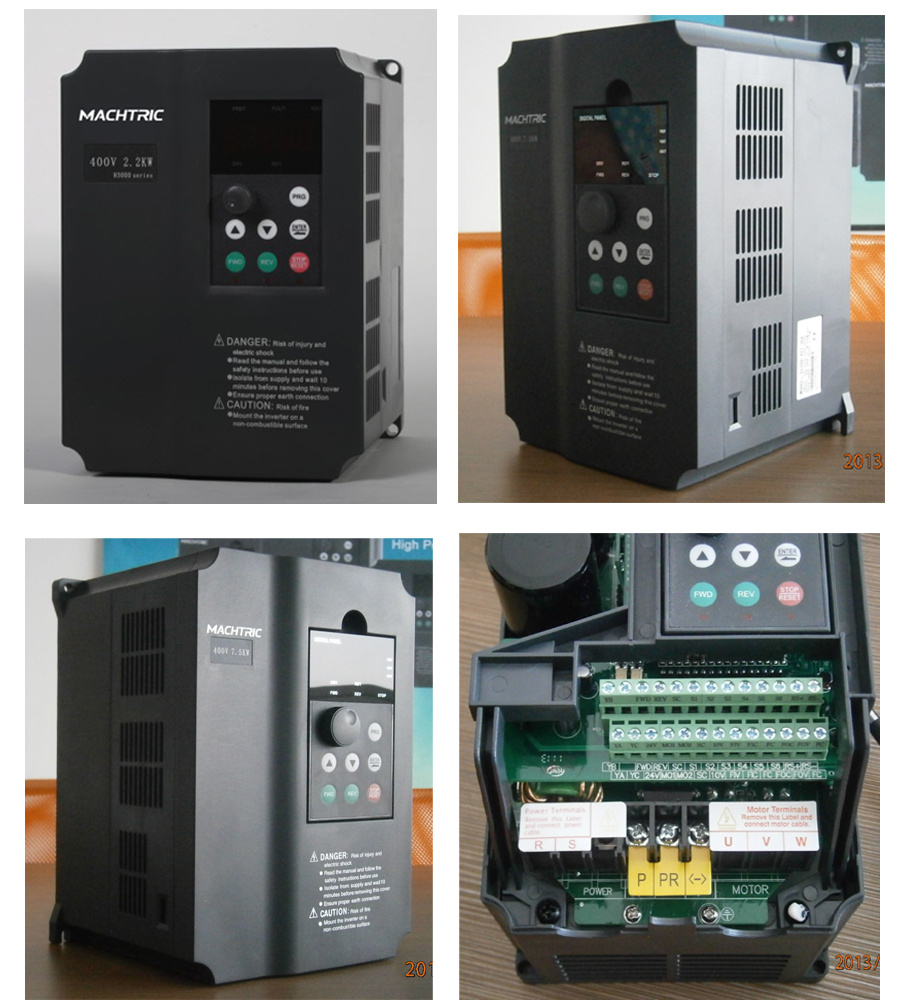

Product Detail
