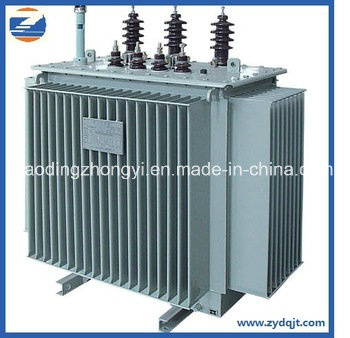

High Quality 380V Distribution Transformer
| Price: |
US $ 1300-7800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
S11 |
| Frequency: |
50 or 60Hz Optional |
| Name: |
High Quality 380V Distribution Transformer |
| Standard: |
IEC60076 |
| Rated Capacity: |
30kVA to 1600kVA |
| Rated Voltage: |
10kv |
| Input Voltage: |
6kv, 6.3kv, 10kv, 10.5kv |
| Output Voltage: |
0.4kv, 0.38kv |
| Connection Group Symbol: |
Yyn0, Dyn11 |
| Color: |
Grey B05 or Optional |
| Tapping Ranges Of High Voltage: |
5%, 2*2.5% |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Auto-transformer |
| Brand: |
Zhongyi |
Product Description
High Quality 380V Distribution TransformerProduct introductionS11 series transformer is one kind of low loss copper winding product. It adopts high quality material, especially applying the new technology and new material to the insulation of the coil and transformer body, thus the no-load and the load loss are obviously reduced, the performance and structure are more reliable and superior.
1. Primary Voltage: 11kV. 22kV.33kV
2. Second Voktage: 0.4kv
3. Tapping Range: ± 5%, ± 2× 2.5%
4. Frequency: 50Hz; 60Hz
5. Connection Sign: Yyn0, Dyn11 or othersProduct features1.Good Economic Performance
2.Long Service Life
3.High Operational Reliability
4.Small Installation AreaTechnical Specifications
Model No. | Voltage Combination | Connection Group Symbol
| No-load Loss | Load Loss | Impedance Voltage (%) | No-load Current(%) | Length L(mm) | Width W (mm) | Height H(mm) | Body Weight(Kg) | Oil Weight(Kg) | Total Weight
(Kg) |
| High Voltage | Tapping Range of High Voltage | Low Voltage |
| S11-30/10 |
6
6.3
10
10.5 |
±5%
±2×2.5% |
0.4 |
Yyn0(or) Dyn11
| 0.1 | 0.6 |
4.0
| 2.8 | 980 | 735 | 1145 | 178 | 78 | 355 |
| S11-50/10 | 0.13 | 0.87 | 2.5 | 1017 | 758 | 1205 | 240 | 92 | 415 |
| S11-63/10 | 0.15 | 1.04 | 2.4 | 1035 | 785 | 1285 | 285 | 105 | 505 |
| S11-80/10 | 0.18 | 1.25 | 2.2 | 1065 | 800 | 1290 | 330 | 110 | 540 |
| S11-100/10 | 0.2 | 1.5 | 2.1 | 1072 | 820 | 1305 | 345 | 116 | 590 |
| S11-125/10 | 0.24 | 1.8 | 2.0 | 1155 | 1105 | 1310 | 415 | 135 | 705 |
| S11-160/10 | 0.28 | 2.2 | 1.9 | 1235 | 850 | 1535 | 485 | 155 | 835 |
| S11-200/10 | 0.34 | 2.6 | 1.8 | 1282 | 860 | 1557 | 582 | 168 | 965 |
| S11-250/10 | 0.4 | 3.05 | 1.7 | 1310 | 940 | 1605 | 695 | 210 | 1135 |
| S11-315/10 | 0.48 | 3.65 | 1.6 | 1465 | 1120 | 1915 | 855 | 255 | 1520 |
| S11-400/10 | 0.57 | 4.3 | 1.5 | 1440 | 1165 | 1725 | 950 | 295 | 1590 |
| S11-500/10 | 0.68 | 5.15 | 1.4 | 1510 | 1250 | 1845 | 1150 | 320 | 1905 |
| S11-630/10 | 0.81 | 6.2 | 1.3 | 1650 | 1140 | 1920 | 1500 | 435 | 2015 |
| S11-800/10 | 0.98 | 7.5 |
4.5 | 1.2 | 2125 | 1175 | 2315 | 1910 | 760 | 3510 |
| S11-1000/10 | 1.15 | 10.3 | 1.1 | 2150 | 1380 | 2570 | 2125 | 880 | 3850 |
| S11-1250/10 | 1.36 | 12.0 | 1.0 | 2355 | 1485 | 2570 | 2605 | 960 | 4610 |
| S11-1600/10 | 1.64 | 14.5 | 0.9 | 2335 | 1750 | 2630 | 3125 | 1150 | 5420 |
Detailed images
Packing & DeliveryPackaging Details:1, Wrapped with plastic film.
2, Fixed in a wooden case.
3, Wooden case on a pallet.
Delivery:
Will be deliveryed 10-20 days after payment according to the order quantities.
Our Company
Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
The company mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standard.

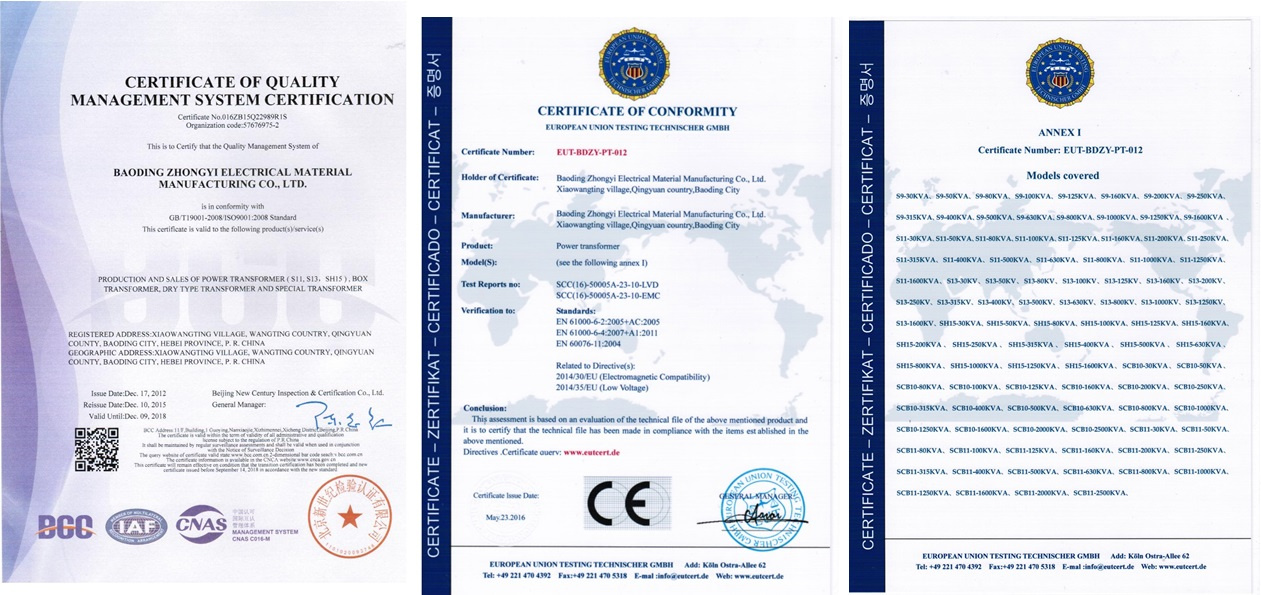

Certification
Contact details:
Baoding Zhongyi Electric Material Manufacturing Co., Ltd.
Address: Baiyangdian Science and Technology City, Baoding, Hebei Province
Post Code:071100
Tel: 0312-5938898
Fax:0312-5938898
Website: www.zydqjt.com
Line:008615930223027
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.
The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
