High Quality 50 Ohm 8d-Fb Coaxial Cable (CE/RoHS Approval)

Name: High Quality 50 Ohm 8d-Fb Coaxial Cable (CE/RoHS Approval)
Brand: all-electronics-online.com
SKU: 643668065
Availability: InStock
Rating: 4.6 (147 reviews)

Price:	US $ 0.15-0.37KM
Trade Terms:	FOB,CFR,CIF
Min Order:	30KM
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	8D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Center Conductor:	2.80mm Bc/CCA
Dielectric:	7.80mm Foam PE
Shielding:	Al Foil+Tc Braiding
Coverage:	85%
Jacket:	11.10mm PVC/PE
Impedance:	50 Ohm
Sample:	Free
Delivery Time:	15-20 Days
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable
Model:	8d-Fb

Product Description

1.Detailed Description
1. Inner Conductor: CU, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: Bonded, Non-bonded, Single, Double
4. Braid wire material: CU, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.15mm, 0.16mm
6. Braid net: 48, 64, 72, 80, 96, 128 and more
7. Braid coverage: 40%, 50%, 60%, 80%, 90% and more
8. Jacket: PE/PVC
9. Jacket degree: 60, 65, 68, 70,75
10. Customized requirement welcomed.

Construction
Center Conductor	2.80mm Solid Copper
Dielectric	7.80±0.02mm Foam PE
Shield	Bonded Al Foil
Braid Coverage	85%:16X5X0.16mmTinned Copper
Jacket	8.80±0.10mmPVC
Jacket Thickness	0.80mm
Characteristics
Inner Conductor Resistance	2.86chm/km
Dielectric Withstand Voltage	1000ACV/min
Impedance	50±2 Ohm
Capacitance	85±3nF/km(Nom.)
Echo Loss	VHF:20dB
Echo Loss	UHF:18dB
Attenuation [@68°F.(20ºC.)]
Freqiemcy(MHz)	Nom.(dB/100M.)
50	3.00
100	4.07
200	5.65
400	8.29
900	13.00
1000	13.70
1500	18.30
2000	22.30

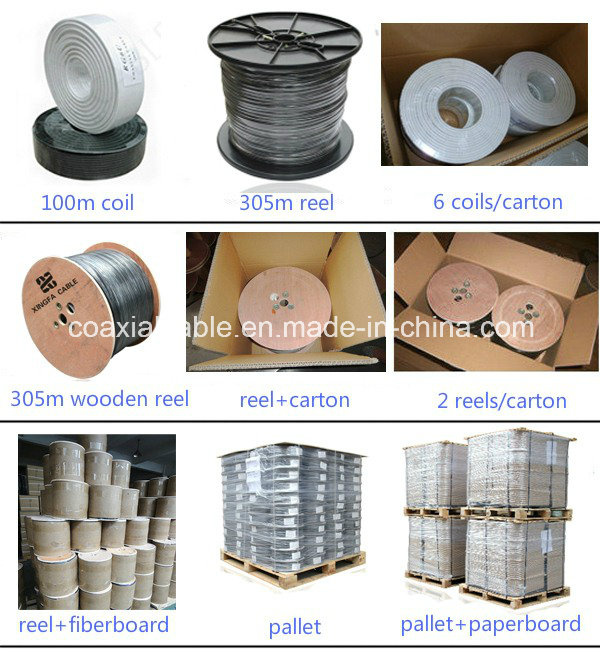

3. Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll.
Other lengths available according to client's Request;
2) Inner packing: Wooden reel, plastic reel.
3) Outer packing: Carton box, pull box, pallet.
4) Other packing available according to client's Request.

About US
We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.

We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.

Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.

We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.

Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.

"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
