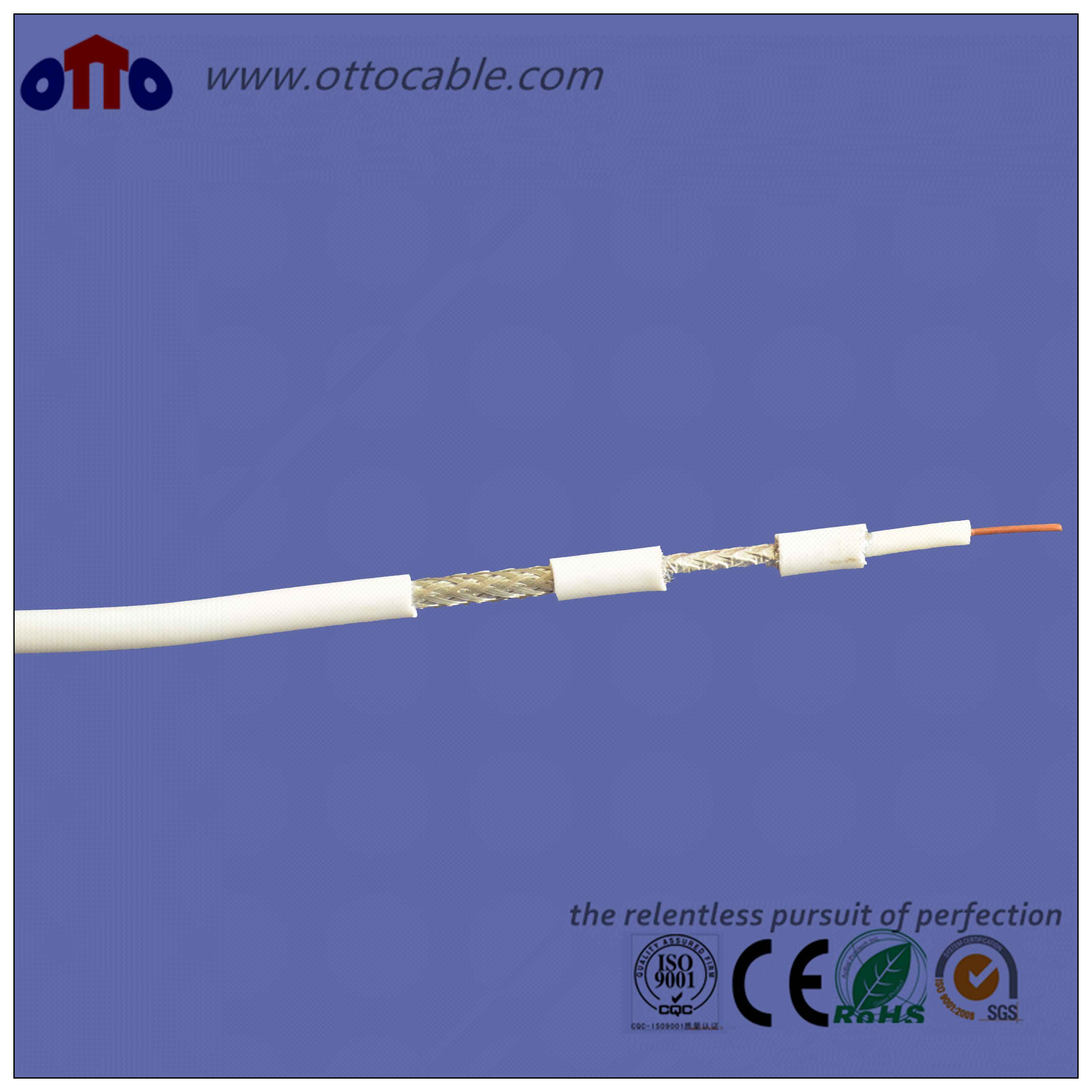

High Quality 50 Ohm Coaxial Cable (LMR200)

Name: High Quality 50 Ohm Coaxial Cable (LMR200)
Brand: all-electronics-online.com
SKU: 765969395
Availability: InStock
Rating: 4.8 (98 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	LMR200 Coaxial Cable
Inner Conductor:	1.12 Bc
Dielectric:	2.95 Foam PE
First Shield:	3.07 Bonded Aluminum Foil
Second Shield:	3.66 Tc Wire Braid
Jacket:	4.95 PVC/LSZH/PE
Application:	RF Cable
Certification:	RoHS
Conductor Material:	3.66tc Wire Braid
Cover Material:	4.95 PVC/PE/LSZH
Type:	Coaxial
Wire Core Material:	Copper Clad Steel
Model:	LMR200
Brand:	Ottocable

Product Description

LMR200

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Dielectric First Shield Second Shield Jacket	Bare Copper Foam PE Bonded Aluminum Foil TC Wire Braid PVC/PE/LSZH	1.12 2.95 3.07 3.66 4.95	Per customer's requirements: Out conductor could be 96,112 or 128 TC wires braiding; Jacket could be PVC,PE or LSZH;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Installation Temp(ºC)
Operating Temp(ºC)

50±3
83..3
83.0
≥20
≥90
1000.0
-30 to +70
-30 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
150 220 450 900 1500 1800 2000 2500	14.41 17.49 25.08 35.86 46.64 51.26 54.23 60.94

Mainly be used in 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system.

Company Link: http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

Company Information

Certifications

Contact us

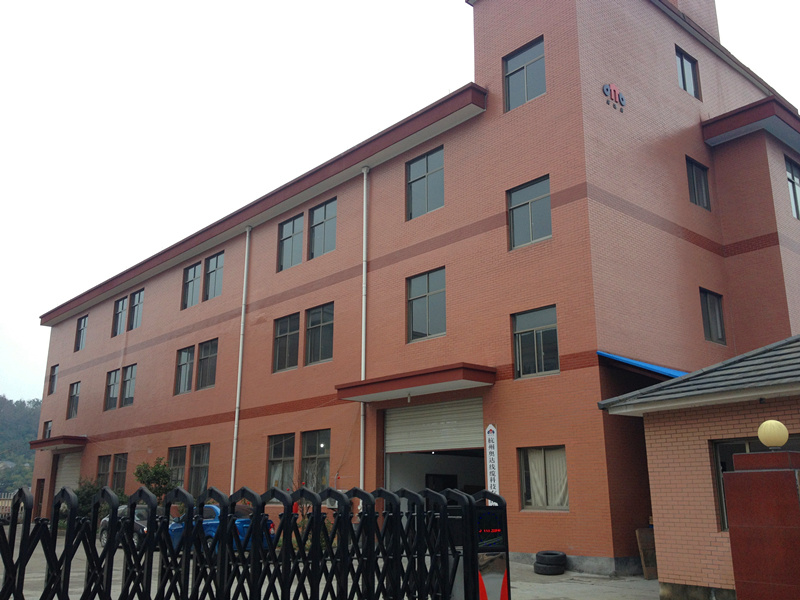

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
