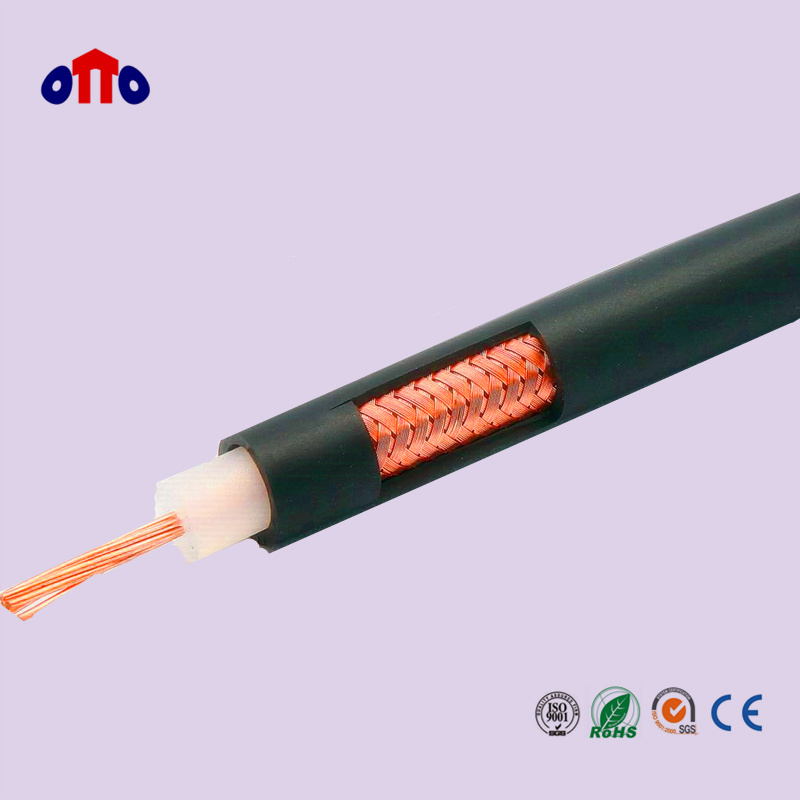

High Quality 50ohm Coaxial Cable (RG213-BC-CCA)

Name: High Quality 50ohm Coaxial Cable (RG213-BC-CCA)
Brand: all-electronics-online.com
SKU: 766140105
Availability: InStock
Rating: 4.4 (139 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG213-BC-CCA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	Rg213-Bc-CCA Coaxial Cable
Inner Conductor:	7*0.75 Bc
Dielectric:	7.24 Solid PE
Shield:	7.90 CCA Wire Braid
Jacket:	10.30 PVC/TPE/TPU
Jacket Color:	as Per Request
Impedance:	50ohm
Orgin Of Place:	Zhejiang, China
Application:	RF Cable
Certification:	RoHS
Conductor Material:	CCA Wire Braid
Cover Material:	PVC/TPE/TPU
Type:	Coaxial
Model:	Rg213-Bc-CCA
Brand:	Ottocable

Product Description

RG MIL-C-17 Coax Cable

RG213-BC-CCA

Construction

	Material	Diameter(mm)	Remarks
Inner Conductor Insulation Out conductor Jacket	Bare Copper Solid PE CCA wire Braid PVC/TPE/TPU	7*0.75 7.24 7.90 10.30	Per customer's requirements: Out conductor could be 144,168,192 or 216 CCA wires braiding; Jacket could be PVC,TPE or TPU;

Electrical Characteristics

Capacitance (pF/m)
Impedance (Ω)
Velocity of Propagation (%)
Max Operating Frequency (MHz)
Max Operating Voltage(VRMS)
Inner Conductor Resistance (Ω/kM)
Return Loss (dB)
Operating Temperature(0C)

101.0
50.0
66.0
2000
1500.0
130
20
-30 to +70

Attenuation [@68oF (20oC)]

Frequency(MHz)		Max Attenuation (dB/100m)
100 400 1000 3000		7.0 15.5 26.5 52.0

More Ideas
1)  If require conventional construction and materials, please click RG213;
2)  If require lightweight and lower price,you can choose RG213-BC-CCA ;
3)  If require better attenuation,you can choose 7D-FB or FLMR400;
4)  For more RG213 assemblies,you can choose RG213 ASSEMBLIES;
5)  Any other requirements or queries, please click CONTACT US.

Company Link:     http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

Company Information

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
