High Quality 50ohm RF Coaxial Cable (LMR-240)

Name: High Quality 50ohm RF Coaxial Cable (LMR-240)
Brand: all-electronics-online.com
SKU: 619756082
Availability: InStock
Rating: 4.8 (104 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR240
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	LMR240 RF Coaxial Cable
Inner Conductor:	1.42 Bc/CCS
Dielectric:	3.81 Foam PE
First Shield:	3.94 Bonded Aluminum Foil
Second Shield:	4.52 Tinned Copper Wire Braid
Jacket:	6.10 PVC/PE
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Tinned Copper Wire Braid
Cover Material:	PVC/PE
Type:	Coaxial
Wire Core Material:	Bc/CCS
Model:	LMR240
Brand:	Ottocable

Product Description

LMR240

Overview
This is a coaxial cable with foam insulation. It has a good attenuation and shielding effectiveness.It has been widely applied to radio transmission,base radio antenna station and other communication systems.

Features
·         50 Ohm data signal transmission;
·         The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
·         Excellent performance in high frequency,VSWR stability;
·         Similar to the 4D-FB coaxial cable;
·         RoHS compliant;
Assemblies & Application
These 50 Ohm 240 series coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.As a substitute for RG58 coaxial cable, these versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.

RF Coaxial Cable(fLMR240)
Construction
Item	Material	Diameter(Inch/mm)
Inner Conductor	Bare Copper/CCS	0.056	1.42
Dielectric	Foam PE	0.150	3.81
First Shield	Bonded Aluminum Foil	0.155	3.94
Second Shield	Tinned Copper Wire Braid	0.178	4.52
Jacket	PVC/PE	0.240	6.10

Electrical Characteristics
Impedance(Ω)		50±3
Capacitance(pF/m)		79.4
Velocity of Propagation(%)		84.0
Return Loss		≥20
Screening Effectiveness		≥90

Application
Mainly be used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system.

More Ideas
1)  If require conventional construction and materials, please click FLMR240;
2)  If require good flexibility,please click LMR240-UF;
3)  If require lightweight and weldable shield,please click LMR240-CCS-TCCA;
4)  If require lightweight and lower price,please click LMR240-CCS-AL ;
5)  For more FLMR240 assemblies,please click FLMR240 ASSEMBLIES;
6)  Any other requirements or queries, please click CONTACT US.

Company Link:     http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

Company Information

Certifications

Contact us

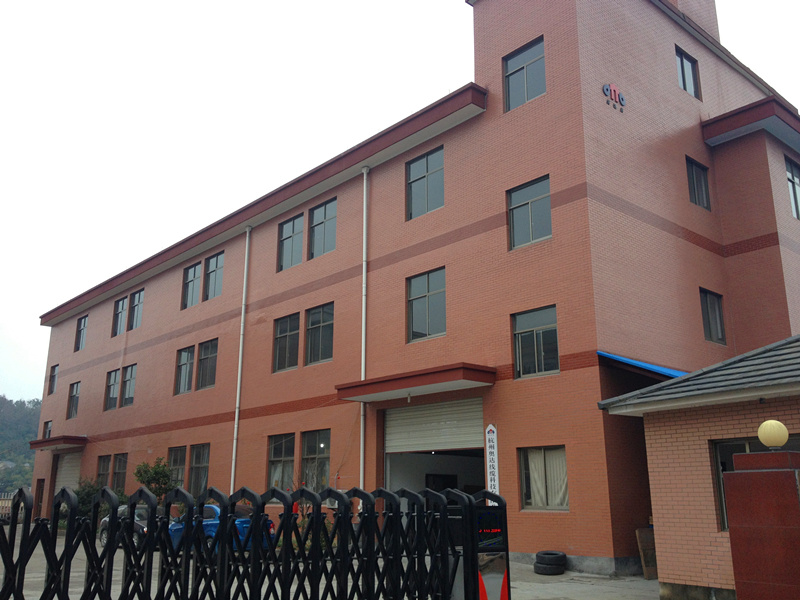

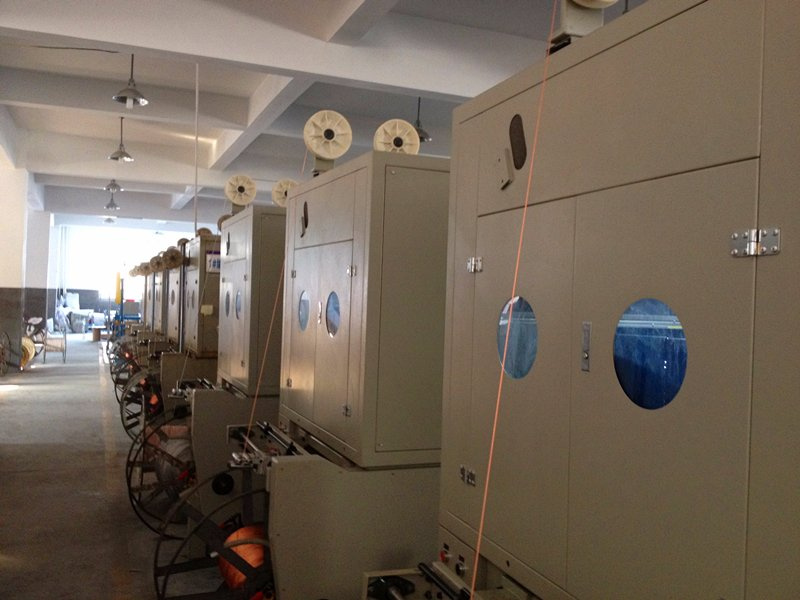

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
