High Quality 50ohms Cable Coaxial Cable Rg214

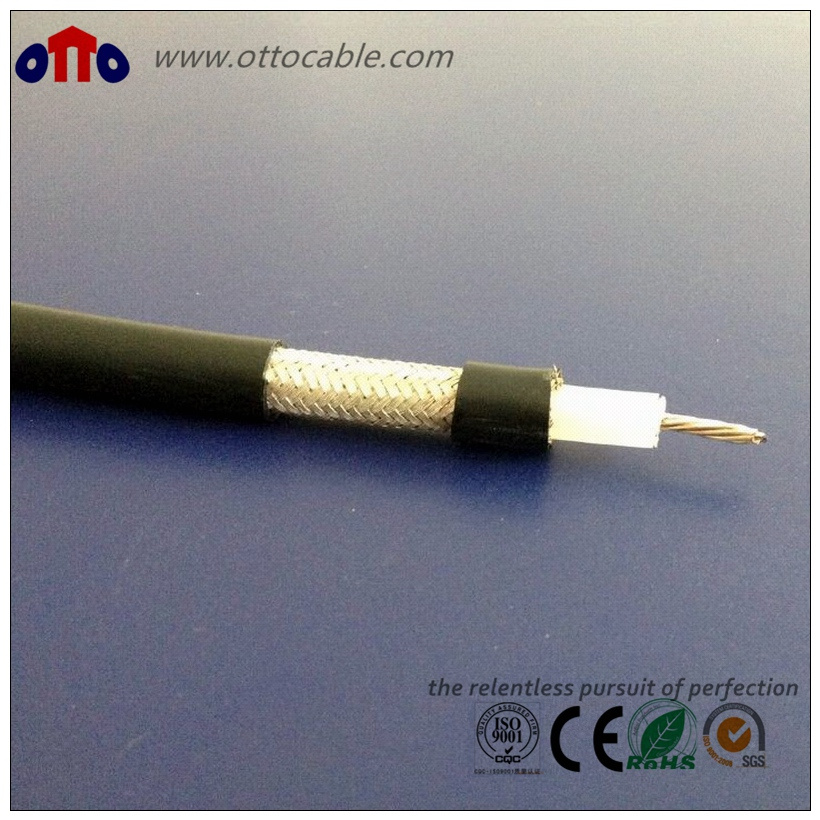

Name: High Quality 50ohms Cable Coaxial Cable Rg214
Brand: all-electronics-online.com
SKU: 766142335
Availability: InStock
Rating: 5 (67 reviews)

Price:	US $ 1-3/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG214
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	Rg214 Coaxial Cable
Inner Conductor:	7*0.75sliver Plated Copper/Tinned Copper
Dielectric:	7.24solid PE
First Shield:	7.90sliver Plated Copper/Tinned Copper
Second Shield:	8.40sliver Plated Copper/Tinned Copper
Jacket:	10.80PVC/TPE/TPU
Jacket Color:	as Per Request
Impedance:	50ohms
Orgin Of Palce:	Zhejiang, China
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Sliver Plated Copper/Tinned Copper
Cover Material:	PVC/TPE/TPU
Type:	Coaxial
Wire Core Material:	Sliver Plated Copper/Tinned Copper
Model:	Rg214
Brand:	Ottocable

Product Description

RG214

Overview
This 50 Ohm RG214 cable is a multipurpose MIL-C-17 coaxial cable.It has good flexibility. These versatile cable assemblies with various lengths have been widely applied to communication systems.

Features
·         50 Ohm data signal transmission;
·         The inner conductor is stranded;
·         The insulation is solid PE;
·         The shield is double braids;
·         It has good flexibility;
·         Common size cable can be easily terminated;
·         Be in conformity with the European ROHS standard;
Assemblies & Application
This 50 Ohm RG214 coaxial cable can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM and other communication systems.

RG MIL-C-17 Coax Cable

RG214

Construction

	Material	Diameter(mm)	Remarks
Inner Conductor Insulation Shield 1 Shield 2 Jacket	Sliver Plated Copper /tinned copper Solid PE Sliver Plated Copper wire braid/Tinned Copper Sliver Plated Copper wire braid/Tinned Copper PVC/TPE/TPU	7*0.75 7.24 7.90 8.40 10.80	Per customer's requirements: Out conductor could be 144,168,192 or 216 PC wires braiding; Jacket could be PVC,TPE or TPU;

Electrical Characteristics

Capacitance (pF/m)
Impedance (Ω)
Velocity of Propagation (%)
Max Operating Frequency (MHz)
Max Operating Voltage(VRMS)
Inner Conductor Resistance (Ω/kM)
Return Loss (dB)
Operating Temperature(0C)

101.0
50.0
66.0
2000
1500.0
130
20
-30 to +70

Attenuation [@68oF (20oC)]

Frequency(MHz)		Max Attenuation (dB/100m)
100 400 1000 3000		6.8 14.5 25.0 50.0

More Ideas
1)  If require conventional construction and materials, please click RG214;
2)  If require lightweight and lower price,you can choose RG214-PC-TC or RG214-TC-TC or RG213;
3)  If require better attenuation,you can choose 7D-FB or FLMR400;
4)  For more RG214 assemblies,you can choose RG214 ASSEMBLIES;
5)  Any other requirements or queries, please click CONTACT US.

Company Link: http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

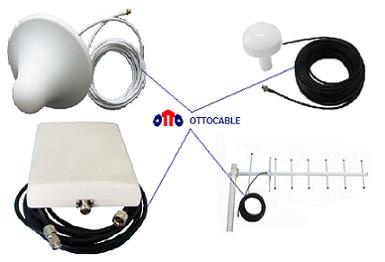

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
