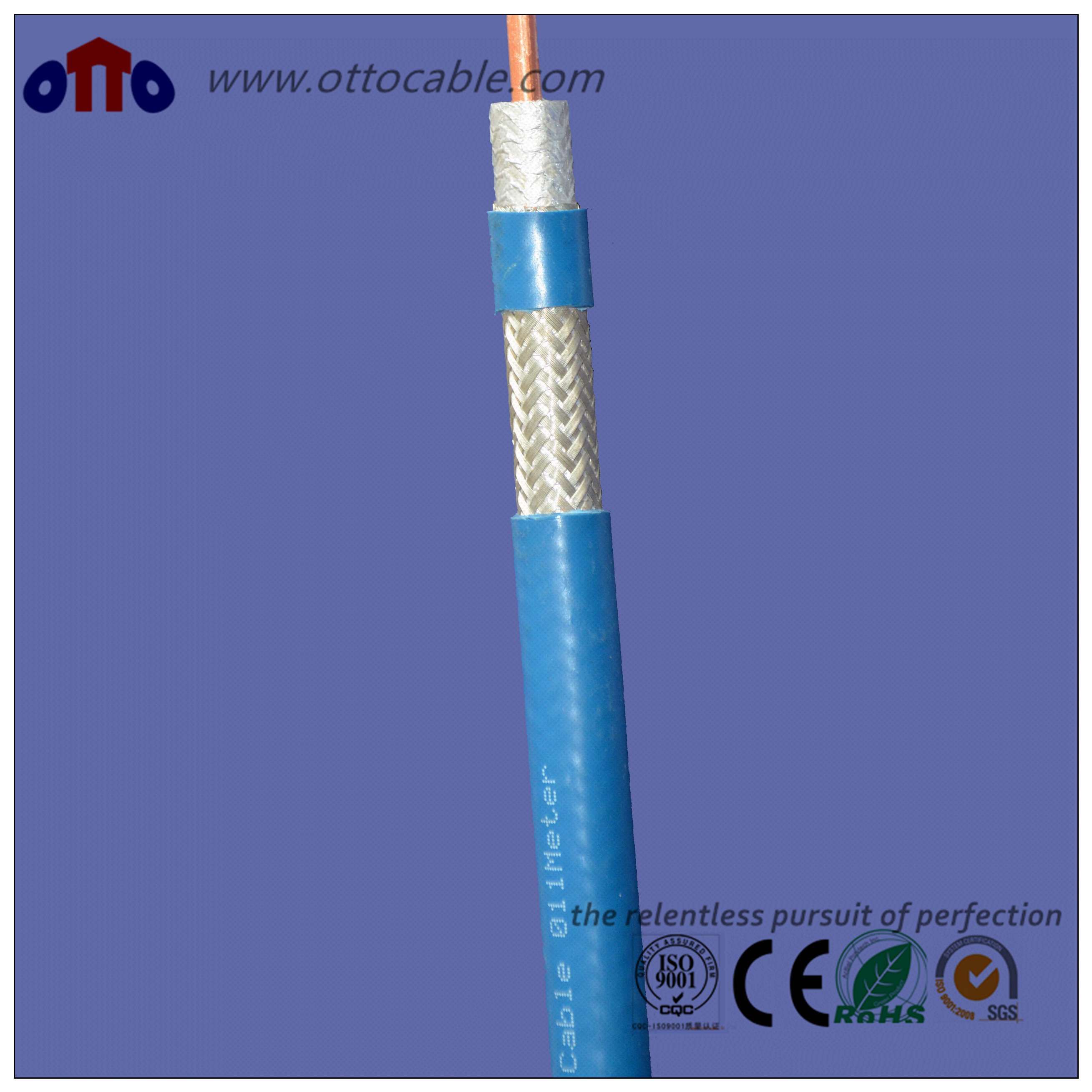

High Quality 50ohms Coaxial Cable (RG8-CCA-AL)

Name: High Quality 50ohms Coaxial Cable (RG8-CCA-AL)
Brand: all-electronics-online.com
SKU: 766539435
Availability: InStock
Rating: 5 (24 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG8-CCA-AL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	Rg8-CCA-Al Coaxial Cable
Inner Conductor:	2.74 Copper Clad Aluminum
Dielectric:	7.24 Foam PE
First Shield:	7.39 Bonded Aluminum Foil
Second Shield:	8.13 Al-Mg Wire Braid
Jacket:	10.29 PVC/PE
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Al-Mg Wire Braid
Cover Material:	PVC/PE
Type:	Coaxial
Wire Core Material:	Copper Clad Aluminum
Model:	Rg8-CCA-Al
Brand:	Ottocable

Product Description

RG MIL-C-17 Coax Cable

RG8

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Dielectric First Shield Second Shield Jacket	Copper Clad Aluminum Foam PE Bonded Aluminum Foil AL-Mg Wire Braid PVC/PE	2.74 7.24 7.39 8.13 10.29	Per customer's requirements: Out conductor could be 128,144 or 168 AL-Mg wires braiding; Jacket could be PVC or PE;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Installation Temp(ºC)
Operating Temp(ºC)
Bending radius(mm)

50±3
78.4
85.0
≥18
≥90
2000.0
-30 to +70
-30 to +70
Min. 200

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
150 450 900 1500 1800 2000 2500	5.6 9.7 13.8 18.0 20.1 21.6 24.5

More Ideas
1)  If require conventional construction and materials, please click RG8;
2)  If require lightweight and weldable shield,you can choose RG8-CCA-TCCA or RG8-CCA-TC ;
3)  If require lightweight and lower price,you can choose RG8-CCA-AL ;
4)  If require good flexibility,you can choose LMR400-UF;
5)  For more RG8 assemblies,you can choose RG8 ASSEMBLIES;
6)  Any other requirements or queries, please click CONTACT US.

Company Link: http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
