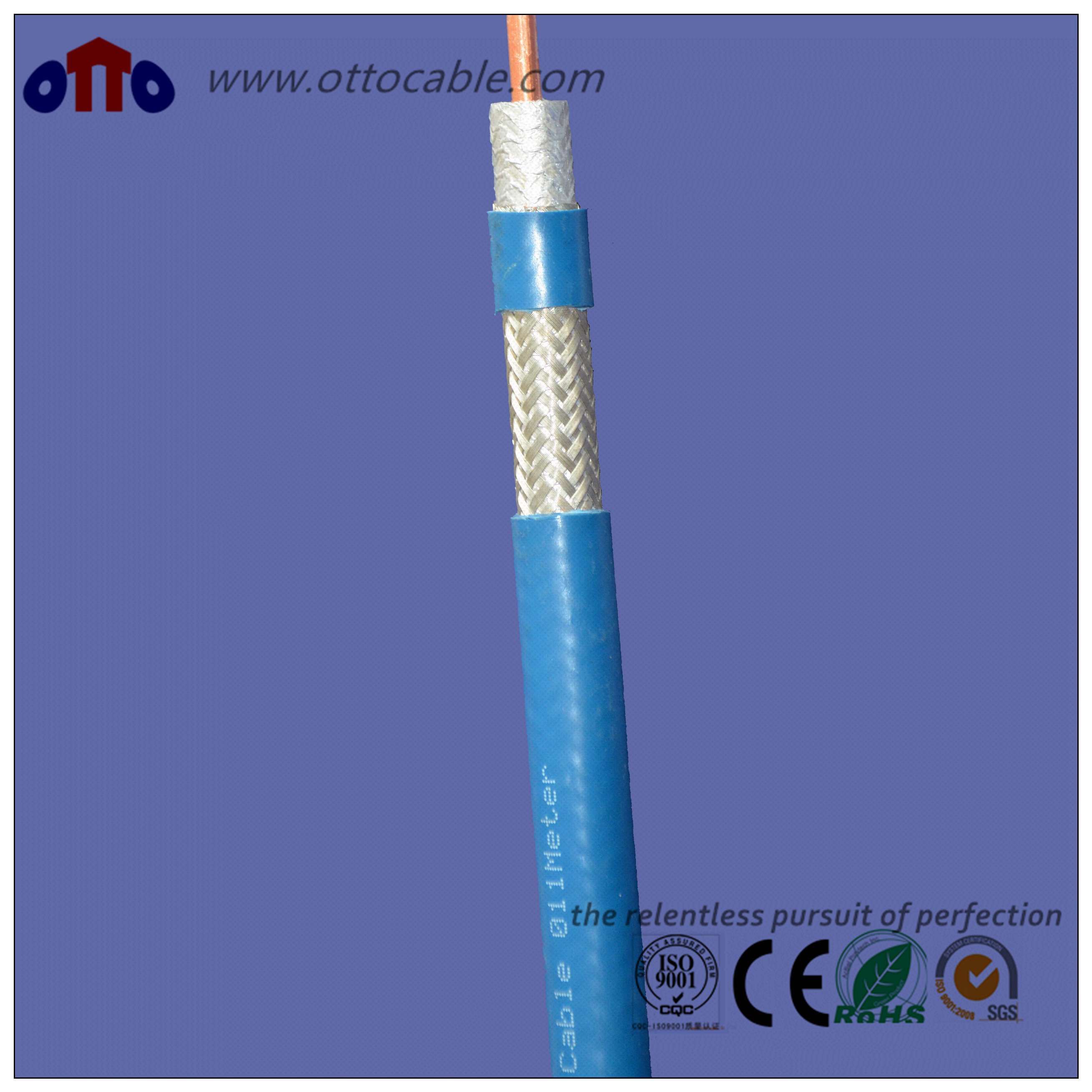

High Quality 50ohms Coaxial Cable Rg8

Name: High Quality 50ohms Coaxial Cable Rg8
Brand: all-electronics-online.com
SKU: 766536185
Availability: InStock
Rating: 4.9 (58 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	Rg8 Coaxial Cable
Inner Conductor:	2.74 Bc/CCA
Dielectric:	7.24 Foam PE
First Shield:	7.39 Bonded Aluminum Foil
Second Shield:	8.13 Al-Mg Wire Braid/Tc/TCCA
Jacket:	10.29 PVC/PE/LSZH
Jacket Color:	Blue or Black
Impedance:	50ohm
Place Of Origin:	Zhejiang, China
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Al-Mg Wire Braid/Tc/TCCA
Cover Material:	PVC/PE/LSZH
Type:	Coaxial
Wire Core Material:	Bc/CCA
Model:	Rg8
Brand:	Ottocable

Product Description

RG8

Overview
This 50 Ohm RG8 cable is a multipurpose MIL-C-17 coaxial cable with foam insulation. It has a good attenuation and shielding effectiveness.It has been widely applied to radio transmission,base radio antenna station and other communication systems.

Features
·         50 Ohm data signal transmission;
·         The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
·         Excellent performance in high frequency,VSWR stability;
·         Similar to the FLMR400 coaxial cable;
·         Customized cable color , winding and connector, meet your different requirements;
·         Be in conformity with the European ROHS standard;
Assemblies & Application
These 50 Ohm RG8 series coaxial cables can be equipped with varied connectors,as for SMA,N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.

RG MIL-C-17 Coax Cable

RG8

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Dielectric First Shield Second Shield Jacket	Bare Copper/CCS Foam PE Bonded Aluminum Foil TC Wire Braid/AL/TCCA PVC/PE/LSZH	2.74 7.24 7.39 8.13 10.29	Per customer's requirements: Out conductor could be 128,144 or 168 TC wires braiding; Jacket could be PVC,PE or LSZH;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Installation Temp(ºC)
Operating Temp(ºC)

50±3
78.4
85.0
≥18
≥90
2000.0
-30 to +70
-30 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
150 220 450 900 1500 1800 2000 2500	5.0 6.1 8.9 12.8 16.8 18.6 19.6 22.2

More Ideas
1)  If require conventional construction and materials, please click RG8;
2)  If require lightweight and weldable shield,you can choose RG8-CCA-TCCA or RG8-CCA-TC ;
3)  If require lightweight and lower price,you can choose RG8-CCA-AL ;
4)  If require good flexibility,you can choose LMR400-UF;
5)  For more RG8 assemblies,you can choose RG8 ASSEMBLIES;
6)  Any other requirements or queries, please click CONTACT US.

Company Link: http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
