High Quality 50ohms RF Coaxial Cable 4D-Fb

Name: High Quality 50ohms RF Coaxial Cable 4D-Fb
Brand: all-electronics-online.com
SKU: 766079145
Availability: InStock
Rating: 4.8 (70 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	4D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	1.42 Bc/CCS
Dielectric:	3.81 Foam PE
First Shield:	3.94 Bonded Aluminum Foil
Second Shield:	4.40 Tc Wire Braid/Al/TCCA
Jacket:	6.10 PVC/PE/LSZH
Ottocable:	4D-Fb
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Tc Wire Braid/Al/TCCA
Cover Material:	PVC/PE/LSZH
Type:	Coaxial
Wire Core Material:	CCS/Bc
Model:	4D-Fb
Brand:	Ottocable

Product Description

4D-FB

Overview
This is a JIS foam coaxial cable with solid inner conductor. It has a good attenuation and shielding effectiveness, and has been widely applied to radio transmission,base radio antenna station and other communication systems.

Features
·         50 Ohm data signal transmission;
·         The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
·         Excellent performance in high frequency,VSWR stability;
·         Similar to the LMR240 coaxial cable;
·         Customized cable color , winding and connector, meet your different requirements;
·         RoHS compliant;
Assemblies & Application
These 50 Ohm 4D-FB coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.

Communications RF Coax Cable

4D-FB

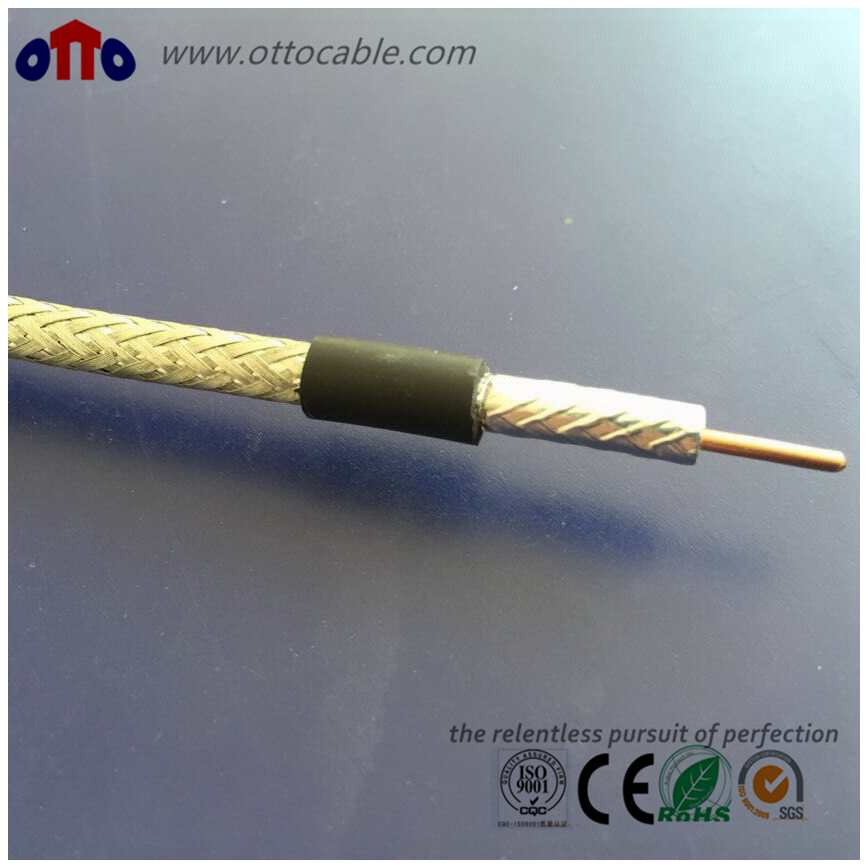

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Dielectric First Shield Second Shield Jacket	Bare Copper/CCS Foam PE Bonded Aluminum Foil TC Wire Braid/AL/TCCA PVC/PE/LSZH	1.42 3.81 3.94 4.40 6.10	Per customer's requirements: Out conductor could be 80,96, 112 or 128 TC wires braiding; Jacket could be PVC,PE or LSZH;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C)

50±3
82±2
81.0
1.6
≤1.3
≥20
≥85
30
-25 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
1200 1500 1800 1900 2000 2200 2500 3000	28.4 33.5 37.2 37.9 38.7 40.5 43.1 48.6

More Ideas
1)  If require conventional construction and materials, please click 4D-FB;
2)  If require lightweight and weldable shield,please click 4D-BC-TCCA;
3)  If require lightweight and lower price,please click 4D-CCS-AL;
4)  For more 4D-FB assemblies,please click 4D ASSEMBLIES;
5)  Any other requirements or queries, please click CONTACT US

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

Company Information

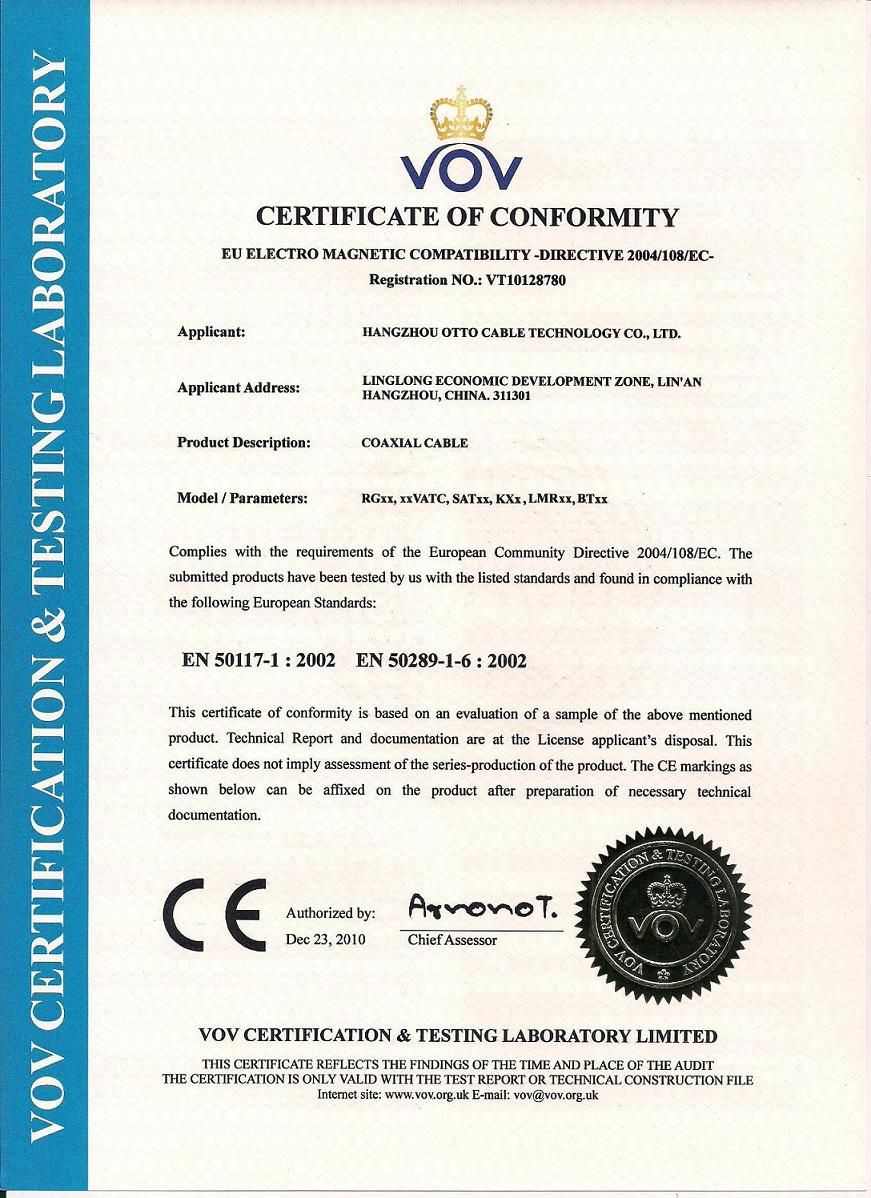

Certifications

Contact us

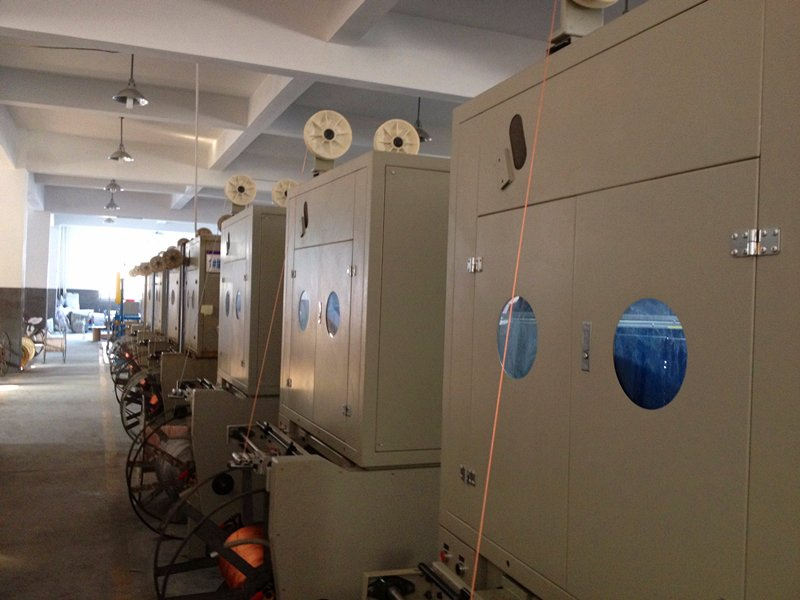

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
