High Quality 50ohms RF Coaxial Cable 8d-Fb
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
8D-FB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ottocable: |
8d-Fb RF Coaxial Cable |
| Inner Conductor: |
2.80 CCA/Bc |
| Dielectric: |
7.80 Foam PE |
| First Shield: |
8.00 Bonded Aluminum Foil |
| Second Shield: |
8.70 Al-Mg Wire Braid/Tc/TCCA |
| Jacket: |
10.60 PVC/PE/LSZH |
| Jacket Color: |
as Per Request |
| Impedance: |
50ohms |
| Origin Of Place: |
Zhejiang,China |
| Application: |
RF Cable |
| Certification: |
RoHS |
| Conductor Material: |
Al-Mg Wire Braid/Tc/TCCA |
| Cover Material: |
PVC/PE/LSZH |
| Type: |
Coaxial |
| Model: |
8d-Fb |
| Brand: |
Ottocable |
Product Description

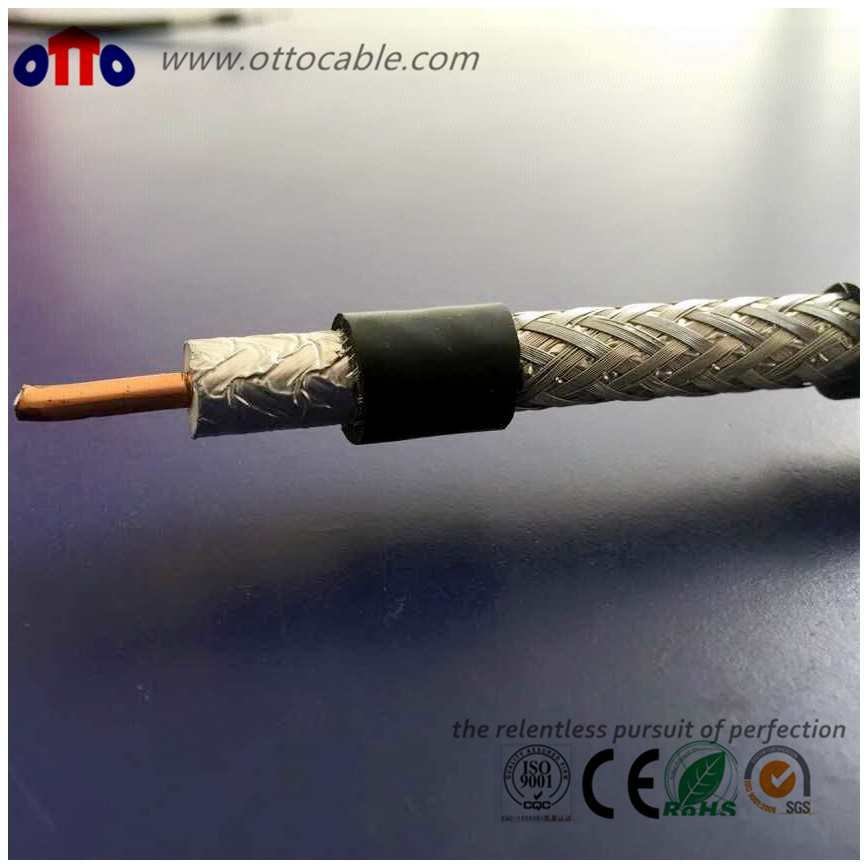

8D-FB This is a JIS foam coaxial cable with solid inner conductor. It has a good attenuation and shielding effectiveness, and has been widely applied to radio transmission,base radio antenna station and other communication systems. Features· 50 Ohm data signal transmission;· The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;· Excellent performance in high frequency,VSWR stability;· Similar to the LMR400 coaxial cable;· Custom cable color , winding and connector, meet your different requirements;· RoHS compliant;Assemblies & ApplicationThese 50 Ohm 8D-FB coaxial cables can be fixed kinds of connectors,such as N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems. Communications RF Coax Cable 8D-FB Construction| Item | Material | Diameter(mm) | Remarks |
Inner Conductor
Dielectric
First Shield
Second Shield
Jacket | Bare Copper /CCA
Foam PE
Bonded Aluminum Foil
TC Wire Braid/AL/TCCA
PVC/PE/LSZH | 2.80
7.80
8.00
8.70
10.60 | Per customer's requirements:
The second shield could be 128,144 or 168 TC wires braiding;
Jacket could be PVC,PE or LSZH; |
Electrical CharacteristicsImpedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C) | 50±3
82±2
82.0
1.6
≤1.3
≥20
≥80
55.0
-25 to +70 |
Attenuation (@200C)| Frequency(MHz) | Max Attenuation(dB/100m) |
1200
1500
1800
1900
2000
2200
2500 | 17.4
19.8
22.1
23.5
25.4
25.9
27.6 |
More Ideas1) If require conventional construction and materials, please click 8D-FB;2) If require lightweight and weldable shield,please click 8D-CCA-TCCA or 8D-CCA-TC;3) If require lightweight and lower price,please click 8D-CCA-AL or 8D-CCA-TCCA;4) For more 8D-FB assemblies,please click 8D ASSEMBLIES; 5) Any other requirements or queries, please click CONTACT US. Company Link: http://ottoding.en.made-in-china.com/
Packaging & Shipping
Our Services
Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

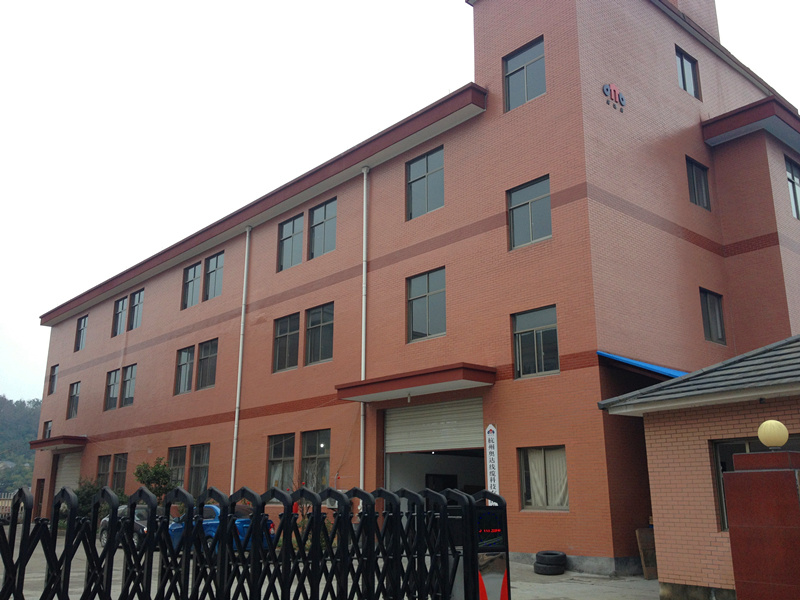

Company Information
Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.
After decades of practical experience and technical skills, we have been very professional on these products, which covers:
1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.
50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...
2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.
Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
