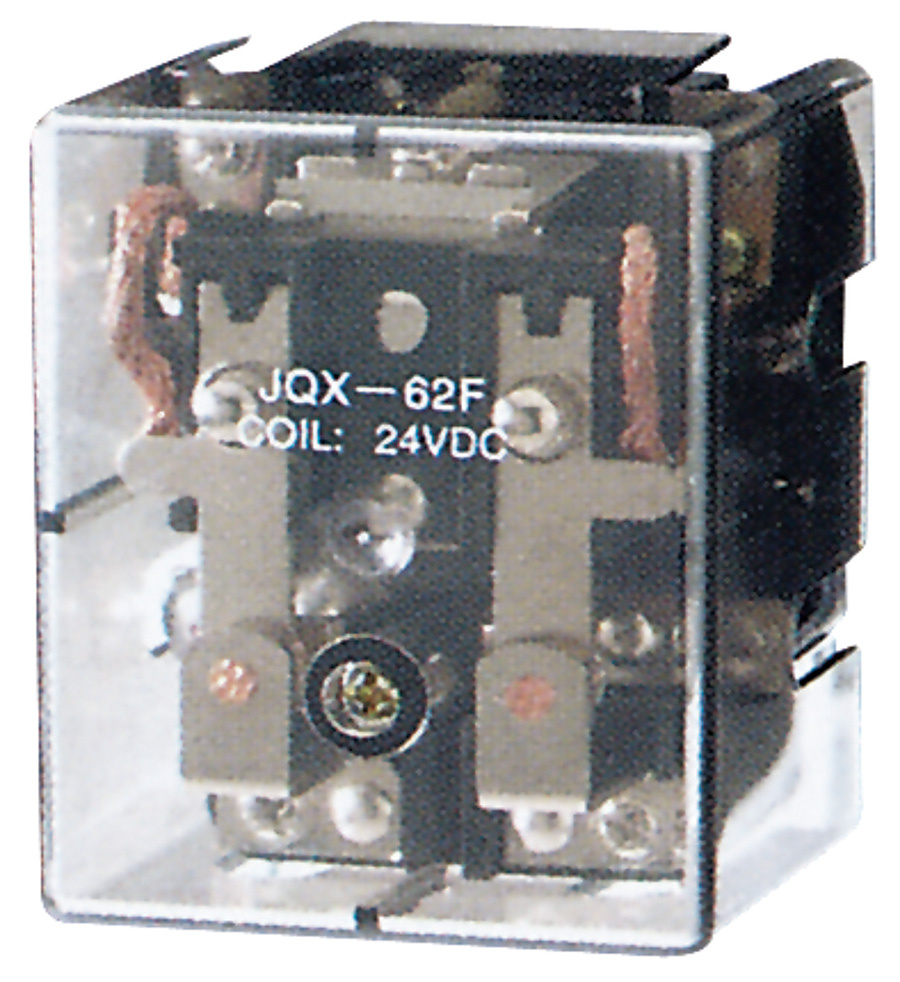

High Quality 60A Power Relay with Ce (JQX-62F-2Z)

Prod Model:	JQX-62F-2Z
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size(mm):	84×68.2×65.5
Terminal Layout:	2z
Contact Capacity:	60A 250VAC, 60A 30VDC
Electrical Life:	105OPS
Mechanical Life:	106OPS

Product Description

Application
Size(mm):84×68.2×65.5
Terminal layout:2Z
Contact capacity:60A  250VAC
                                60A  30VDC
Contact resistance:≤50mΩ
Insulation resistance: ≥ 1000MΩ
Dielectric strength:BOC 2200VAC
                           BCC 2200VAC

Model	Coil nominal voltage	Coil nominal power	Electrical life	Mechanical life	Operating temperature	Weight	Mounting methods
JQX-60F-1Z	DC 6 to 220V AC 6 to 380V	DC ≤ 3W AC ≤ 4.5VA	105OPS	106OPS	-40ºC~55ºC	≤187g	Screw Mounting
JQX-62F-1Z	DC 6 to 220V AC 6 to 380V	DC ≤ 3.3W AC ≤ 5VA	105OPS	106OPS	-45ºC~40ºC	≤210g	Screw Mounting
JQX-62F-2Z
	DC 6 to 220V AC 6 to 380V	DC ≤ 4W AC ≤ 6VA	105OPS	106OPS	-40ºC~40ºC	≤340g	Screw Mounting
G7L-2P-TUBJ	DC 6 to 240V AC 6 to 220V	DC ≤ 2W	105OPS	106OPS	-40ºC~70ºC	≤100g	Outlet
