| Prod Model: |
SC(B)10 |
| Coil Structure: |
Toroidal |
| Coil Number: |
Autotransformer |
| Material: |
Epoxy Resinv |
| Rated Capacity: |
30-2500kVA |
| Rated Voltage: |
10kv-25kv |
| Frequency: |
50Hz/Customized |
| Standard: |
IEC Standard |
| Certificate: |
ISO9001 |
| Application: |
Electronic |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi |

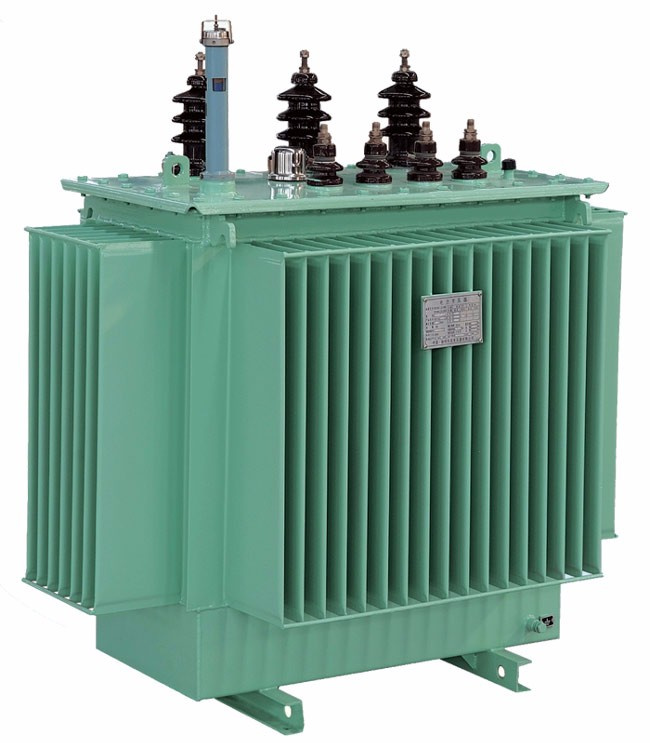

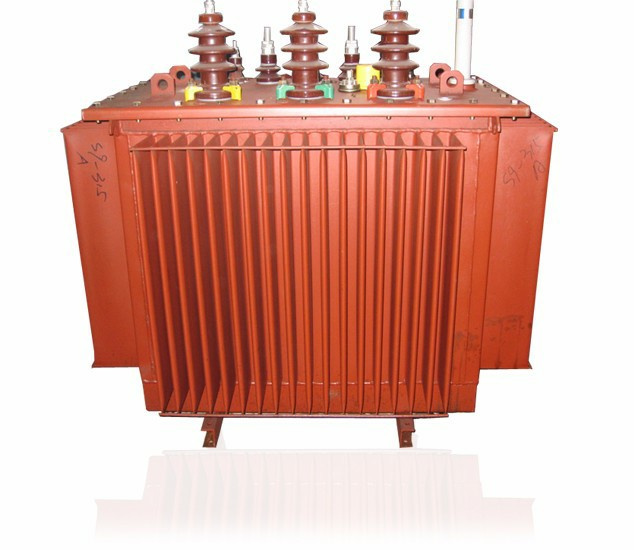

Product Description
Product Description
1. Rated voltage: 6.3kV,10kV,11kV,13.2kV,13.8kV,15kV, 20KV, 22KV, 33KV,35KV
2. Rated power: 30kva ~ 25000kva or customized
3. Stardard: IEC60076,GB1094-1996
4. Frequency: 50HZ /60HZ
5. Vector group: Dyn11, Yyn0, Ynd11, or others
6. Cooling: ONAN/ ONAF/ OFAF
7. Tap changer: 3 levels; 5 levels; 7 levels; 13 levels; 17 levels
8. Rating plate:: Yes (Zhongyi or Customer brand)
9. Corrugated refrigeration panels: Yes ( Four sides of the transformer shell)
With the company's unique calculation program, the iron core, coil, body, leading wire, fuel tank and other components for the 10-35kV class power and distribution transformers are optimized in all directions to ensure product performance, excellent process equipment, careful material optimization, efficient manufacturing, making the transformer with low loss, low partial discharge, low noise etc., the product quality is superior, with energy saving and environmental protection, reliable operation and effectively reduce the operating costs.
Advantage
1.Compared with S9,S11series transformer,the annual average no-load loss of S13 is reduced by 30% and the average load loss is reduced by 20%.At the same time,it saves energy obviously.
2.It has the complete symmetry tri-phased iron core magnetic circuit,which greatly reduces the magnetic resistance and no-load loss,and thus,though adopting the traditional materials,which is more high efficient and energy saving,producing smaller noise and with more compact structure.
Features
- Good Economic Performance
Based on S9 series, the no-load loss for S11 series products decreased averagely 10.3%, no-load current decreased 22.4%. The three-phase oil immersed idstribution transformer adpots new type insulation structure and makes the shot-circuit resistance strong. Transformer tank adopts fully sealed structure, fuel tank and tank rim can be connected by bolts or welded firmly, the transformer oil doesn't contact with the air, extending the service life. - High Operational Reliability
Improve the relevant sealing parts for the fuel tank, increase the reliability and advance the technical level to ensure the reliability of the seal. |
Packing:
1, Wrapped with plastic film. 2, Fixed in a wooden case.
3, Wooden case on a pallet.
Delivery Details : 10-30 days according to order quantities
Certifications
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.
The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
