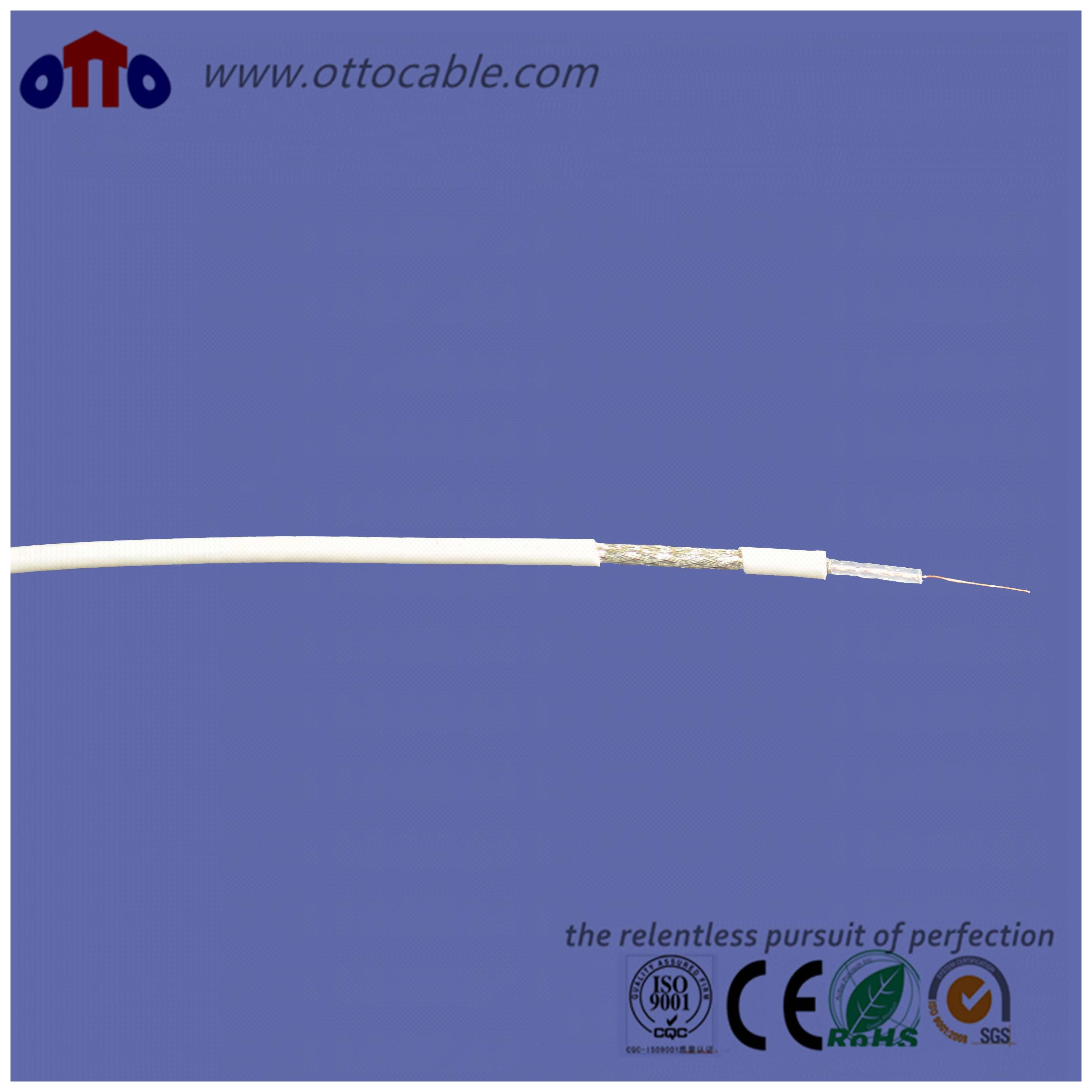

High Quality 75 Ohms Coaxial Cable (1.5C-2V)

Name: High Quality 75 Ohms Coaxial Cable (1.5C-2V)
Brand: all-electronics-online.com
SKU: 766321595
Availability: InStock
Rating: 4.9 (110 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	1.5C-2V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	1.5c-2V Coaxial Cable
Inner Conductor:	0.26 CCS/Bc
Insulation:	1.52 Solid PE
Out Conductor:	1.90 CCA Wire Braid/Bc/Tc
Jacket:	2.80 PVC/LSZH
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Bc/CCA/Tc Wire Braid
Cover Material:	PVC/LSZH
Type:	Coaxial
Wire Core Material:	Bc/CCS
Model:	1.5c-2V
Brand:	Ottocable

Product Description

1.5C-2V

Overview
This 75 Ohm 1.5C-2V coaxial cable has small outer diameter and can be fixed with kinds of connectors. These versatile cable assemblies with various lengths have been widely used for tight fit applications.

Features
·         75 Ohm data signal transmission;
·         Special insulation materials,providing good electrical property and welding performance;
·         Small diameter is ideal for tight fit applications;
·         Common size cable can be easily terminated;
·         RoHS compliant;
Assemblies & Application
This 75 Ohm 1.5C-2V coaxial cable can be fixed with kinds of connectors,such as F,TV,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to car radio and other communication systems.

Car Antenna Coax Cable

1.5C-2V

Construction

	Material	Diameter(mm)	Remarks
Inner Conductor Insulation Out conductor Jacket	BC/CCS Solid PE BC wire Braid/TC/CCA PVC/LSZH	0.26 1.52 1.90 2.80	Per customer's requirements: Out conductor could be 48,64,80 or 96 BC wires braiding; Jacket could be PVC or LSZH;

Electrical Characteristics

Capacitance (pF/m)
Impedance (Ω)
Velocity of Propagation (%)
Max Operating Frequency (MHz)
Max Operating Voltage(VRMS)
Inner Conductor Resistance (Ω/kM)
Return Loss (dB)
Operating Temperature(0C)

67
75
67
1000
1000
--
18
-30 to +105

Attenuation [@68oF (20oC)]

Frequency(MHz)	Max Attenuation (dB/100m)
10 17 70 200	10.0 15.0 28.0 48.0

More Ideas
1)  If require conventional construction and materials, please click 1.5C-2V;
2)  If require better welding performance,please click 1.5C-2V-TC;
3)  If require to be used in high temperature environment at 105oC,please click 1.5C-XLPE;
4)  If require to be used in higher temperature environment,please click RG179;
5)  For more 1.5C-2V assemblies,please click 1.5C-2V ASSEMBLIES;
6)  Any other requirements or queries, please click CONTACT US.
