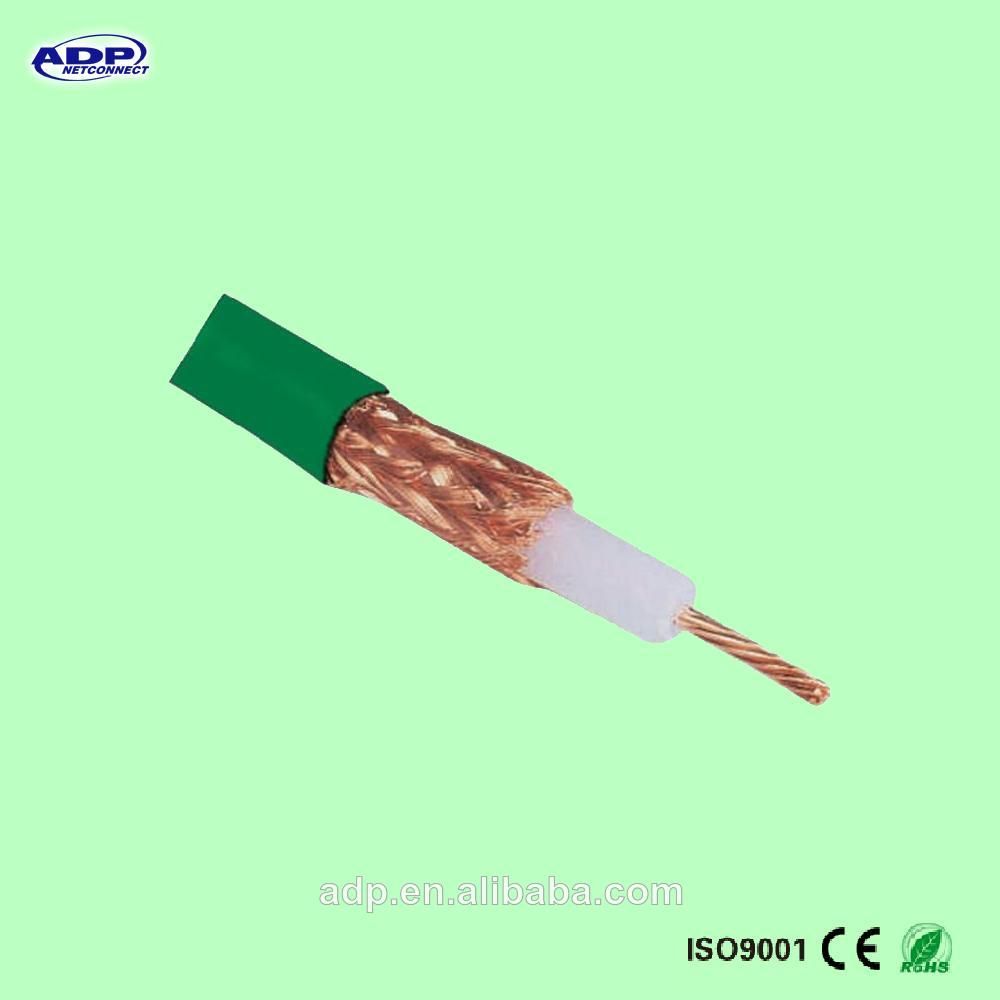

High Quality 75ohm Coaxial Cable Kx6 Specification

Name: High Quality 75ohm Coaxial Cable Kx6 Specification
Brand: all-electronics-online.com
SKU: 739892445
Availability: InStock
Rating: 5 (78 reviews)

Price:	US $ 12-17/Roll
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Roll
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KX6 coaxial cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Kx6
Number Of Conductors:	7
Conductor:	Copper
Center Core:	7/0.2mm Bare Copper
Jacket:	PVC/PE
Color:	Optional
Use For:	TV,TV,DVD,Security
Shielding Coverage:	30%--95%
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial Cable

Product Description

high quality 75ohm coaxial cable kx6 specification Specifications 1) 7*0.2mm bare copper+3.7mm Solid PE+al foi 96/0.12 CCA braiding+PVC jacket 2) Customers' specifications are welcomed Applications: CCTV Video Premise wiring Security Packing: 1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll . Other lengths available according to client's request; 2) Inner packing: Wooden reel, plastic reel, and paper reel available. 3) Outer packing: Carton box, pull out box, pallet available. 4) Other packing available according to client's request.

1) Specifications

Center Conductor

7*0.2mm stranded bare coopper

Dielectric:

3.7mm solid PE

Braiding:

96/0.12mm CCA

Jacket:

6.1 + 0.10mm PVC/PE

2) Characteristics

Spark Test: 2000 VAC

Dielectric Strength: Conductor to Shield: 2000VDC

Impedance:	75 + 3 Ohm
Capacitance:	16.0pF./Ft. Nom.
Velocity of Propagation:	84%
DCR: Conductor:	10.5 Ohms/1000Ft.(Nom.) Coax
	6.6 Ohms/1000Ft(Nom.) 18 AWG
Return Loss:	20dB min (5-860MHz)
	15dB min(860-2500Mhz)
SRL:	20dB (10-350MHz) 100% Swept Tested

3) Attenuation

Attenuation	[@68 o F. (20 o C.)]
Frequency (MHz)	Max. (dB/100 ft.)	Frequency (MHz)	Max. (dB/100 ft.)
1	0.30	400	6.01
10	0.86	700	8.47
50	1.91	900	9.82
100	2.78	1000	10.47
200	4.06

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
