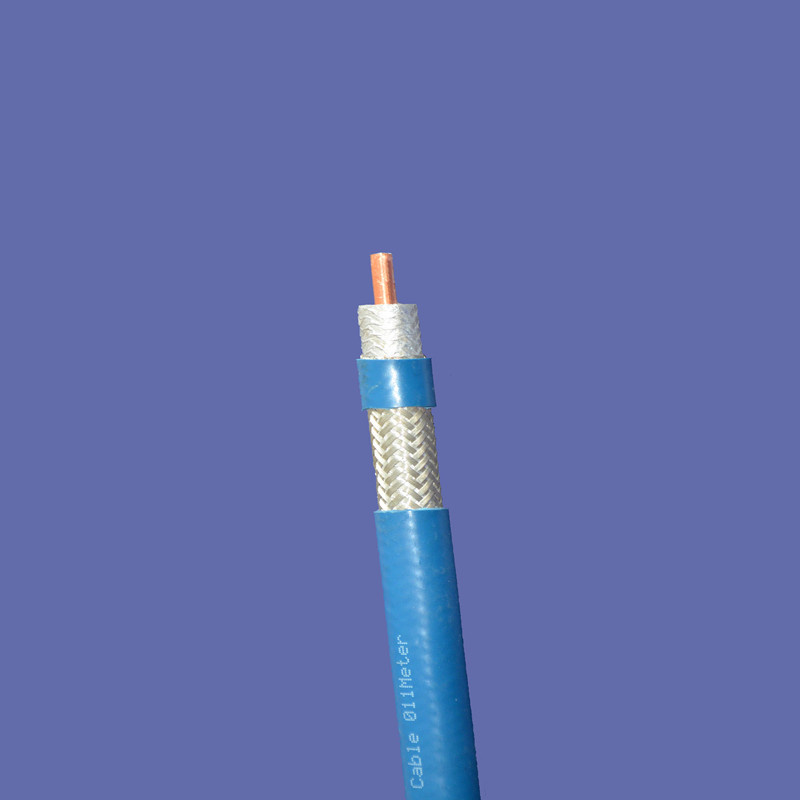

High Quality 75ohm Coaxial Cable Rg11 with Connectors

Name: High Quality 75ohm Coaxial Cable Rg11 with Connectors
Brand: all-electronics-online.com
SKU: 765827045
Availability: InStock
Rating: 4.8 (61 reviews)

Price:	US $ 0.4-0.6/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	Rg11 Coaxial Cable
Inner Conductor:	1.63 CCS/Bc
Dielectric:	7.11 Foam PE
First Shield:	7.30 Bonded Aluminum Foil
Second Shield:	8.00 Al/Tc Wire Braid
Jacket:	10.03 PVC/PE
Jacket Color:	as Per Request
Impedance:	75ohm
Outer Packing:	Carton Box, Pull out Box, Pallet
Place Of Origin:	Zhejiang, China (Mainland)
Application:	RF Cable
Certification:	RoHS
Conductor Material:	8.13 Tc Wire Braid
Cover Material:	10.29 PVC/PE
Type:	LMR400
Wire Core Material:	1.63 Copper Clad Aluminum/ Bare Copper
Model:	Rg11
Brand:	Ottocable

Product Description

CATV/MATV Coax Cable

RG11

Construction

Item

Material

Diameter(mm)

Remarks

Inner Conductor

Insulation

First Shield

Second Shield

Jacket

CCS/BC

Foam PE

Bonded Aluminum Foil

AL-Mg/TC Wire Braid

PVC/PE

1.63

7.11

7.30

8.00

10.03

Per customer's requirements:

The inner conductor could be CCS or BC;The second shield could be 96,112,128 or 144 AL-Mg /TC wires braiding;Jacket could be PVC or PE ;

Electrical Characteristics

Impedance (Ω)

Capacitance (pF/m)

Velocity of Propagation (%)

Dielectric strength(kV)

V.S.W.R

Return Loss

Screening Effectiveness(db)

Min. Bending Radius (mm)

Operating Temperature(⁰C)

75±3

54±2

84.0

1.6

≤1.2

≥20

≥75

35.0

-25 to +70

Attenuation (@20⁰C)

Frequency(MHz)

Max Attenuation(dB/100m)

250

300

400

500

600

865

1000

6.72

7.38

8.53

9.51

10.43

13.05

14.27

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
