High Quality 75ohms Telecom Coaxial Cable (1.5C-2V)

Name: High Quality 75ohms Telecom Coaxial Cable (1.5C-2V)
Brand: all-electronics-online.com
SKU: 619694262
Availability: InStock
Rating: 5 (86 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	1.5C-2V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	1.5c-2V Coaxial Cable
Inner Conductor:	0.252 Bc/Tc
Dielectric:	1.5 Solid PE/XLPE
Shield:	2.00 Bc/Tc Braid 92% Coverage
Jacket:	2.60 PVC/LSZH
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Bc/Tc Wire Braid
Cover Material:	PVC/LSZH
Type:	Coaxial
Wire Core Material:	Bc/Tc
Model:	1.5c-2V
Brand:	Ottocable

Product Description

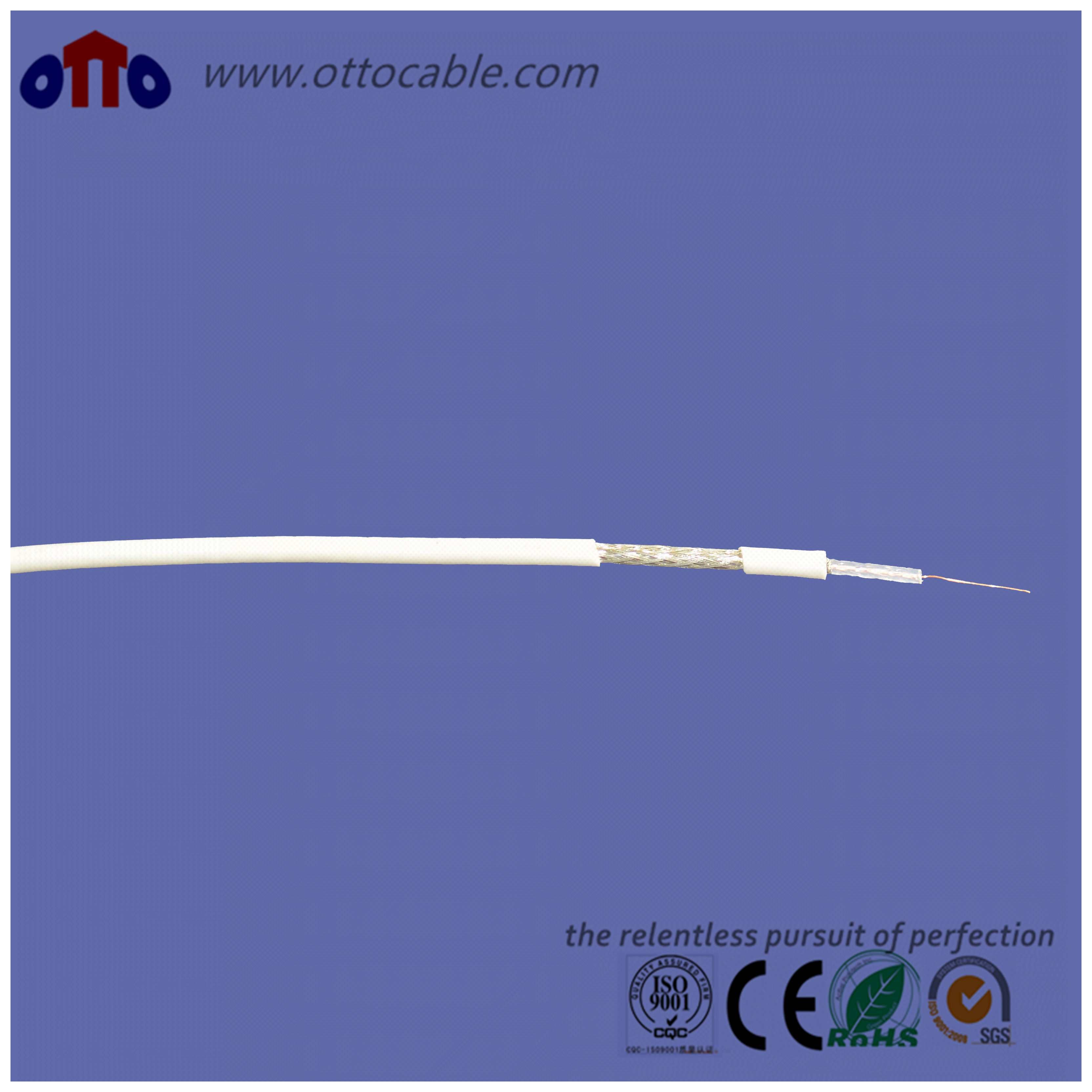

Telecom Coax Cable(1.5C-2V-75Ω )

Application
These kind of cables are serving for communication data transmission equipment, car antenna systems, large-scale SPC (stored program control switching) exchanges for central offices, mobile communications systems, satellite TV network and video monitoring systems.

Construction
Inner Conductor: 0.252 BC/TC
Dielectric: 1.5 Solid PE/XLPE
Shield: 2.00 BC/TC Braid 92% coverage
Jacket: 2.60 PVC/LSZH

Telecom Coaxial Cable(1.5c-2v-75Ω)

Construction

Item

Material

Diameter(Inch/mm)

Inner Conductor

BC/TC

0.0099

0.252

Dielectric

Solid PE/XLPE

0.0590

1.5

Shield

BC/TC Braid 92% coverage

0.0787

2.00

Jacket

PVC/LSZH

0.1020

2.60

Electrical Characteristics

Capacitance(pF/m)

69.0

Impedance(Ω)

67.0

Velocity of Propagation(%)

70.0

Application

These kind of cables are serving for communication data transmission equipment,car antenna systems, large-scale SPC (stored program control switching) exchanges for central offices, mobile communications systems, satellite TV network and video monitoring systems.

Company Link: http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

Company Information

Certifications

Contact us

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
