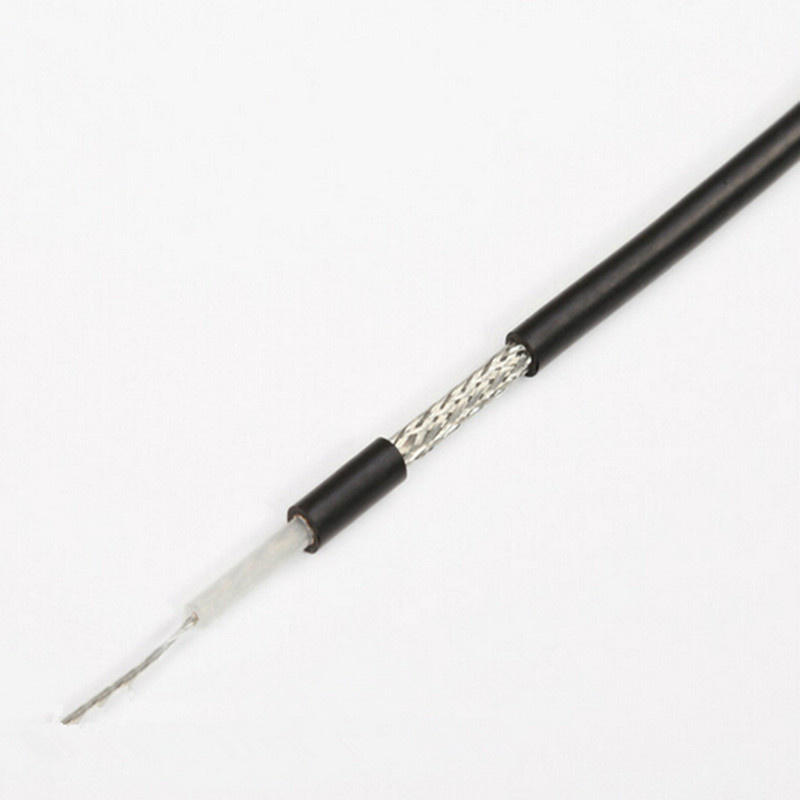

High Quality 75ohms Telecom Coaxial Cable 1.5c2V

Name: High Quality 75ohms Telecom Coaxial Cable 1.5c2V
Brand: all-electronics-online.com
SKU: 809727825
Availability: InStock
Rating: 4.6 (107 reviews)

Price:	Negotiable/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	1.5C2V
Ottocable:	1.5c2V Coaxial Cable
Inner Conductor:	0.252 Bc/Tc
Dielectric:	1.5 Solid PE/XLPE
Shield:	2.00 Bc/Tc Braid 92% Coverage
Jacket:	2.60 PVC/LSZH
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Bc/Tc Wire Braid
Cover Material:	PVC/LSZH
Type:	Coaxial
Wire Core Material:	Bc/Tc
Model:	1.5c2V
Brand:	Ottocable

Product Description

Telecom Coax Cable(1.5C-2V-75Ω )

Application
These kind of cables are serving for communication data transmission equipment, car antenna systems, large-scale SPC (stored program control switching) exchanges for central offices, mobile communications systems, satellite TV network and video monitoring systems.

Construction
Inner Conductor: 0.252 BC/TC
Dielectric: 1.5 Solid PE/XLPE
Shield: 2.00 BC/TC Braid 92% coverage
Jacket: 2.60 PVC/LSZH

Telecom Coaxial Cable(1.5c-2v-75Ω)

Construction

Item

Material

Diameter(Inch/mm)

Inner Conductor

BC/TC

0.0099

0.252

Dielectric

Solid PE/XLPE

0.0590

1.5

Shield

BC/TC Braid 92% coverage

0.0787

2.00

Jacket

PVC/LSZH

0.1020

2.60

Electrical Characteristics

Capacitance(pF/m)

69.0

Impedance(Ω)

67.0

Velocity of Propagation(%)

70.0

Application

These kind of cables are serving for communication data transmission equipment,car antenna systems, large-scale SPC (stored program control switching) exchanges for central offices, mobile communications systems, satellite TV network and video monitoring systems.

Company Link: http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

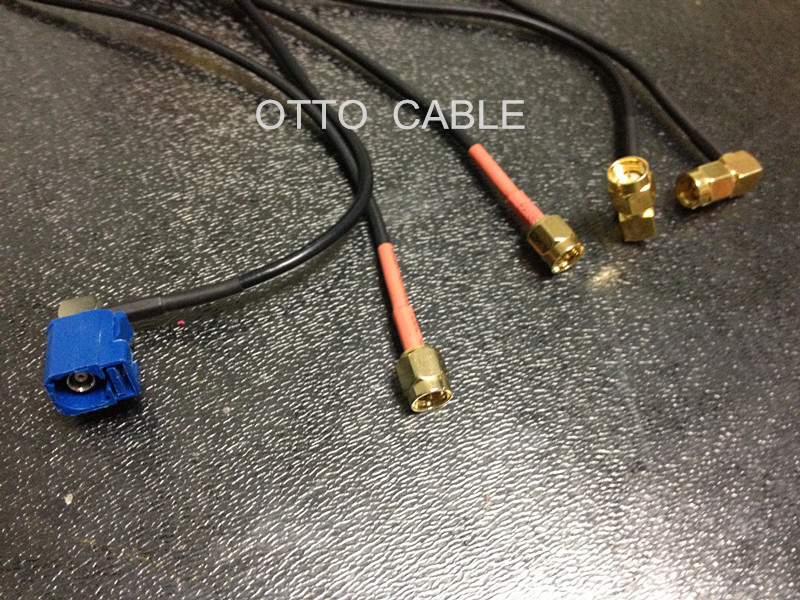

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
