High Quality 8 Layer Multilayer PCB Used in Electronics

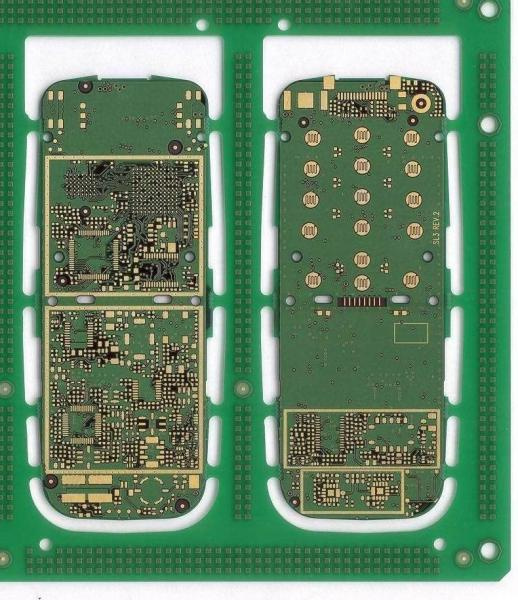

Name: High Quality 8 Layer Multilayer PCB Used in Electronics
Brand: all-electronics-online.com
SKU: 783486225
Availability: InStock
Rating: 4.4 (79 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	multilayer_pcb_pcb_pwb
Markets:	Eastern Europe,Africa,Oceania
Layer:	8
Thickness:	1.6mm
Soldmask:	Green
Space:	0.15mm
Surface:	Enig
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

Detailed Product Description
Structure: 1+c+1/2+c+2
Materials: FR4 H-TG
Copper Thickness: MAX 1OZ
Dielectric Thickness: Max 3 mil
Pattern width/space: Max 4mil
Laser drill hole: Max 6mil
Layer: Max 24layer
Impedence control: 10%
Drill hole: Buried/blind/through hole
Surface treatment: HAL/HAL-LF/ENIG/IMMERSION GOLD/SILVER/TIN/GOLD FINGER etc
Production: Prototype/mass/sample/quick turn/high mixture low volume
Aluminum base board (Aluminum PCB)

ItemsSpeci.Remark

Max panel size	32" x 32"(800mm x 800mm)
Min trace width/ space (inner layer)	4mil/4mil(0.1mm/0.1mm)
Min PAD (inner layer)	5 mil(0.13mm)	hole ring width
Min thickness(inner layer)	4 mil(0.1mm)	without copper
Inner copper thickness	0.5~4 oz
Outer copper thickness	0.5~6 oz
Finished board thickness	0.4-3.2 mm
Board thickness tolerance control(±0.10 mm)	±0.1 mm	1~4 L
Finished board thicknes(±10%)	±10%	≥6 L
Inner layer treatment	Brown oxidation
Layer count Capability	1-24 LAYER
Alignment between ML	±2mil
Min drilling	0.15 mm
Min finished hole	0.1 mm
Hole precision	±2 mil(±50 um)
Tolerance for Slot	±3 mil(±75 um)
Tolerance for PTH	±3 mil(±75um)
Tolerance for NPTH	±2mil(±50um)
Max Aspect Ratio for PTH	8:1
Hole wall copper thickness	15-50um
Alignment of outer layers	4mil/4mil
Min trace width/space for outer layer	4mil/4mil
Tolerance of Etching	+/-10%
Thickness of solder mask(on trace)	0.4-1.2mil(10-30um)
Thickness of solder mask(at trace corner)	≥0.2mil(5um)
Thickness of solder mask(on base material)	Finished thickness+1.2mil
Hardness of solder mask	6H
Alignment of solder mask film	±2mil(+/-50um)
Min width of solder mask bridge	4mil(100um)
Max hole with solder plug	0.5mm
Surface finish	HAL (Lead or Lead free), immersion Gold, Immersion Nickel, Electric Gold finger, Electric Gold, OSP,
Max Nickel thickness for Gold finger	280u"(7um)
Max gold thickness for Gold finger	30u"(0.75um)
Nickel thickness in Immersion Gold	120u---240u"(3um----6um)
Gold thickness in Immersion Gold	1u"---5u"(0.025um----0.125um)
Impedance control and its tolerance	50±10%, 75±10%,100±10% 120±10%
Trace Anti-stripped strength	≥61B/in(≥107g/mm)
Bow and twist	0.75%

Established in 2004, Ucreate PCB Co., Ltd is a professional manufacturing enterprise majoring in high end and multi-layer Printed Circuit Board.

Along with more than 10 years' development, Ucreate has settled its factories both in Shenzhen and Huizhou city, covering facility area 12000 Square meters, with more than 800 employees, among them, 150 with highly professional who are no less than 10 years expert in PCB field. Now we are reaching a monthly capability of 30000 Square meters.

Our main products range from Multilayer PCB, High frequency PCB, Metal base PCB, Hi-Tg heavy copper foil PCB and Mixed Dielectric base PCB, HDI, rigid-flex PCB, and many other customized PCB with special performance which are widely used in Communication, power supply, computer, consumer electronics, industrial control, medical device, Aeronautics and Astronautics high technology field and spread over America, Europe and some Asia Districts, achieving their satisfication.

Ucreate has been certificated with ISO9001, ISO14001, UL from US and Canada, all of our products are with RoHS certification.

Under the mission " high quality, exact delivery, customers' satisfactions, continuous development, Common innovation ", We believe Ucreate will develop better and better with your participation.
