High Quality Abn MCCB

Name: High Quality Abn MCCB
Brand: all-electronics-online.com
SKU: 782907645
Availability: InStock
Rating: 4.4 (46 reviews)

Price:	US $ 10.00/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	50/Piece
Pay Type:	T/T,D/P,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ABN MCCB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

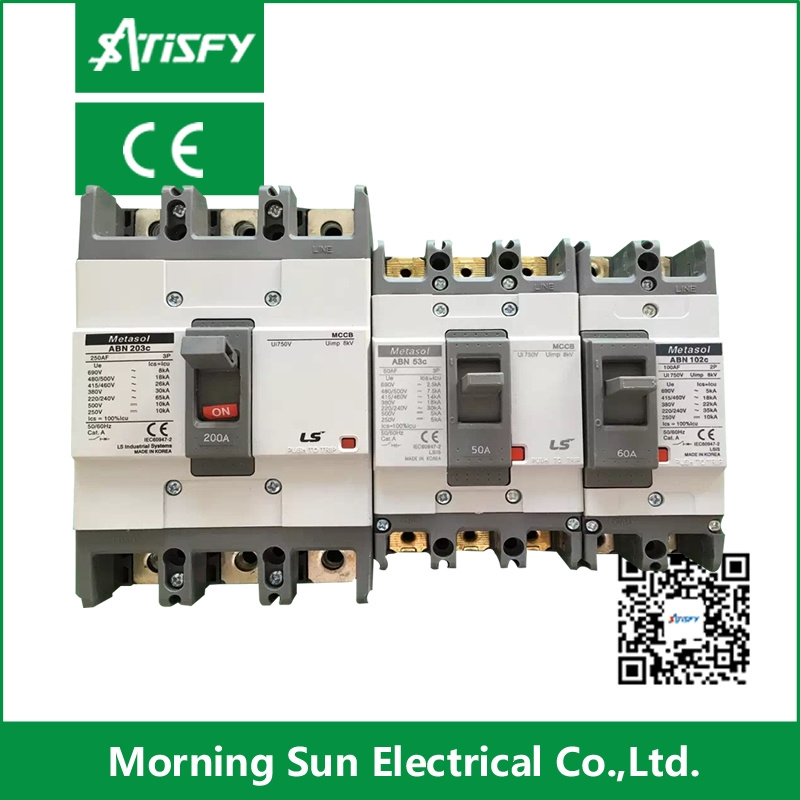

ABN moulded case circuit breaker(MCCB circuit breaker)

ABN 50AF: ABN53C15A, ABN53C20A, ABN53C30A , ABN53C40A ABN53C50A
ABN 100AF: ABN103C10A ABN103C20A ABN103C30A ABN103C40A ABN103C60A ABN103C75A ABN103C100A
ABN 225AF: ABN203C125A ABN203C150A ABN203C175A ABN203C200A ABN203C225A

AF		50AF	100AF	250AF
Type		N-type	N-type	N-type
Type and Pole	3-Pole	ABN53C	ABN103C	ABN203C
Rated current,In	A	15.20.30.40.50	15.20.30.40.50.60.75.100	100.125.150.175.200.225.250
Rated operational voltage,Ue	AC(V)	690	690	690
	DC(V)	500	500	500
Rated insulation voltage,Ui	V	750	750	750
Rated impulse withstand voltage,Uimp	kV	8	8	8
Rated short-circuit breaking capacity(Icu) kA (Sym),KSC8321,IEC 60947-2
AC	690V	2.5	5	8
	480/500V	7.5	10	18
	415/460V	14	18	26
	380V	18	22	30
	220/250V	30	35	65
DC	500V(3P)	5	10	10
	250V(2P)	5	10	10
Ics=%xIcu		100	100	100
Dimensions(mm)	WxHxD	75x130x60mm	75x130x60mm	105x165x60mm
	a	75	75	105
	b	130	130	165
	c1	60	60	60
	c2	64	64	64
	d	82	82	87
Weight,kg	Standard	0.7	0.7	1.2

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
