| Prod Model: |
f24-60 |
| Product Name: |
Joystick Wireless Crane Radio Remote Controller F |
| Protection Level: |
IP65 Joystick Wireless Crane Radio Remote Controll |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AA Battery |
| Voltage: |
6V |
| Material: |
Glass Fiber-Reinforced Nylon |
Product Description

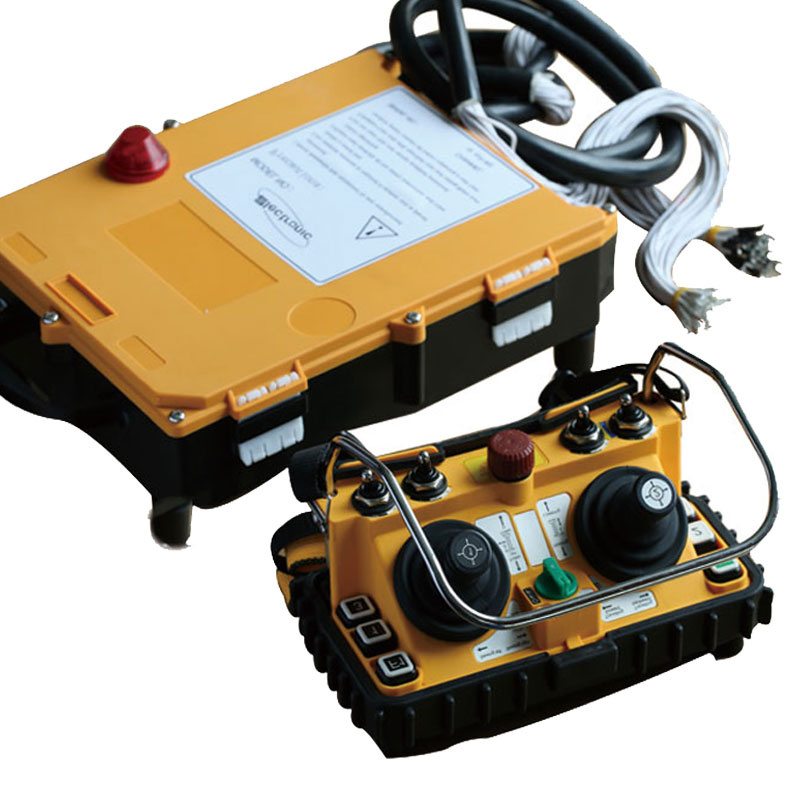

long control distance AC 220V crane radio remote control system, joystick wireless crane radio remote controller f24-60The industrial radio remote control operates exactly like the pendant but operates using a radio frequency instead of control cables attached to the crane ,the radio control system is comprised of two main components: the radio transmitter (handheld device) and the radio receiver( control box attached to crane or hoist) the radio control incorporates numerous safty features and allows the operator a greater range mobility than a pendant station| model No. | F24-60 |
| name | joystick wireless crane radio remote controller f24-60 |
| housing material | glass fiber reignforced nylon |
| button | 5 single speed button+2 five-step joystick+4 selector switch+ 1 start button+emergency button |
| transmiter size | 21.5x10.7x9.6cm/1137g |
| receiver size | 36x24x7.7cm/2478g |
| transmiter power supply | 6V (4 pieces 1.5V AA battery |
| receiver power supply | AC380V,AC36V,AC220V,AC110V,AC48V,AC24V, AC12V/DC12V,AC380V/AC220V(50-60Hz) |
| protection level | IP65 |
| temperature | -35°C ~ +85°C(regardless of the battery temperature tolerance) |
| I.D code | 43 billions |
| control distance | up to 100m ( some controller can reach to 200m) |
| frequency | VHF:310.0325-331.165MHZ UHF:425.5925-446.725MHZ |
| transmiting power | ≤15dBm |
| sensitivity | ≥-110DBm |

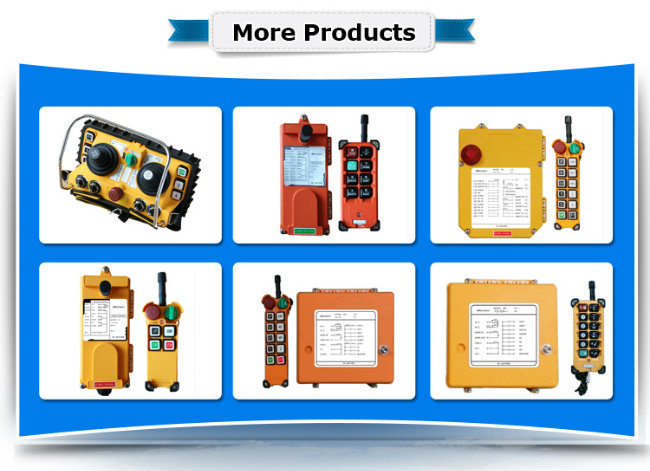

more products for your reference
long control distance AC 220V crane radio remote control system, joystick wireless crane radio remote controller f24-60

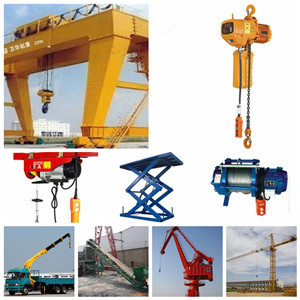

APPLICATIONlong control distance AC 220V crane radio remote control system, joystick wireless crane radio remote controller f24-60Radio remote controls are becoming more common in many industrial applications. These applications include material handling, cranes and hoists, agriculture, grain elevators, aggregates, conveyors, automation, assembly lines, railroad, mining, ship loading, recycling, waste management, military, entertainment, and rides.
Certificate
long control distance AC 220V crane radio remote control system, joystick wireless crane radio remote controller f24-60We have obtained CE , FCC certificate for our industrial wireless radio remote control ,ISO-9001:2008

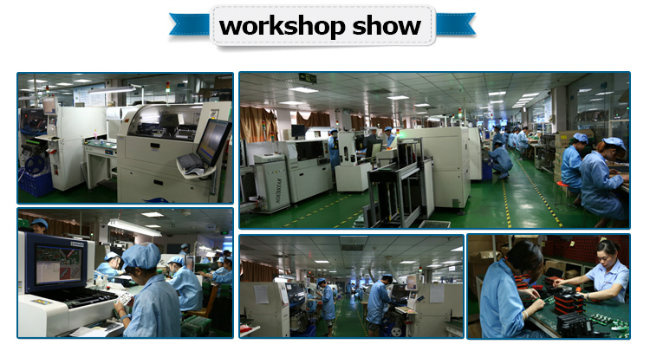

company informationHenan Yuding electronics co.,ltd was founded in 2010 years, mainly for industrial radio remote control system such as F21 serises , F24 serises ,C-E1Q, 60 etc ,production line is more than 5000sq.m ,more than 400 employee , we has build multiple internationally leading SMT production lines , BGA production lines and DIP production lines , we have obtainer ISO9001-2008 ,CE certificate and Anti-explosion certification in 2011 , on the other side ,our company accept OEM,ODM for different mainboard ,LED ,EPC,FPC etc .
FAQare you manufacturer or trading company?yes , we are manufacturer , more than 10 year experience in industrial radio remote control system we have our own R&D department , more than 15 production lines
what's your MOQ?
one set is accept for trail order
how long is the guarantee?
one year warranty , technical support always
what's your delivery time?
usually 3-10 working days according to your order quantity
how is your quality control?

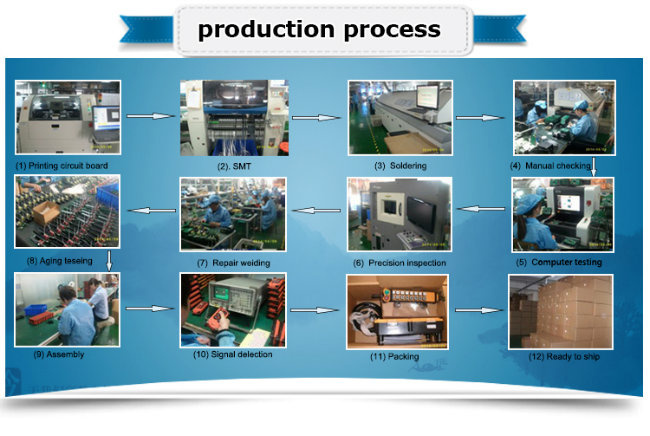

all working process according to ISO9001-2008 , each industrial radio control equipment will be checked by machines two times and by work stuff one time , total 3 times
what certificate you have ?
ISO9001-2008 , CE ,FCC
what's your payment terms?
usually by T/T , also accept western union ,L/C at sight
CONTACT US
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
