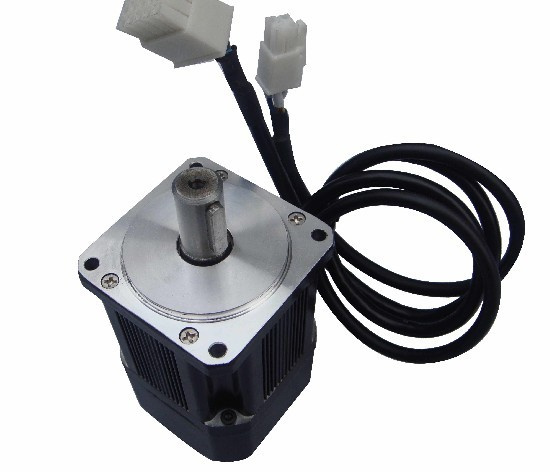

High Quality Brushless AC Servo Motor with Encoder

Name: High Quality Brushless AC Servo Motor with Encoder
Brand: all-electronics-online.com
SKU: 679877885
Availability: InStock
Rating: 4.6 (72 reviews)

Price:	US $ 150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	130ST
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Industrial:	Speed: Variable Speed
Function: Driving, Control, BV,ISO:	Number of Stator: Three-Phase
Casing Protection: Explosion-Proof Type:	Certification: ISO9001, CCC, CE,BV
Export Markets: Global:	Usage: Universal Use
Number Of Stator:	Three-Phase
Function:	Control

Product Description

130mm, 15N. M, 2500RPM.

Motor model	130ST-M15025
Rated power(KW)	3.8
Rated voltage(V)	220
Rated current(A)	13.5
Rated speed(rpm)	2500
Holding torque(N.m)	15
Peak torque(N.m)	30
Voltage constant(V/krpm)	67
Torque coefficient(N.m/A)	1.11
Rotor inertia(Kg.m)	2.77×10 -3
Phase Resistance(Ω)	0.49
Phase Inductance(mH)	1.68
Machanical time-constant(Ms)	3.43
Weight(Kg)	14.4
Encoder line number(PPR)	2500
Insulation class	Class B(130 degree)
Safety class	IP65
The operating of Evironmental Conditions	Temperature: -20 ~ +50 degree Humidity:Below 90%RH No dewing

Motor winding plue	Winding lead wire	U				V					W				PE
Motor winding plue	Plug serial numberr	2				3					4				1
Encoder plug	Signal lead wire	5V	0V	A+	B+		Z+	A-	B-	Z-		U+	V+	W+		U-	V-	W-	PE
Encoder plug	Plug serial number	2	3	4	5		6	7	8	9		10	11	12		13	14	15	1

We can design according to clients' requirements, and we provied maintenance services.
Other special requirements could contact with our technology to negotiate.
