| Prod Model: |
CAU-40R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection Level: |
IP20 |
| N-PE Lfi: |
1 |
| Shell Material: |
PA66/PBT |
| Flame Resistance: |
V0 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Poles Number: |
1 |
| Certification: |
RoHS,IEC61643-1 |
| Structure: |
SPD |
Product Description
Product Description

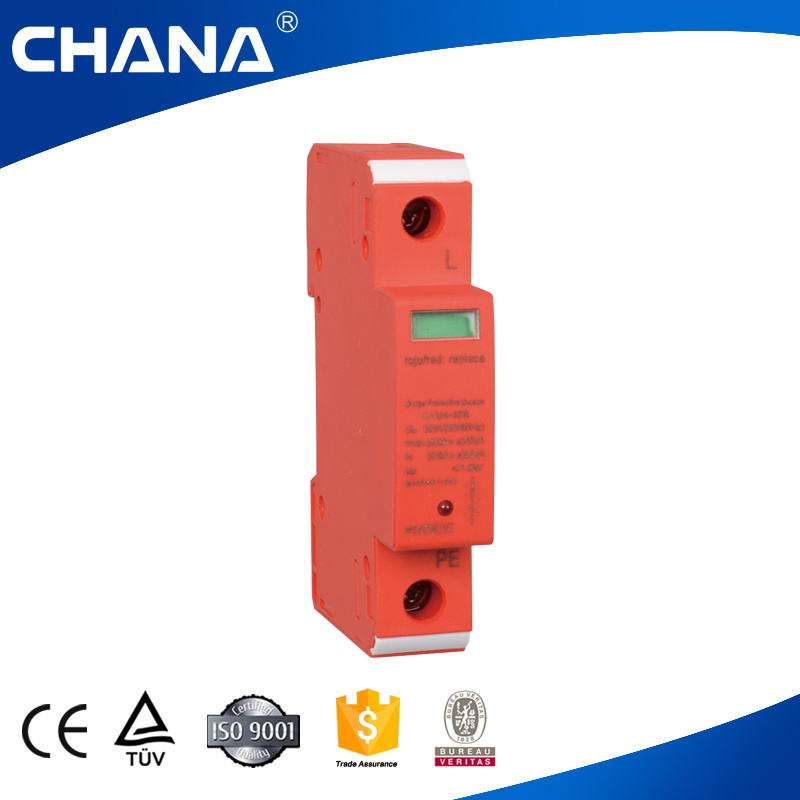

1. Hot China Products Led Display Surge Protection Device Specifications:
1. PC Material
2. Response Time: < 25 (ns)
3. Operating Voltage Uc: 385V
4. Nominal Discharge Current: 30 (KA)
5. Color: Red, Green, Yellow, White, Orange
6. All kinds of modern design used for different international market
_______________________________________________________________________________
2. Hot China Products Led Display Surge Protection Device Feature:
1. Extremely quick respond, large intake capacity
2.35mm guide rail installation, standardized module design
3. Small leakage power, long work life, simple maintenance
4. High quality pressure sensitive resistance, stable performance
5. PC retardant material: Good heat, impact and flame resistance
6. Temperature control breaker, build-in over currents fuse protector
_______________________________________________________________________________
3. Hot China Products Led Display Surge Protection Device OEM/ODM Service Offered:
1)Material, size and other requirements are
.
2)Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new ASAP.
3)Answer your question
4)Solve the problem with you during our products
_______________________________________________________________________________
4. Packing And Shipment
We can ship the goods for you by following ways:
1)By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS, China Small Package and so on.
2) By Air: We can ship from Ningbo, Shanghai, Shenzhen, Hongkong, Urumqi, Beijing.
3) By Sea: We can offer you FOB Ningbo, FOB Shanghai.
4) We also can send to your forwarder or agent in China, who can arrange shipment for you.| Model | CAU4-40R/1P,2P,3P,4P,1+NPE,2+NPE,3+NPE |
| According to EN 61643-11, SPD | Level 2 |
| According to IEC 61643-1, SPD | Level II |
| AC nominal voltage Un | 230V/4--VAC (50/60Hz) |
| Maximum continuous operating voltage (L-N) Uc | 385Vac/55Vdc |
| DC voltage parameters V1mA | 620V |
| AC maximum continuous operating voltage (N-PE) Uc | 255V |
| Nominal discharge current (8/20μs) In | 20KA |
| Maximum discharge current (8/20μs) Imax | 40KA |
| Lighning impulse current (10/350μs) (N-PE) limp | 12KA |
| Voltage protection level (L-N) Up | ≤1800V |
| Voltage protection level (N-PE) Up | ≤1500V |
| Interrupting capacity of industrial frequency current | 300A |
| (N-PE) lfi | |
| Response time (L0N) Ta | ≤25ns |
| Response time (N-PE) Ta | ≤100ns |
| Malfunction alert | Green light: normal: red light; Invalid |
| Protection level | IP 20 |
| Remote signal wiring | Normally open, normally close |
| Circuit protection | Thermal release + backup fuse release |
| Panel function | LED + green-light indicator |
| Minimum installation wire cross-sectional area | Minimum 10mm2 solid wire / multiplied yarn |
| Maximum installation wire cross-sectional area | Maximum 25mm2 flexible wire / 32mm2 multiplied yarn |
| Flame resistance | V0 |
| Installation method | 35mm DIN electric rail EN 50022 |
| Shell material | PA66/PBT |
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
