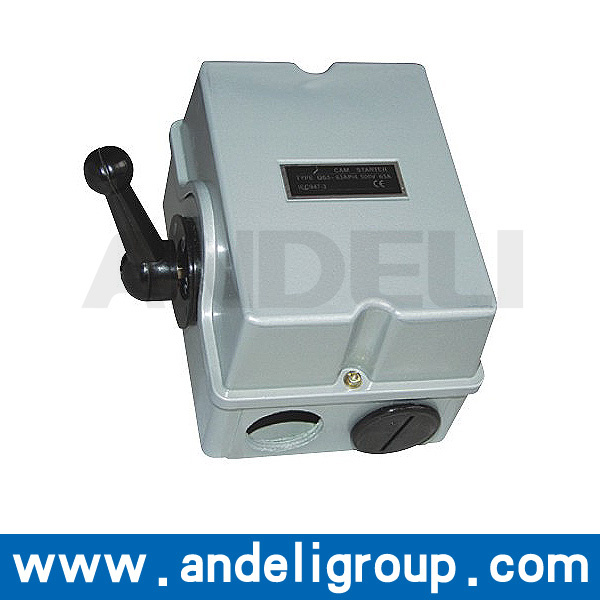

High Quality Cam Starter Switch (QS5)

Name: High Quality Cam Starter Switch (QS5)
Brand: all-electronics-online.com
SKU: 734064165
Availability: InStock
Rating: 4.6 (26 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QS5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	up to 500V
Usage:	Electrical Appliance

Product Description

Why choose us?

1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Application

QS5 cam starter is mainly used to start torward or backward and stop directly three-phase asynchronous elecric motor with AC 50/60Hz, voltage up to 500V and capacity up to 7.5KW. It can also be used for changeover from one ind of circuit to the other.

Model	Mark	Rated current (A)	Motor control capacity (HP)	Mechanical life (times)	Frequency of operation (per hr)	Applications	Position of lever
QS5-15A	I-O	15	5.5	250000	200	ON-OFF switching	0-60
QS5-30A		30	10
QS5-15N	I-O-I	15	5.5			Forward & reverse	60-0-60
QS5-30N		30	10
QS5-15P/3	I-O-II	15	5.5			for 3 pole two circuit	60-0-60
QS5-30P/3		30	10
QS5-63A	I-O	63	22	200000	180	ON-OFF switching	0-60
QS5-100A		100	30
QS5-63N	I-O-I	63	22			Forward & reverse	60-0-60
QS5-100N		100	30
QS5-63/P4	I-O-II	63	22			for 3 pole rwo circuit	60-0-60
QS5-100/P4		100

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
