Product Description
Product Descriptioncartridge heater of Mould Tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and many more.
superb heater manufacture Cartridge Heaters engineered to satisfy the full spectrum of Cartridge Heater applications. Whilst a standard range of Cartridge heaters are available, we specialise in designing and manufacturing cartridge heaters to our customers requirements. It is important to choose the correct construction heater to suit your application.
Recommended for temperatures up to 927°C
All Cartridge Heaters are available with a built in Thermocouple Type J or K

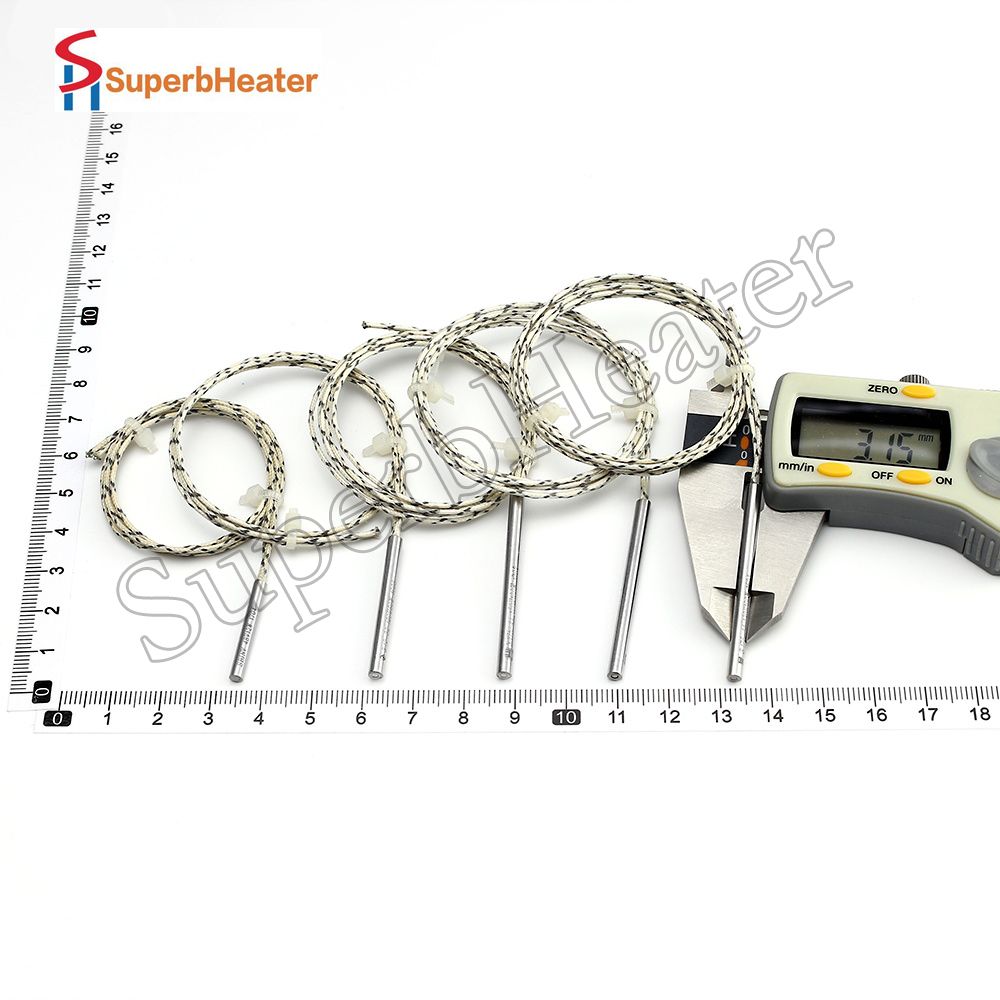

Diameter (Metric) [mm]:2.50mm;2.80mm; 3mm; 3.2mm;3.5mm;3.8mm;4mm;4.5mm;5mm; 6mm;;6.5mm;7mm;7.5mm; 8.0mm;9mm;9.53mm; 10mm;10.5mm; 11mm;12mm;12.50mm; 12.7mm; 13mm;13.50,mm;14mm; 15mm;15.88mm;16mm; 18mm; 19mm;20mm;22mm;25mm;28mm;30mm;32mm;35mm
(Non-standard can be customized)
Diameter (Inch) ["]: 1/8; 1/4; 3/8; 1/2; 5/8; 3/4 (non-standard can be customized)
Jacket Material: A stainless steel 304 321 316L B. 310S C. INCOLOY 625 ;INCOLOY 800;NCF800 INCOLOY 840.
The maximum temperature of the heating element jacket: 927 ºC

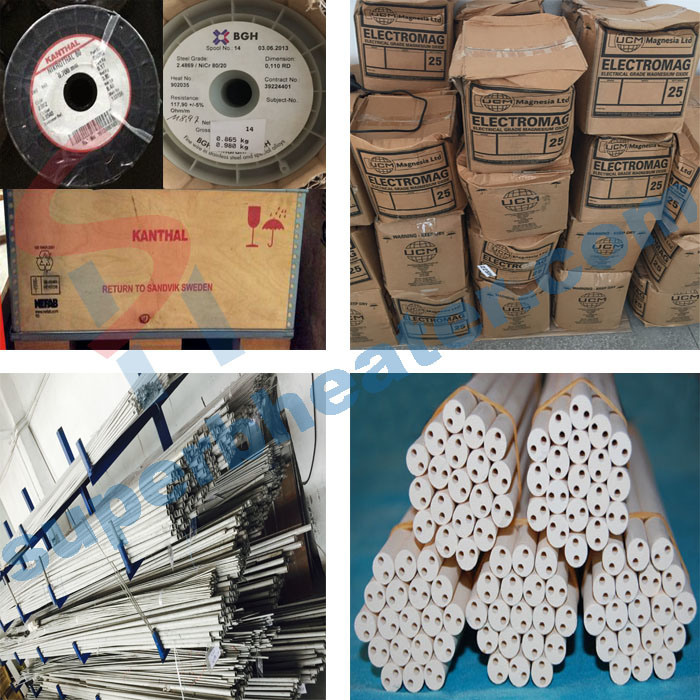

Resistive material: NiCr8020
High voltage stability (temperature) Rated voltage ≤24V -500V-DC> 24V 1500V-AC
Insulation resistance (500 [V-DC] unheated): ≥50MΩ
The maximum leakage current (253 [V-AC] unheated): ≤0.5mA
Length error: ± 0.5mm
Wattage Tolerance
+5% - 10% (closer tolerances are available upon special request)
Specification Requirements for Ordering
Input voltage: 12V-440V (non-standard can be customized)
Terminal unheated length: <3mm-20mm
Non-terminal unheated length: <3mm-20mm
Technical parameter| Tube diameter | φ2.5mm-φ35mm |
| Tolerance | -0.02mm-0.08mm |
| Tube material | SS321, SS316L, INCOLY840, Titanium |
| Insulation material | high-purity Mgo imported from USA |
| Resistance wire | Ni80Cr20 |
| Density | Max 40W/CM² |
| Operating temperature | Max 927ºC |
| Wattage tolerance | +5%,-10% |
| Electrical property | leak current is less than 0.5mA |
| Input voltage and wattage | customized as request. |
Superb Heater Technology has been focused on the production of cartridge heater since 1985, which is well-known as one of the leading manufacturers and suppliers of cartridge heater. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
