High Quality Cartridge Heating Element

Name: High Quality Cartridge Heating Element
Brand: all-electronics-online.com
SKU: 728684922
Availability: InStock
Rating: 4.9 (58 reviews)

Price:	US $ 2-5/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-CH038
Size:	12.7*130mm
Power:	140V 360W
Sheath Material:	SUS304, 321, 316, 310
Wattage Tolerance:	+5%, -10%
Resistance Tolerance:	+10%, -5%
Max Operating Temp:	800 Degree
Standard Cold Zone:	5-10mm
Heat Transfer Surface:	Tubular Heat Exchanger
Principle:	Heating Resistance Wire Heating
HS Code:	85168000

Product Description

High Quality Cartridge Heating Element

Application in Mould Tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, Etc.
All Cartridge Heaters are available with a built in Thermocouple Type J or K
Diameter (Metric) [mm]:2.80mm; 3mm; 3.2mm;3.5mm;3.8mm;4mm;4.5mm;5mm; 6mm;;6.5mm;7mm;7.5mm; 8.0mm;9mm;9.53mm; 10mm;10.5mm; 11mm;12mm;12.50mm; 12.7mm; 13mm;13.50,mm;14mm;15mm;15.88mm;16mm; 18mm; 19mm;20mm;22mm;25mm;28mm;30mm;32mm;35mm
(Non-standard can be customized)
Material: stainless steel 304 321 316L B. 310S C. INCOLOY 625 ;INCOLOY 800; INCOLOY 840.
The maximum temperature of the heating element: 900 ºC
Heating wire material: NiCr8020
High voltage stability (temperature) Rated voltage ≤24V -500V-DC> 24V 1500V-AC
Insulation resistance (500 [V-DC] unheated): ≥50MΩ
The maximum leakage current (253 [V-AC] unheated): ≤0.5mA
Wattage Tolerance: +5% - 10% (closer tolerances are available upon special request)
Input voltage: 12V-440V (non-standard can be customized)

Connecting cable::
Please note that our manufacture to customer specification. There are many lead options available, including Glass Fibre Leads, Silicon Rubber Leads, PTFE Leads, Ceramic Beaded Leads, Braided Leads and Conduits. Please advise us of the type of leads preferred. If you would like some assistance or advise on the correct lead to use, please do not hesitate to ask.
When ordering Cartridge Heaters, please specify the following information :-
1.Type of Cartridge Heater ( please refer to Termination Options ).
2.Ø of Cartridge Heater.
3.Overall length for a straight Cartridge Heaters.
4.Wattage & Voltage
5.Lead type ( glass fibre / PTFE ) & lead length.

KEY FEATURES	BENEFITS
• Main components: o High-grade nickel chromium resistance wire, o MgO core, o Stainless steel tubing, o Stranded leads with silicon-impregnated mica glass insulation, or swaged in • Special sizes, wattages, and materials are available upon request; • Custom-designed to meet your specifications. • Pin leads are available	• Easy and economical to install • Designed with first-class materials • Maximized heat transfer • Easy to maintain • Uniform temperatures • Oxidation and corrosion resistant

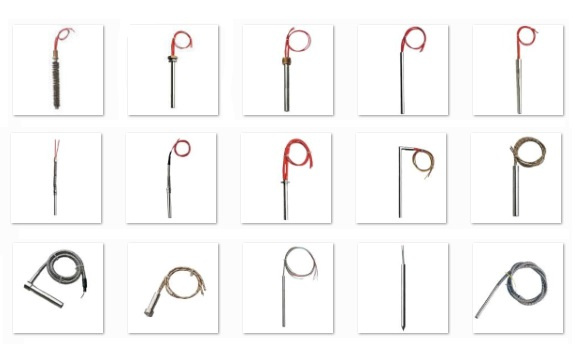

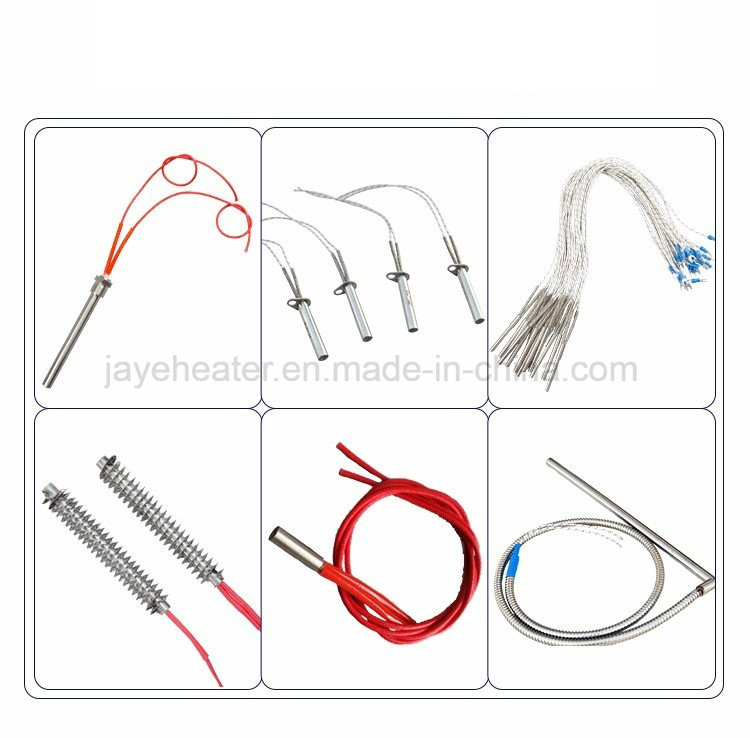

Type of Cartridge Heaters:

Structure:

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
