Product Description
1.Specs of amorphous core
1) best quality 2)competitive price 3)fast delivery 4) perfect after-sell service
2.Application of amorphous core
1) Current Transformer (CT)
2) Leakage Circuit Breakers
3) Switched Mode Power Supply
4) common mode choke
5) current sensor
6) Current switch
7) Current Probe
8) Filter Inductor
9) Amorphous Spike Blocker Cores
10) Automotive Chokes(For car audios)
3.Advantage of amorphous toroid core (Compare with EI core)
1)Smaller sizer
2)Lighter weight
3)Less magnetic leakage
4)Better over-load capacity
5)Low temperature rise
6)Easier design and mount

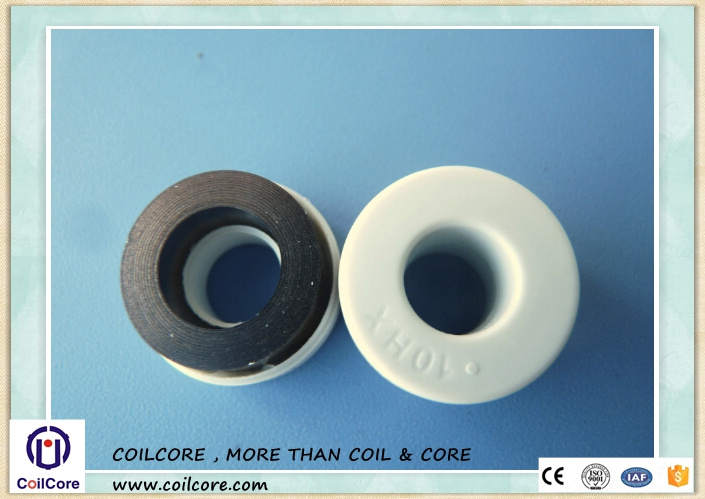

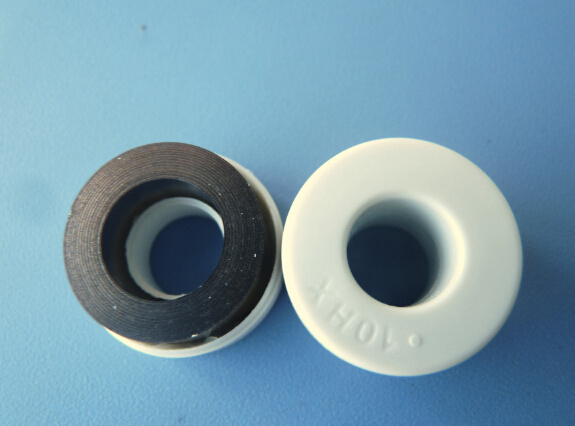

| Item Name | High quality Cased Toroids amorphous core for current transforme |
| Description | Epoxy coating amorphous and nanocrystalline cores feature small in volume and high stability. We can design the cores according to customer's requirement, both of size and performance. They are suitable for all types and applications, especially suitable for cores for common mode chokes, power transformers and current transformers.
Nanocrystalline Toroidal Cores for Common Mode Chokes feature High permeability,High indutance,easy help you treat EMI problems.
Fe-based nanocrystalline core features very high permeability, high saturation flux density, low loss makes common mode choke has large inductance with only a few turns, low copper loss and small size.
We are professional producer of amorphous core and nanocrystalline core. |
| Detail | toroidal Transformer Cores
High permeability
Excellent temperature stability
for Precision power meter
Current Overload Protection |
| Application | ? Electronic Watt hour meter
? Precision power meter
? Current overload protection in engine control
? Current control in automation industry |
| Characteristics | ? High permeability, which lead to low phase and amplitude error
? Very high saturation flux density compared with Permalloy, which bring higher measurement current range
? Low core loss
? Excellent temperature stability |
| Specification Sheet | a-core build; b-window width; c-window height;d-strip width;
e-core width;f-core length;Lm-length of magnetic path;
Ac-section area;Mass-weight; |
(1) Core for car audio
Part No. | Core dimension (mm) | Finished dimension(mm) | AL min. Idc=0 (μH) | N (Turns) | Idc (A) | Lv min. Idc=Rated (μH) |
JHL061005 | 6.5×9.8×4.5 | 5.1×11.2×5.9 | 0.12 | 50 | 0.3 | 150 |
JHL081205-1 | 8×12×4.5 | 6.3×13.8×6.5 | 0.10 | 50 | 1.5 | 160 |
JHL081205-2 | 8×12×4.5 | 6.3×13.8×6.5 | 0.19 | 38 | 1.0 | 100 |
JHL091505 | 8.5×15.3×5.0 | 7.4×16.8×6.3 | 0.21 | 36 | 1.0 | 240 |
| | | | | 2.0 | 160 |
| | | | | 3.0 | 50 |
JHL101608-1 | 10×16×8.0 | 8.3×18.2×10.3 | 0.13 | 40 | 2.0 | 150 |
(2)Core for PFC & CHOKE
Part No. | Core dimensions (mm) | Finished dimensions (mm) | AL(Idc=Rated) (μH) | Max AT(NΧIdc) |
A type (min) | B type (min) | A type (max) | B type (max) |
JHL-1608 | 10×16×8.0 | 8.3×18.2×10.3 | 0.30 | 0.10 | 26 | 75 |
JHL-1810 | 11×18×10 | 9.1×20×12.2 | 0.39 | 0.13 | 30 | 90 |
JHL-2610 | 16×26×10 | 14.2×28.5×12.8 | 0.38 | 0.12 | 42 | 120 |
JHL-3210 | 20×32×10 | 18.2×37×13.5 | 0.37 | 0.12 | 54 | 150 |
JHL-4013 | 25×40×12.5 | 22.5×42.2×16 | 0.46 | 0.15 | 67 | 200 |
JHL-5920 | 40×59×20 | 36×63×24 | 0.60 | 0.20 | 100 | 300 |
Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:
1. Common Mode Filter Chokes
2. Current Transformer
3. Differential Mode Chokes
4. Automotive Chokes (for car audio)
5. Magnetic Amplifier
6. PFC Chokes
7. ISDN Splitter
8. GFCI (Ground-Fault Circuit Interrupters)
9. ELCB (Earth Leakage Circuit Breaker)
10. ALCI(Appliance Leakage-Current Interrupters)
11. Core and Current Transformer for energy meters (Watt hour -meters )
We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.
Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
