High Quality CAT6 FTP LSZH Cable

Name: High Quality CAT6 FTP LSZH Cable
Brand: all-electronics-online.com
SKU: 794160955
Availability: InStock
Rating: 4.8 (69 reviews)

Price:	US $ 70-71/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTP-2160
Color:	Red, Black, Green, Yellow, Pink, Blue, White, Gray
Application:	Fiber Optic Cable
Conductor Material:	Copper
Type:	Cat 6
Certification:	UL
Cover Material:	LSZH ,LDPE
Model:	FTP-2160
Brand:	Tc

Product Description

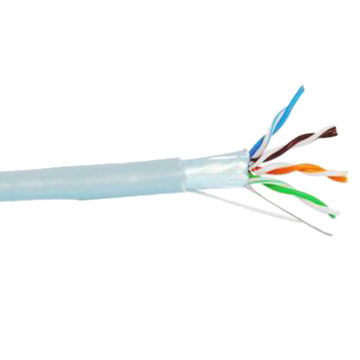

Indoor cat6 4-pair low-smoke zero-halogen (LSZH)
Foiled twisted pair (FTP)
23AWG solid/stranded copper
Insulation: PE100, 305 or 500m per roll
Jacket: LSZH ,LDPE and rip wire
Colors: red, black, green, yellow, pink, blue, white, gray, purple all colors (optional)
Conductor: bare copper, pure copper
Structure: solid or stranded (optional)
Performance range: UTP
Past fluke test: 80m Working distance up to 120m
Industrial standards: YD/T1019-2001, (the US) ANSI/TIA/EIA-568-B, (Worldwide) IEC 11801/71156
Rating temperature: 70°C
Suitable for structure and wiring
Packing ways:
100m: PE protective layer, 5 roll per carton box
305m: one roll in one carton box, two carton boxes in one master carton
500m: wooden roll package, carton box as outer package

Trust our over 26 years' experience

ISO-compliant UL, RoHS and REACH marks OEM/ODM services

Operating since 2002

Shanghai Tiancheng Communication Technology Co. Ltd was established in 2002. We belong to TC Smart System Group, which is committed to intelligent building of wiring products, IP network audio and video broadcast products, wiring harness products, light device product R&D, designing and manufacturing.

Specialized in Network Cabling Broadband Products

We are located in Songjiang Industrial Park. At present, we are not only a one of the leading industries in R&D, production and testing equipment, but also we are built with high-end equipment research and development laboratory. At the same time, we have years of experience in network cable broadband products development, production and management of professional personnel.

Holding More than 10 Years of Experience

With 10 years of trials and hardships, we, through the unremitting efforts and pursuit of all employees, achieved many honors, and have become one of the industry leaders. In various fields, we created numerous works of classic models, high-grade projects and higher shares, such as the Beijing 2008 Olympic Games main venue - the National Stadium, or the bird's nest, the Olympic Village, "TC Smart System Group", and have become the mainstream brands of weak electricity cabling in local areas.

Contact us today to know more.
