High Quality CATV Coaxial Cable (RG6-60BVM)

Name: High Quality CATV Coaxial Cable (RG6-60BVM)
Brand: all-electronics-online.com
SKU: 619757412
Availability: InStock
Rating: 5 (133 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6-60BVM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	1.02+/-0.01mm Copper/CCS
Dielectric:	4.57+/-0.05mm Foam PE
First Shield:	Bonded Aluminum Foil
Second Shield:	1640.16+/-0.005mm Al-Mag Braiding 60% Coverage
Jacket:	6.90+/-0.10mm PVC
Messenger:	1.15+/-0.05mm CCS(1.30 Steel)
Application:	RF Cable
Cover Material:	PVC
Certification:	RoHS
Conductor Material:	Al-Mag Braiding
Type:	Coaxial
Wire Core Material:	Copper/CCS
Model:	RG6-60bvm

Product Description

CATV Coaxial Cable (RG6-60BVM)

Application
These kind of cables are serving for existing and next generation TV network and security monitoring and control systems.

Construction
Center Conductor: 1.02+/-0.01mm Copper/CCS
Dielectric: 4.57+/-0.05mm Foam PE
First Shield: Bonded Aluminum Foil
Second Shield: 16*4*0.16+/-0.005mm Al-Mag braiding 60% coverage
Jacket: 6.90+/-0.10mm PVC
Messenger: 1.15+/-0.05mm CCS(1.30 Steel)

CATV Coaxial Cable(RG6-60BVM)
Construction
Item	Construction
Center Conductor	1.02±0.01mm Copper/CCS
Dielectric	4.57±0.05mm Foam PE
First Shield	Bonded Aluminum Foil
Second Shield	1640.16±0.005mm Al-Mag braiding 60% coverage
Jacket	6.90±0.10mm PVC
Messenger	1.15±0.05mm CCS(1.30 Steel)
Jelly/APD	Per customer's special requirement

Electrical Characteristics
Impedance(Ω)		75±3
Capacitance(pF/Ft)		54±3
Velocity of Propagation(%)		85.0
Return Loss		20dB min (5-3000Mhz)

Application
These kind of cables are serving for existing and next generation TV network and security monitoring and control systems.

Company Link: http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

Company Information

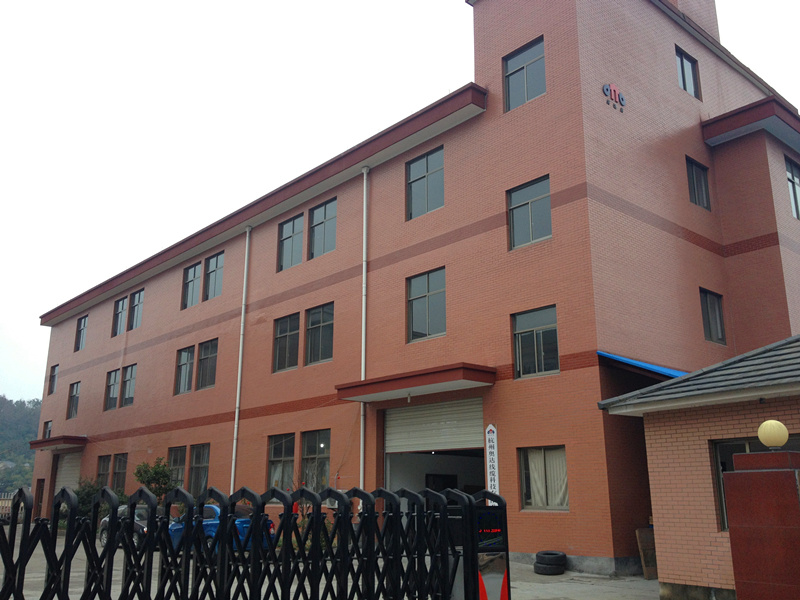

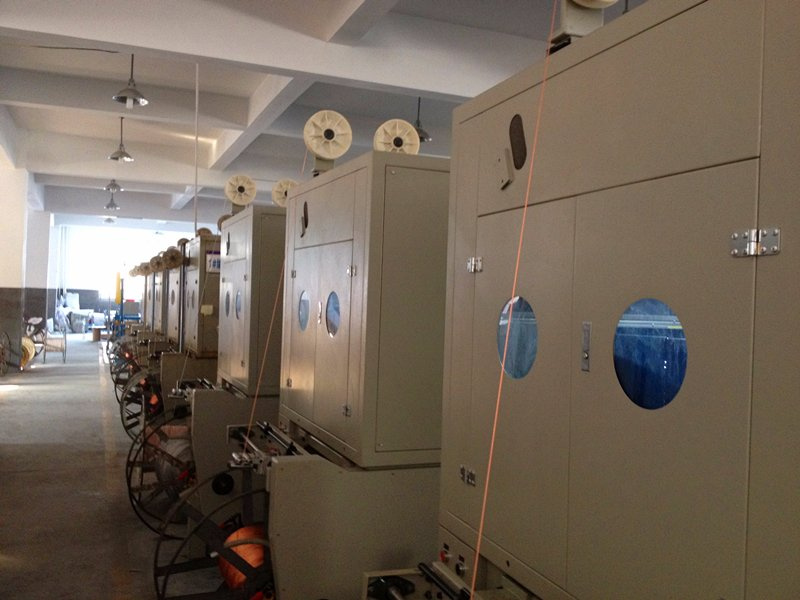

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
