High Quality Cjx2-0910 AC Contactor

Name: High Quality Cjx2-0910 AC Contactor
Brand: all-electronics-online.com
SKU: 780308725
Availability: InStock
Rating: 4.3 (70 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2-0910
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	9A
Frequency:	50/60Hz
Voltage:	380V

Product Description

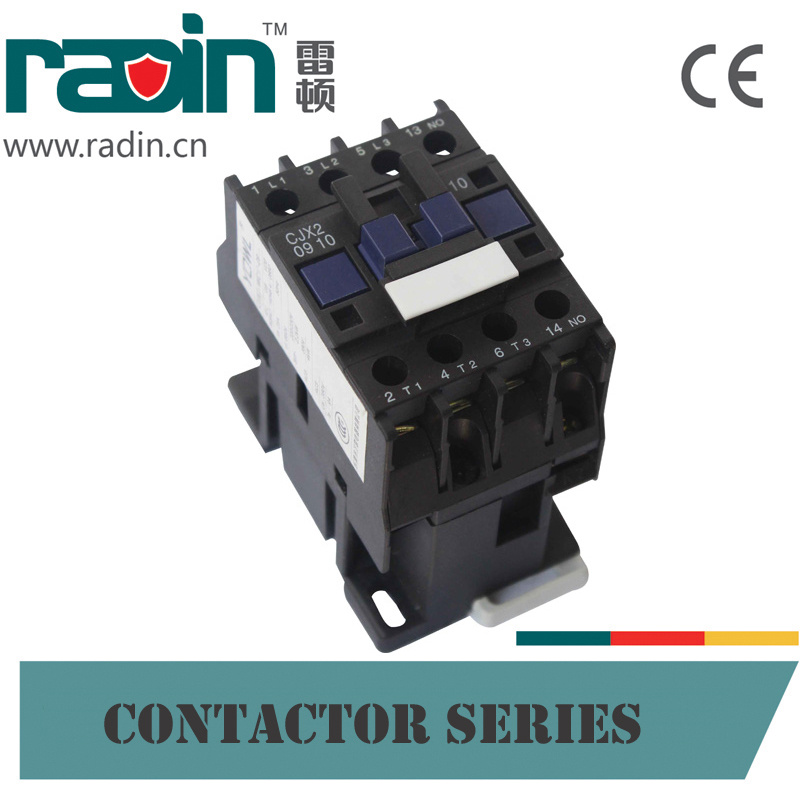

CJX2-0910 AC Contactor

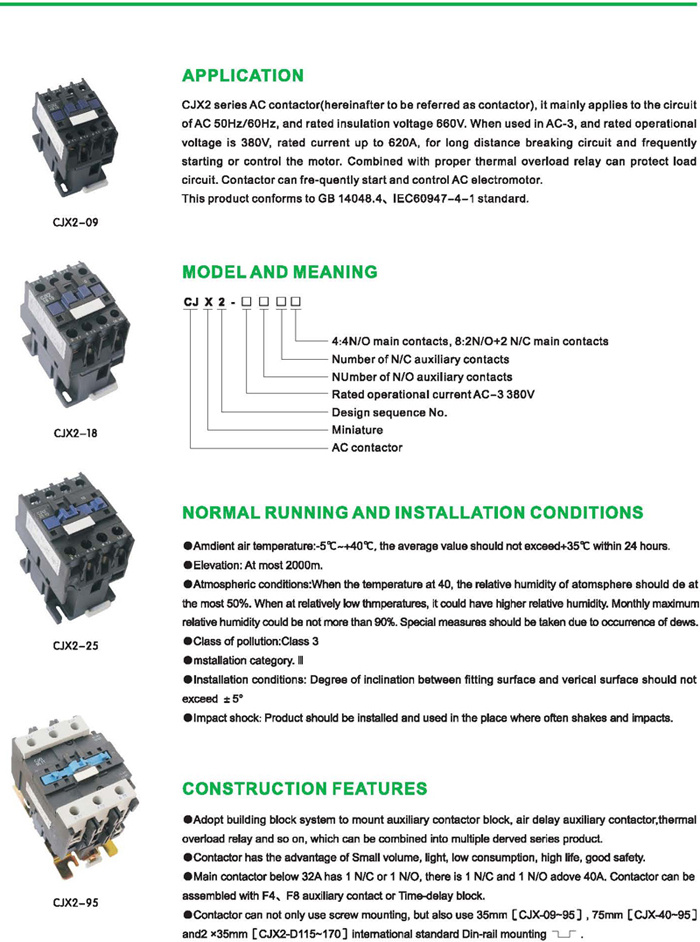

Application

CJX2 Series AC contactor is mainly applies to the circuit of AC 50Hz/60Hz, and rated insulation voltage 660V. When use in AC-3, and rated operational voltage is 380V, rated current up to 630A, for long distance breaking circuit and frequently starting or control the motor. Combined with proper thermal overload relay can protect load circuit. Contactor can frequently start and control AC electromotor.

Construction Features

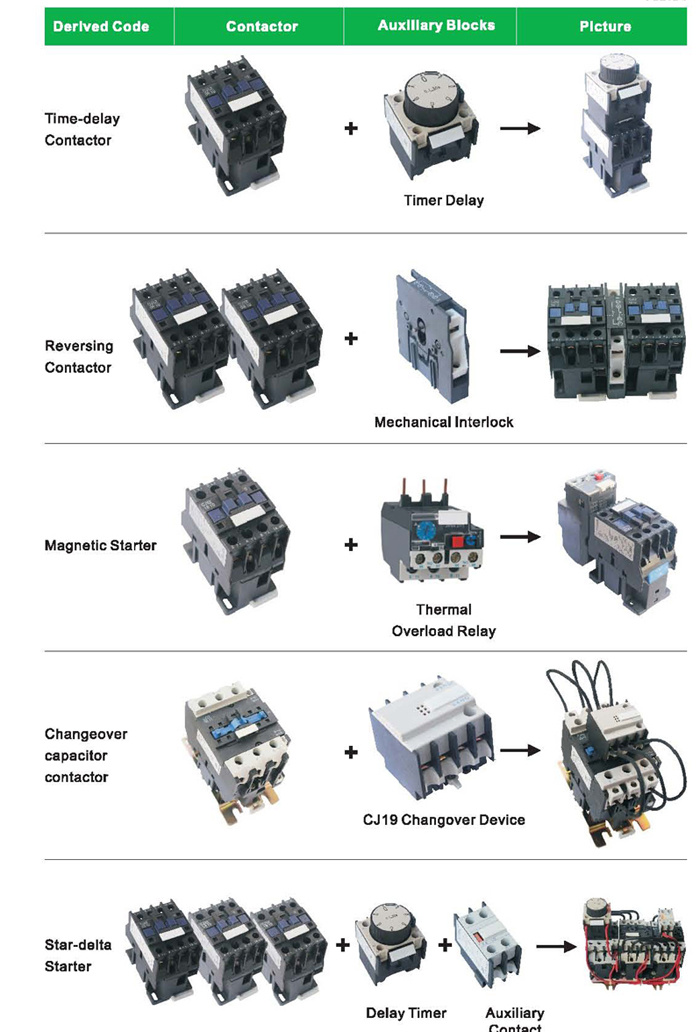

1. Adopt build-in block system to mount auxiliary contractor block, air delay auxiliary contractor, thermal overload relay and so on, which can be combined into multiple derved series product.
2. Contactor has the advantage of Small volume, light, low consumption, long life and good safety.
3. Main contactor below 32A has 1N/C or 1N/O, there is 1N/C and 1N/O above 40A, Contactor can be assembled with F4, F8 auxiliary contact or time-delay block.
4. Contactor can not only use screw mounting, but also use 35mm(CJX2-09-95), 75mm (CJX2-40-95) and 2x35mm (CJX2-D115-170) international standard Din-rail mounting

Radin electric is specialized in manufacturing a full range of low-voltage distribution products, which includes PATENTED dual power automatic transfer switches(ATS), PATENTED control and protective switching devices(CPS), load break switch(LBS), circuit breaker and etc. Together with it's sister company C-lin, we are able to provide a full catalog of electrical engineering products which meet the world market demands & standard.

Radin electric is a China and German joint venture for products manufacturing and service center. After its traditional surge protection device (RADIN) SAFE-PRO, according to the Chinese power electric situation and market demand, successfully launch RDQ series dual power automatic transfer switch and RDW series intelligent air circuit breaker and other suitable product to the market. RADIN have strict quality control system for each step of product design, manufacturing, storage, transportation and technical service, to ensure every product reach customer in perfect conditions. And meanwhile a professional, effective technical support & service team provide every customer a complete pre-sale to after sale service.

In China, RADIN products provide the most powerful secure to the safety of power transmission and distribution system, end-user and professional equipment etc. We continuously build different level working agent and service station, in order to provide more well service in place to all customers. Meanwhile, we will keep hard working, to use our advanced technology to provide customers with a more perfect, more professional surge protection device and electric products for power transmission and distribution system.
