| Prod Model: |

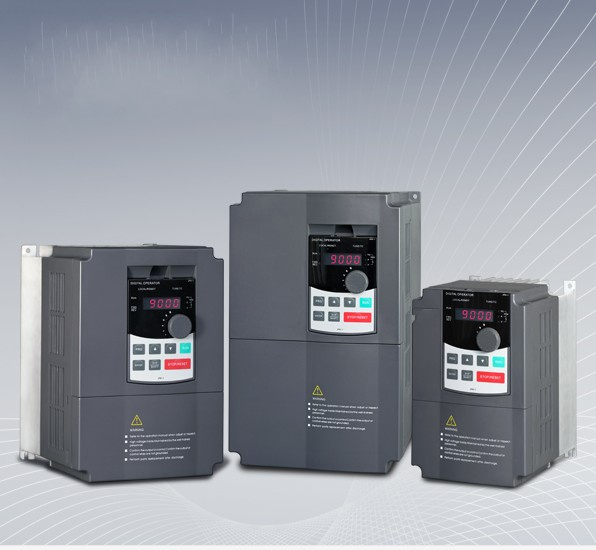

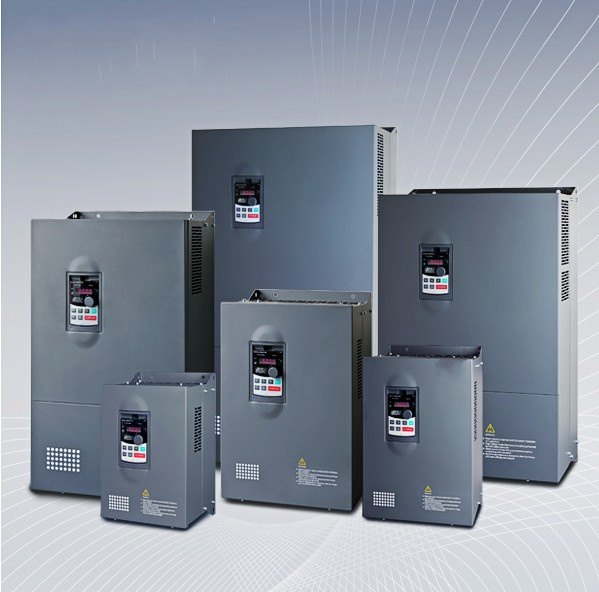

Frequency Inverter for Single Phase Motor |
Product Description
Sensorless single phase output inverter
| Input | Input voltage | 1AC 220V±15% |
| Input frequency | 47~63Hz |
| Output | Output voltage | 0~Rated voltage |
| Output frequency | V/f:0~3000Hz, SVC:0~300Hz |
I/O terminals
| Input terminals | Programmable DI: 7 on-off inputs,
1 high-speed pulse input
2 programmable AI:
AI1: voltage -10~10V
A12: voltage 0~10V or current 0/4~20mA |
| Output terminals | 1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output)
2 relay outputs
2 analog output: 0/4~20mA or 0~10V |
| Communication terminal*2 | Offer RS485 communication interface, support MODBUS-RTU communication protocol |
Control Feature
| Control mode | V/f , SVC, VC, Torque control |
| Operation command mode | Keypad control, Terminal control, Serial communication control |
| Frequency setting mode | Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes. |
| Overload capacity | G model: 150% 60s, 180% 10s, 200% 3s
P model: 120% 60s, 150% 10s, 180% 3s |
| Starting torque | 0.5Hz/150% (SVC),1Hz/150% (V/f)
|
| Speed adjustment range | 1:100 (SVC), 1:50(V/f)
|
| Speed control precision | ±0.5% (SVC) |
| Carrier frequency | 1.0--16.0kHz, automatically adjusted according to temperature and load characteristics
|
| Frequency accuracy | Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.05%
|
| Torque boost | Automatically torque boost; manually torque boost 0.1%~30.0% |
| V/f curve | Three types: straight line, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square) |
| ACC/DEC mode | Linear/S curve; four kinds of ACC/DEC time, range 0.1s~3600.0s |
| DC braking | DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~36.0s; Braking current: 0.0%~100.0% |
| Jog operation | Jog operation frequency: 0.0Hz~maximum frequency
Jog ACC/DEC time: 0.1s~3600.0s |
Simple PLC & multi-step
speed operation |
Max. 16 steps speed running via built-in PLC or control terminal. |
| Built-in dual PID | Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.) |
| Automatic voltage regulation | Keep output voltage constant automatically when input voltage fluctuating |
