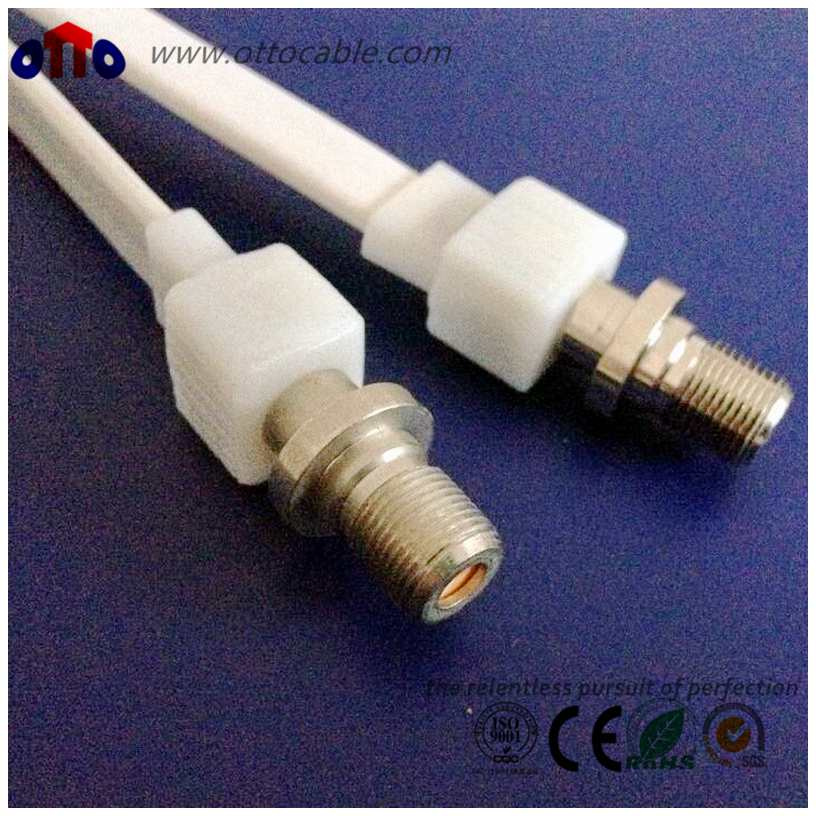

High Quality Coax Flat Cable Flat Wire

Name: High Quality Coax Flat Cable Flat Wire
Brand: all-electronics-online.com
SKU: 766527315
Availability: InStock
Rating: 4.8 (75 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Flat Wire
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	Flat Wire
Inner Conductor:	0.50CCS/Bc
Insulation:	2.30foam PE
First Shield:	2.40bonded Aluminum Foil
Second Shield:	2.90al-Mg/Tc Wire Braid
Jacket:	4.20mmpvc
Application:	RF Cable
Cover Material:	PVC
Certification:	RoHS
Conductor Material:	Al-Mg/Tc Wire Braid
Type:	Coaxial
Wire Core Material:	CCS/Bc
Model:	Flat Wire
Brand:	Ottocable

Product Description

FLAT WIRE

Overview
This 75 Ohm MINI RG59 is the most commonly coaxial cable used in existing and next generation TV network and security monitoring and control systems.

Features
·         75 Ohm data signal transmission;
·         The inner conductor could be Copper Clad Steel or Bare Copper;
·         The insulation is foam PE or solid PE;
·         Customized cable color , winding and connector, meet your different requirements;
·         RoHS compliant;
Assemblies & Application
This 75 Ohm RG59 coaxial cable can be fixed with kinds of connectors,such as F,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to existing and next generation TV network and security monitoring and control systems.

CATV/MATV Coax Cable

FLAT WIRE

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Insulation First Shield Second Shield Jacket	CCS/BC Foam PE Bonded Aluminum Foil AL-Mg/TC Wire Braid PVC	0.50 2.30 2.40 2.90 4.20	Per customer's requirements: The inner conductor could be CCS or BC; The second shield could be 48,64,80 or 96 AL-Mg /TC wires braiding;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C)

75±3
54±2
84.0
1.6
≤1.2
≥20
≥85
25.0
-25 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
50 100 200 600	21.8 24.2 27.2 38.5

More Ideas
1)  If require conventional construction and materials, please click FLAT WIRE;
2)  If require two-way transmission, please click MINI RG59 DUAL;
3)  For more FLAT WIRE assemblies,you can choose FLAT WIRE ASSEMBLIES;
4)  Any other requirements or queries, please click CONTACT US.

Company Link: http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

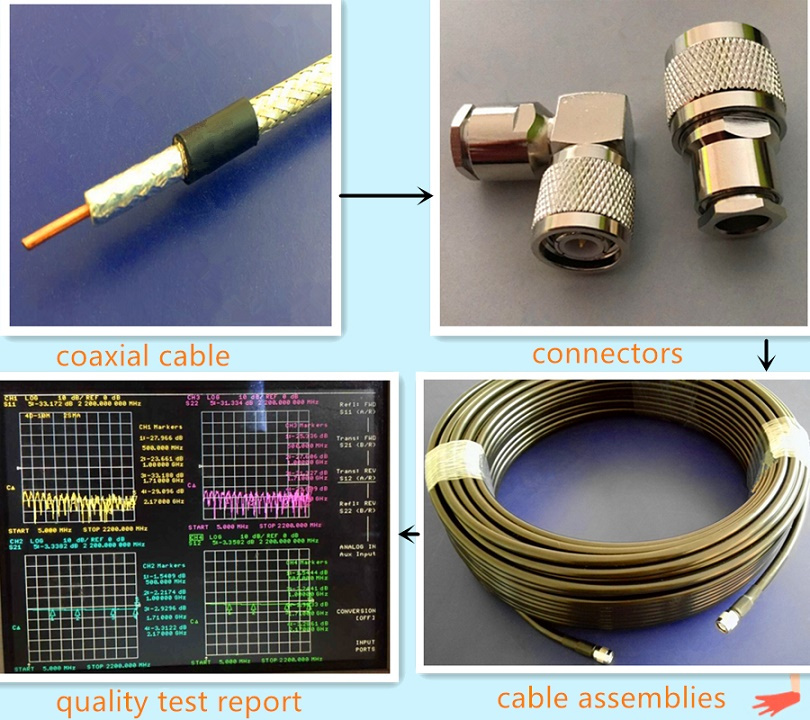

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
