High Quality Coaxial Cable 50 Ohm Rg213 Cable

Name: High Quality Coaxial Cable 50 Ohm Rg213 Cable
Brand: all-electronics-online.com
SKU: 700300265
Availability: InStock
Rating: 4.9 (41 reviews)

Price:	US $ 0.55-0.65/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	rg213 cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Type:	Rg213 Cable
Inner Conductor:	7/0.75 mm Stranded Bare Copper
Dielectric:	7.25 mm Solid Polyethylene
Shield:	Bare Copper 90% Coverage
Jacket:	10.3 mm Black PVC
Color:	Black
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial
Model:	Rg213 Cable
Brand:	Xingfa

Product Description

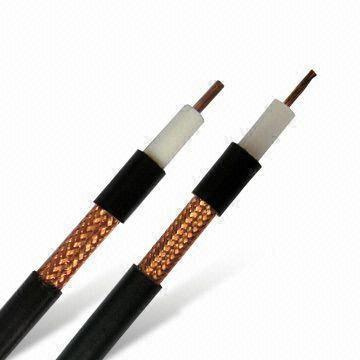

High quality coaxial cable 50 OHM rg213 cable

Construction

Center Conductor: 7*0.75mm Strand copper

Dielectric: 7.25mmSolid PE

Braid: Tin/BC Copper

Braid Coverage: 95%

Jacket: 10.1mm+0.1mmPVC

Characteristics

Sparker Test: 4000VAC

Impedance: 50+3 Ohm

Capacitance: 30.8+3pF/m

Velocity of Propagation: 66.0%

Attenuation {@68 * F.(20 * C.)}

Attenuation:

Frequency (MHz) Maximum (dB/100 ft.)

100 2.20

400 4.60

1000 9.00

Packing
1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll

2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available

More Cables & Products
Cables:

1) 75 ohm Coaxial Cable RG6, RG59, RG11;
2) 50 ohm Coaxial Cable RG174, RG58, RG8, RG213, RG214;
3) Siamese CCTV Cable RG59+2C, KX6+2C, RG6+2C;
4) Combo Coaxial Cable RG6+Cat5e, RG6+CAT5E+Messenger etc;
5) LAN Cable/Network Cable UTP/FTP Cat5e, Cat6, Jumper Cable;
6) 1 pair/2 pairs Telephone Cable;
7) Security Alarm Cable, Fire Alarm Cable, Speaker Cable;
8) Optical Fiber Cable (GYXTY, GYXTW, ADSS, FTHH etc.);
9) 50 ohm RF Feeder Cable 1/4"S, 3/8"S, 1/2"S, 1/2", 7/8", 1-1/4", 1-5/8".

Cable Related Products:

1) Coaxial Cable Connector (F, BNC, RCA, Female, Male);
2) Cable Crimping Tool, Wire Stripper, Insertion Punch Tool;
3) Optical Transmission Equipments, CATV amplifier, Taps, Splitters.

We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.

Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.

We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.

Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.

"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
