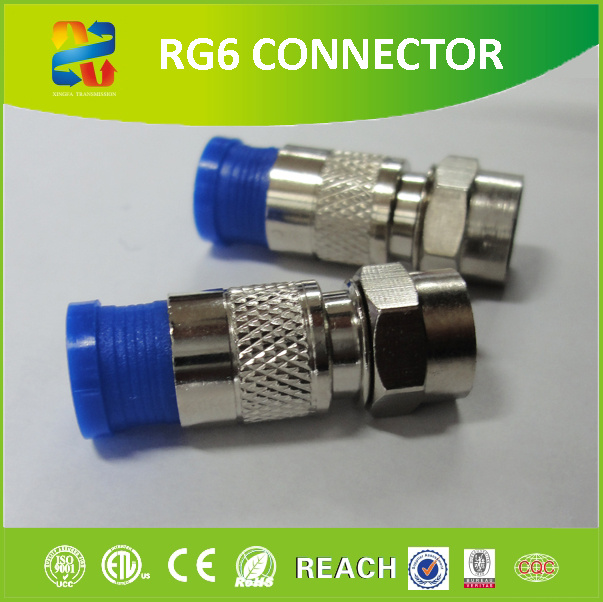

High Quality Coaxial Cable Connector RG6 Compression F Connector

Name: High Quality Coaxial Cable Connector RG6 Compression F Connector
Brand: all-electronics-online.com
SKU: 700236255
Availability: InStock
Rating: 4.8 (27 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	rg6 compression F connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Plastic and Copper
Working Voltage:	170V Max
Frequency Range:	0~1GHz
Temp-Range:	-40°c~+60°c
Durability:	500 Cycles
Installation:	Wire Stripper and Crimping Tool
Type:	Generally Coaxial Connector
Application:	Coaxial Cable
Interface Type:	F

Product Description

compression F connector Construction

1.Manfactured of ROHS brass with nickel plating of superior protection against v-corrosion
2.Designed to be watertight for outdoor applications
3.Offer excellent RFI shielding properties
4.easy-grip free-spinning nut for fast installation and installer comfort
5.Universal for standand .tri-shield or quad-shield RG6 coaxial cable

compression F connector Characteristics
1.Part No. : HT8482-06
2.Material: Brass or zinc alloy /nickle or zinc plating
3.Waterproof with O-ring
4.OEM/ODM accepted
5.Application: Telecom,Radios,Broad cast, Coaxial cable,CATV

Temp-range		-40°C~+60°C
Impedance		75Ω
Frequency range		0~1GHz
Center conductor withdrawal force		≥0.49N
Contact resistance	Center conductor	≤6mΩ
	Outer conductor	≤1mΩ
Insulation resistance		≥1000MΩ
Withstand Voltage	At sea level	750V
Working voltage		170V max
VSWR	Straight	≤1.20
	Angle	≤1.30
Durability		500 cycles

We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.

Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.

We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.

Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.

"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
