High Quality Coaxial Cable Rg59

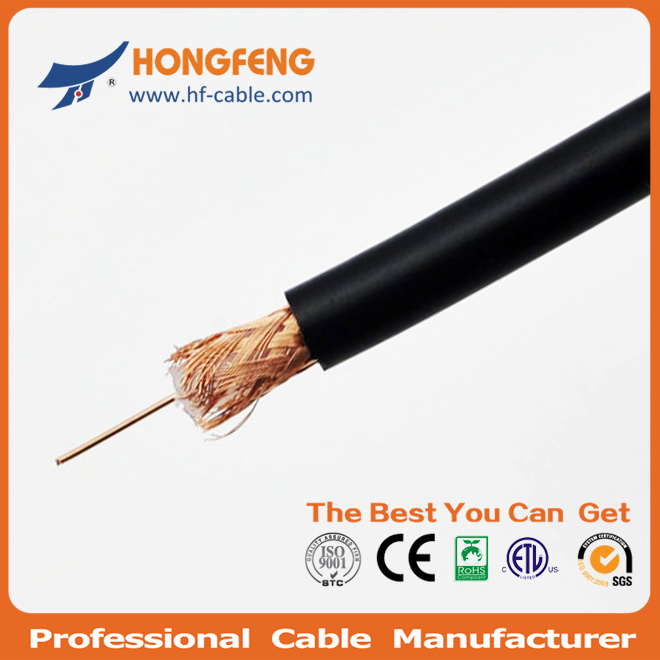

Name: High Quality Coaxial Cable Rg59
Brand: all-electronics-online.com
SKU: 745228495
Availability: InStock
Rating: 4.6 (72 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB
Min Order:	30000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG59
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	Bc/CCS
Conductor Od:	0.81mm
Dielectric:	3.66mm Fpe
1st Shield:	Ai Foil
2ND Shield:	Bc/Ai Braiding
Shielding Coverage:	40%-95%
Jacket:	6.1mmpvc/PE
Color:	Any Color
Impendence:	75ohm
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Certification:	UL
Cover Material:	PVC/PE
Type:	Coaxial Cable
Wire Core Material:	Bc/CCS
Model:	Rg59
Brand:	Hf

Product Description

Product Description
Catv coaxial cable rg59

Basic Info.
Model NO.: RF coaxial cable
Application: Local Communication Cable
Conductor Material: Copper
Type: Coaxial Cable
Cover Material: PE
Certification: CE
Jacket: PVC
Jacket Color: Black/White/Color
Impedance: 75 Ohm
Braid Shied Material: Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
Inner Conductor: CCS, CCA, Cu
Inner Conductor Diameter: 0.81mm
Certificate: ISO9001, Cl2/CATV/Cm UL
Dielectric: 3.66mm
Insulation Material: Bonded/Non Bonded
Jacket Diameter: 6.1mm
Export Markets: Global
Additional Info.
Trademark: Hongfeng cable
Packing: 100m/Roll, 200m/Roll, 305m/Roll, 100yard/Roll,
Standard: Rg11 rg59 rg6
Origin: China
HS Code: 85442000
Production Capacity: 100, 000kms/Year
Product Description
1. RG11 RG59 RG6 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome

2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
