GZ Theodoor Tech Co., Ltd. >> High Quality Cop 4.21 Smart Operation Hybrid Air Source Heat Pump Water Heater

High Quality Cop 4.21 Smart Operation Hybrid Air Source Heat Pump Water Heater

High Quality Cop 4.21 Smart Operation Hybrid Air Source Heat Pump Water Heater
Price: US $ 1000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Heat Temperature: 50-70°c
Heat Source: Air-Source
Application: Villa Family, Hotels, Beauty Salons
Housing Material: SUS 304 Stainless Steel
Solar Coil: Stainless Steel 304
Working Temp: -10-43 Degrees
Work Environment: Common Heat Pump
Heat Exchanger: SUS 316 Stainless Steel
Compressor: Panasonic
Auto Defrost: Yes

Product Description

ModelRS-3.6FAD/150LRS-3.6FAD/190LRS-3.6FAD/260LRS-3.6FAD/300L
Rated Input Power0.7 KW0.7 KW0.7 KW0.7 KW
Rated Heating Capacity2.8 KW2.8 KW2.8 KW2.8 KW
Rated current3.2A3.2A3.2A3.2A
Power Supply220V/50HZ
RefrigerantR134a (1100g)
CompressorPanasonic / Rotary  for R134a
Outlet water temperature60 ºC (highest temperature= 70ºC)
COP (EN16147 standard)2.86 in 7ºC; 3.88 in 15ºC; 4.21 in 20ºC
Certification obtainedCE, EN16147CE, EN16147CE, ErP, EN16147CE, EN16147
Capacity of Water Tank150L190L260L300L
Exterior casingBrused stainless steel SUS304  (0.6mm thickness)
Inner water tankStainless steel SUS304  (1.5mm thickness)
Condenser coilStainless steel SUS316L  (9.52mmX0.7mmX30m)
Expansion valveElectronic expansion valve
Evaporator6CTJ (480mm*64.5mm*350mm)
VentilationCentrifugal (input power 65W)
Air flow450m3/h
Air duct sizeφ150mm
Electric resistance2KW
Working range with resistance-15ºC-43ºC
Working range without resistance-7ºC-43ºC
Anti-corrosion for water tankMagnesium anode (φ21mm×450mm)
Anti Legionella/anti disease Water heated up to 70ºC
Size650mmX1350mm650mmX1485mm 650mmX1790mm650mmX1890mm
Net Weight72Kg83Kg98Kg110Kg
Noise46dBA



Theodoor Company is a professional manufacturer engaged in the research, development, production, sale and service of Air curtain, Heat pump water heater and ventilating system. We supply many series of products, suitable for different environments; With superior performance, attractive design and fine workmanship. Theodoor has gained ISO9001 international quality management system and ISO14001 Environmental management system certification. The products are qualified with CCC, CE, RoHS and UL certifications.

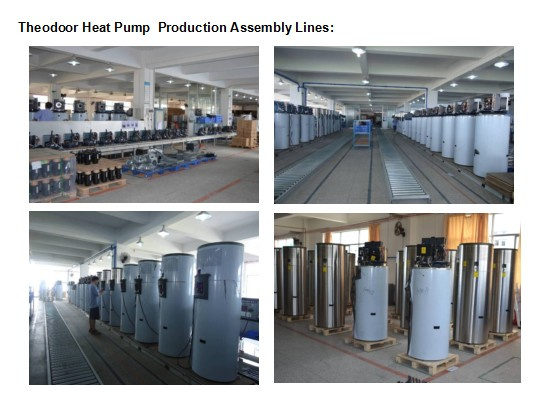

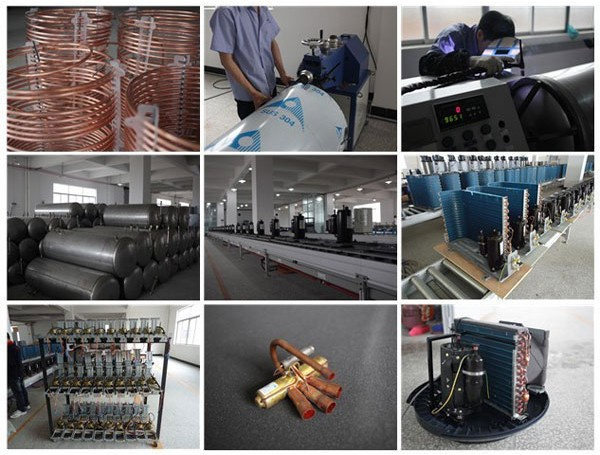

Theodoor pays great attention to absorb and integrate the advanced technologies, there are professional assembly lines, Motor manufacturing workshop and Numerical Control Workshop in the factory. Using the advanced mould machines and equipments in state of the art technologies which provide a solid basis for putting creative ideas into reality, and has enabled us to ensure the product performance and reliability. At every stage, from raw materials to the end products we insist on results: Safety, efficiency, energy saving and environmental protection. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss the requirements and ensure full customer satisfaction.

Theodoor products not only have good sales in China market but also received a good reputation around the world. Up to now, we have established a wide marketing network and stable friendship with many customers and it's our hope to develop long term cooperation and promote mutual benefit.
