High Quality Copper Coaxial Cable Rg213

Name: High Quality Copper Coaxial Cable Rg213
Brand: all-electronics-online.com
SKU: 609304094
Availability: InStock
Rating: 4.7 (38 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SH-RG213
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package:	100m/Roll 200m/Roll 305m/Roll 500m/Roll
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Rg213
Model:	Coaxial Cable Rg213
Brand:	Fulsan

Product Description

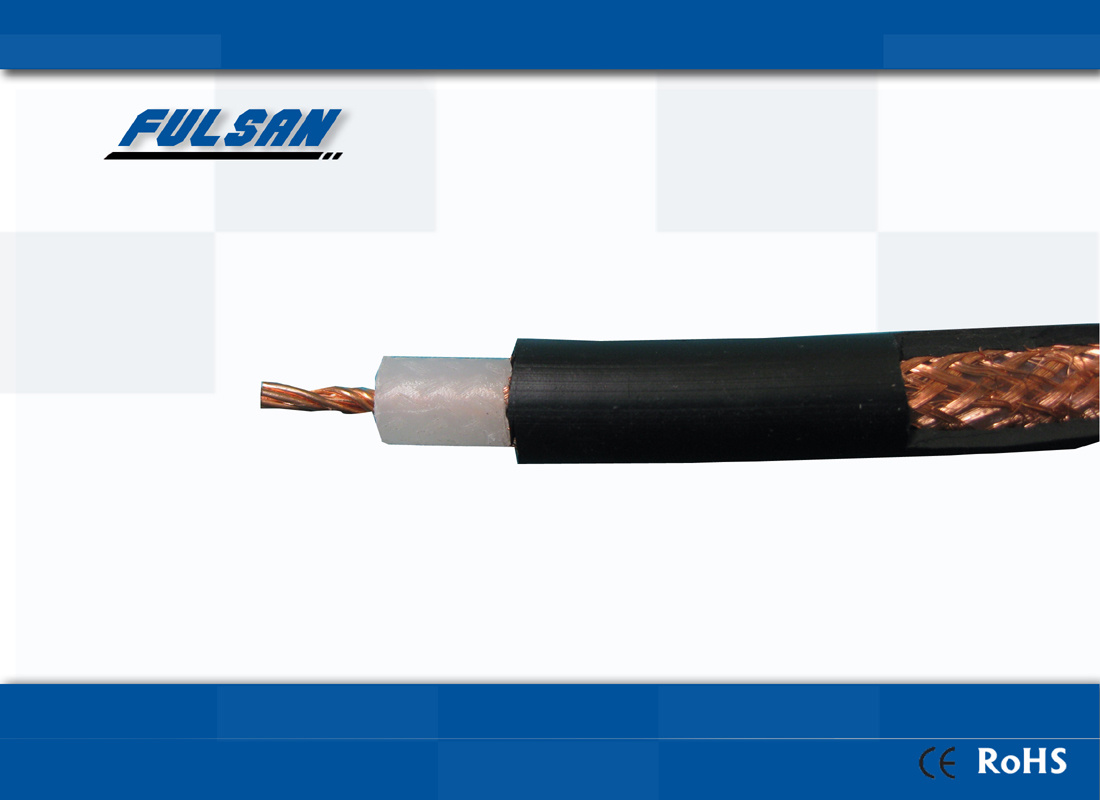

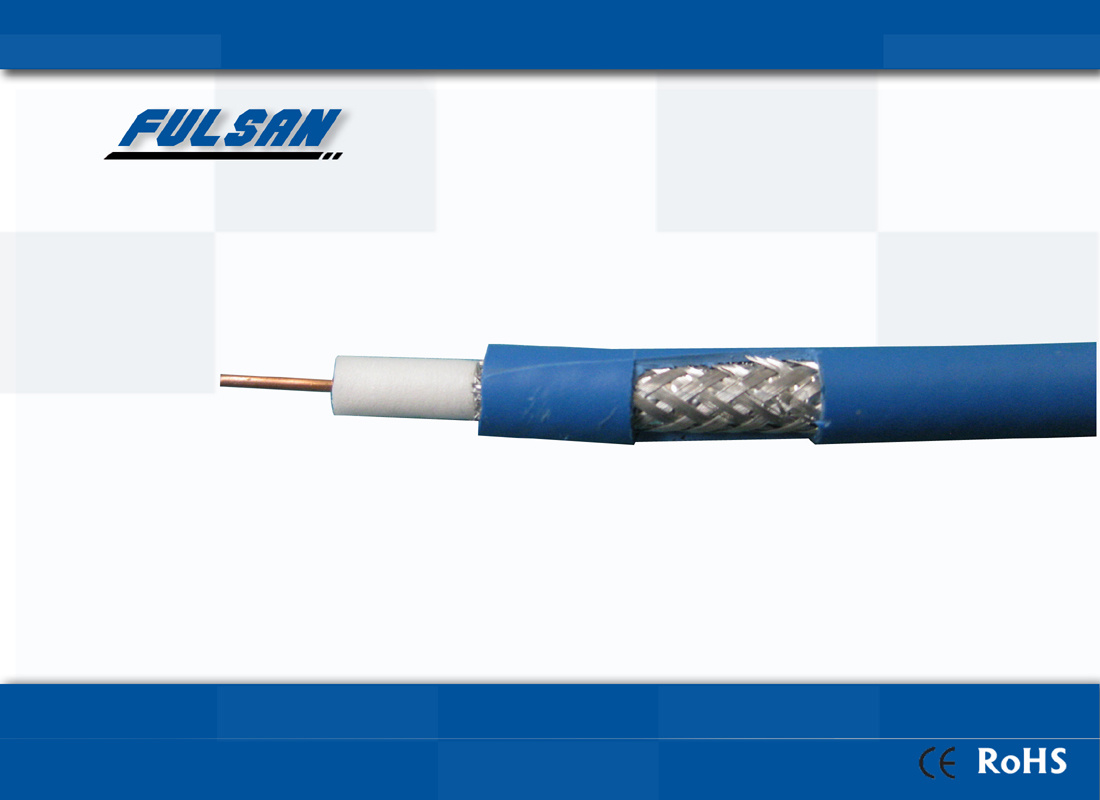

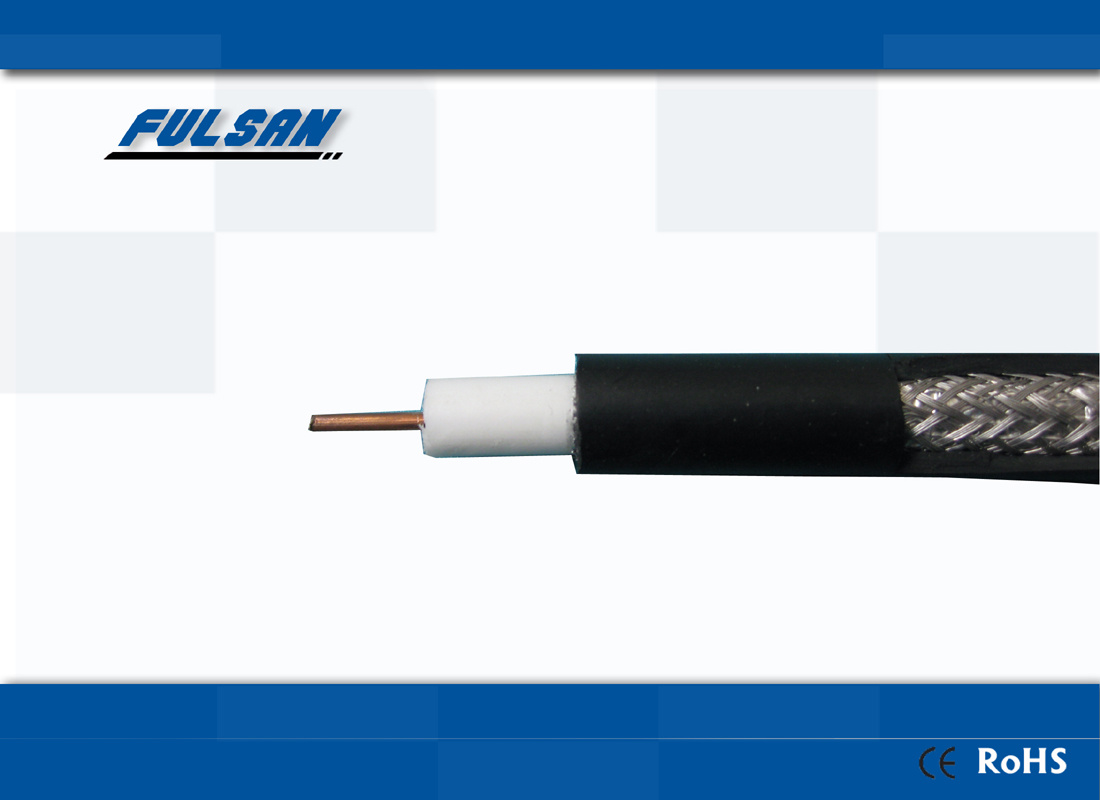

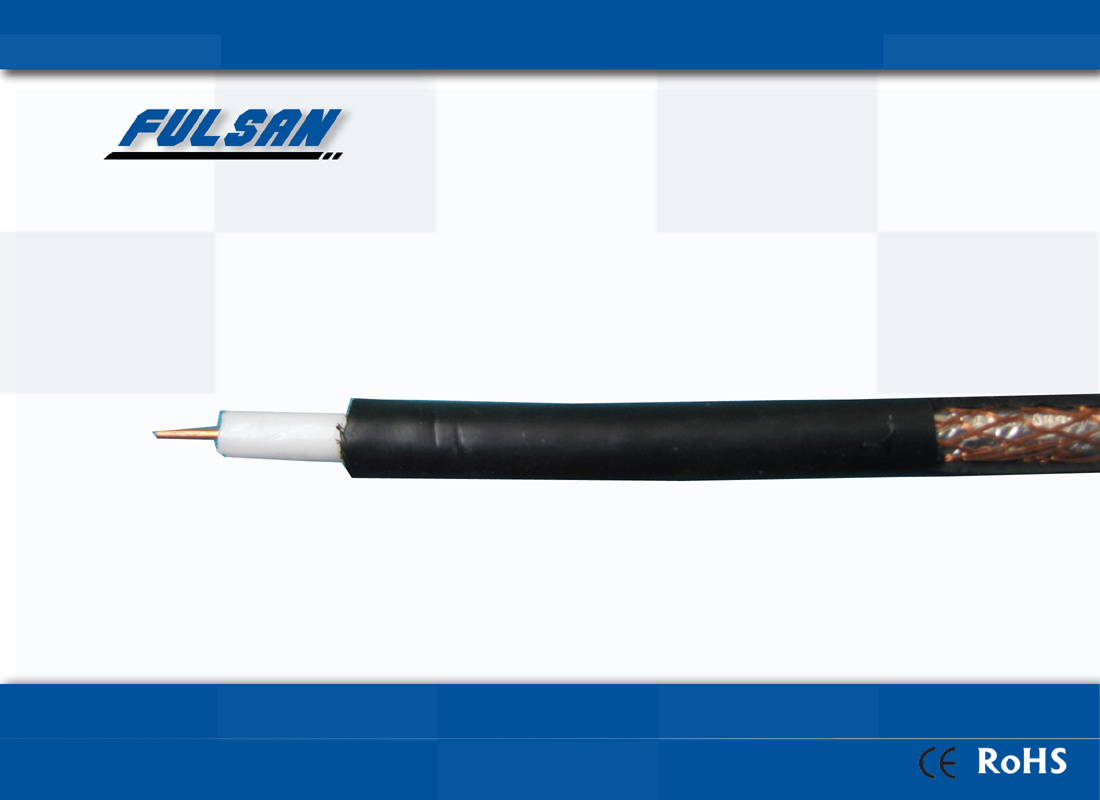

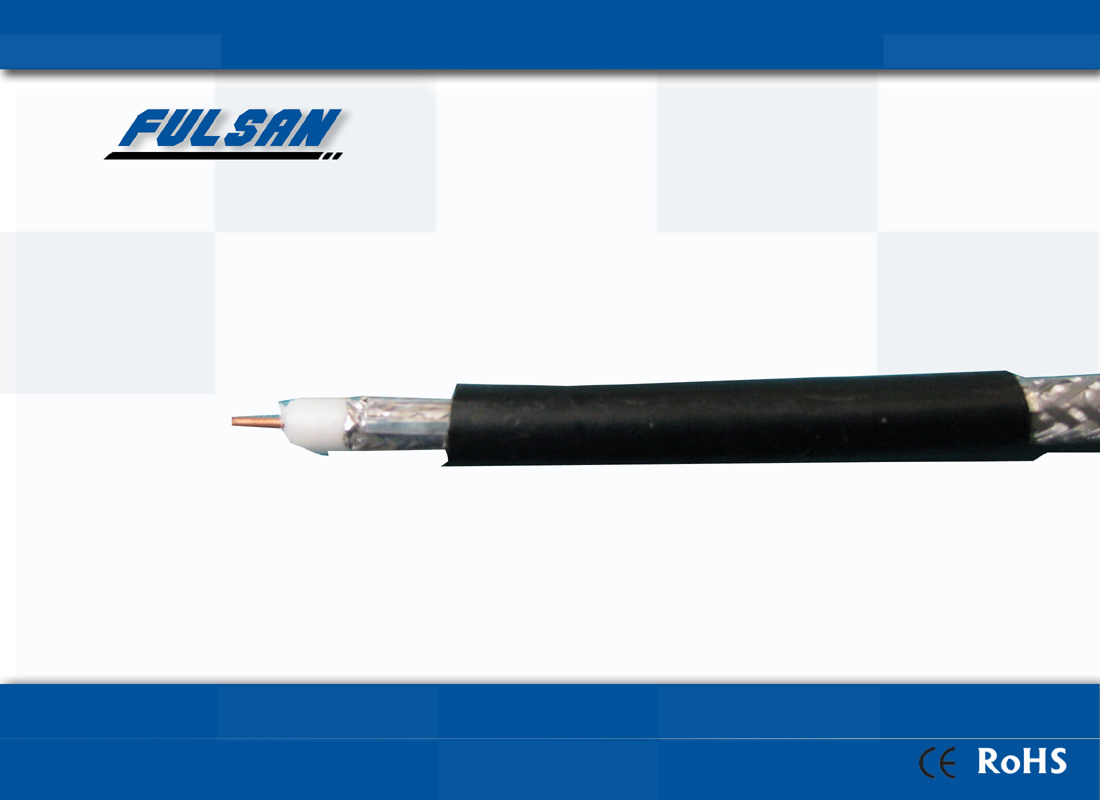

High Quality Coaxial Cable(RG213):

Specifications:
1)7X0.75mmBareCopper+7.24mmSolid PE+96%BareCopperBraiding +10.3mmPVC(or PE)
2) Customers' specifications are welcomed

Note:
1) Center conductor: Tinned Copper, and Bare Copper available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 70- 97% available;
7) PVC jacket of Flame retardant, UV, or UL available.

Characteristics:
Impedance: 50+/-2 Ohm
Velocity of Propagation: 66%
Capacitance: 30.8pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ] dB/100meters
10MHz: 1.80dB 400MHz: 15.10dB
20MHz: 2.80dB 500MHz: 16.20dB
50MHz: 4.40dB 8000MHz: 21.50dB
100MHz: 6.80dB 1000MHz: 24.50dB
200MHz: 9.70dB

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

Usage: Securitity alarm
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
