| Prod Model: |
Electric Wire |
| Rated Voltage: |
300/500V,450/750V |
| Standard: |
IEC, JIS, BS, Asin, DIN and So on |
| Color: |
Required |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Solid or Stranded |
| Application: |
Building or Constrction |
| Range Of Application: |
Home or Building |
| Brand: |
Rmjt |
Product Description

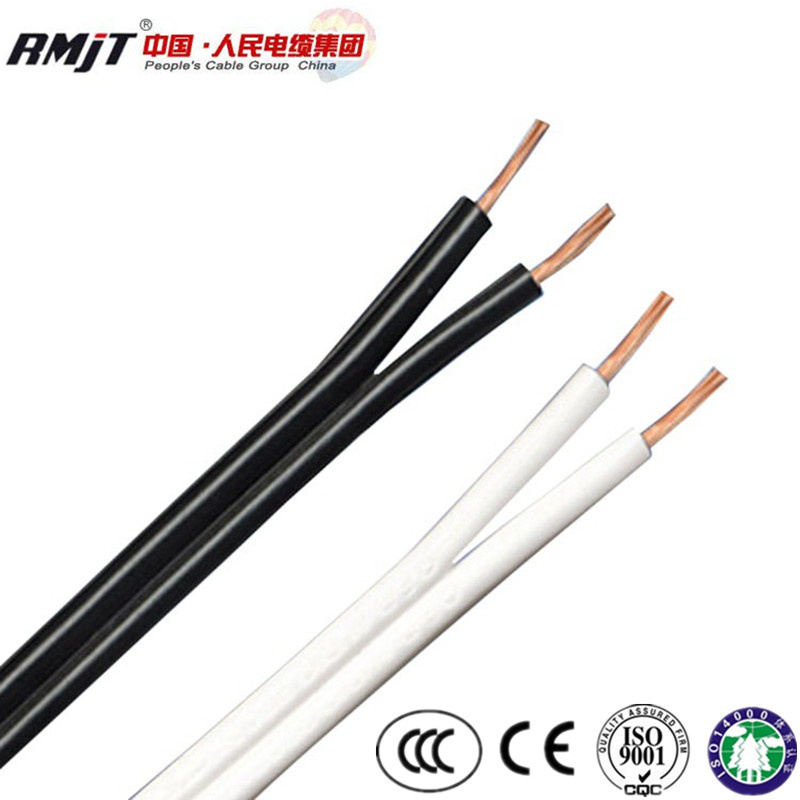

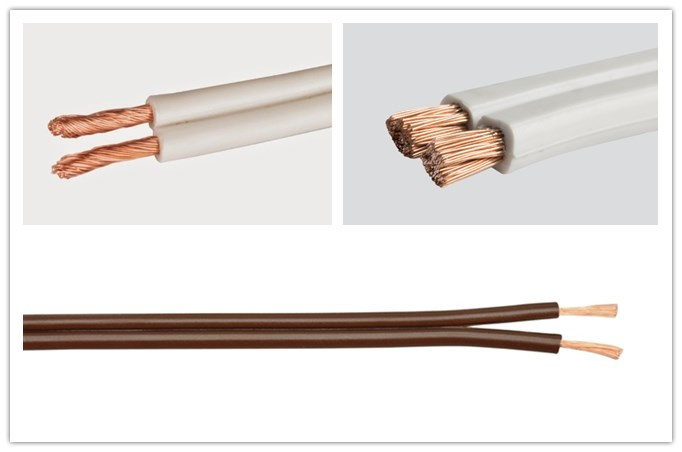

ApplicationsParallel SPT cable is indended for use in household appliances, including clocks, lamps, radios and fans, which is suitable for use at temperatures not exceeding minimum -20° C or maximum 105° C.
SpecificationConductor: Copper
Insulation: PVC
Cores: 2 cores, 3 cores
Conductor size: 0.5mm2~2.5mm2; 10 / 12 / 14 / 16 / 18 /20 AWG
Rated Voltage: 300V
Color: White, Black, Yellow, Red, Blue, etc
Package: Ploy Bag, Paper Box, Plastic Spool or as your rquest.
TypeSPT-1: Thermoplastic, parallel-jacketed, light duty cord use in damp locations, 300V
SPT-2: Same as SPT-1, but heavier construction, 300V
SPT-3: Same as SPT-2, but heavier construction, 300V
| Reference Standard: UL 62 approved | Rated Voltage: 300V | Rated Temperature: 60°C -105°C |
| Conductor: Stranded Bare Copper/copper clad Aluminum (CCA) | Insulation : PVC |
| | AWG/No.of cores | NO./Normal Diameter of strand(mm) | Normal Thickness of Insulation(mm) | Over Diameter of Cable(mm) |
| SPT-1 | 20 x 2c | 21/0.18 | 0.78 | 2.55 x 5.1 |
| 18 x 2c | 41/0.16 | 0.76 | 2.7 x 5.4 |
| 18 x 3c | 41/0.16 | 0.76 | 2.7 x 8.0 |
| SPT-2 | 18 x 2c | 41/0.16 | 1.14 | 3.4 x 6.8 |
| 16 x 2c | 65/0.16 | 1.14 | 3.7 x 7.4 |
| 18 x 3c | 41/0.16 | 1.14 | 3.5 x 8.6 |
| 16 x 3c | 65/0.16 | 1.14 | 3.8 x 9.6 |
| SPT-3 | 18 x 2c | 41/0.16 | 1.52 | 4.4 x 8.7 |
| 16 x 2c | 65/0.16 | 1.52 | 4.8 x 9.5 |
| 14 x 2c | 41/0.254 | 2.03 | 6.0 x 12.0 |
| 12 x 2c | 65/0.254 | 2.41 | 7.4 x14.0 |
| 10 x 2c | 105/0.254 | 2.79 | 9.1x18.2 |
| 18 x 3c | 41/0.16 | 1.52 | 4.4 x 10.7 |
| 16 x 3c | 65/0.16 | 1.52 | 4.8 x 11.8 |
| 14 x 3c | 41/0.254 | 2.03 | 6.0 x 14.5 |
| 12 x 3c | 65/0.254 | 2.41 | 7.4x16.5 |
| 10 x 3c | 105/0.254 | 2.79 | 9.1 x 18.8 |

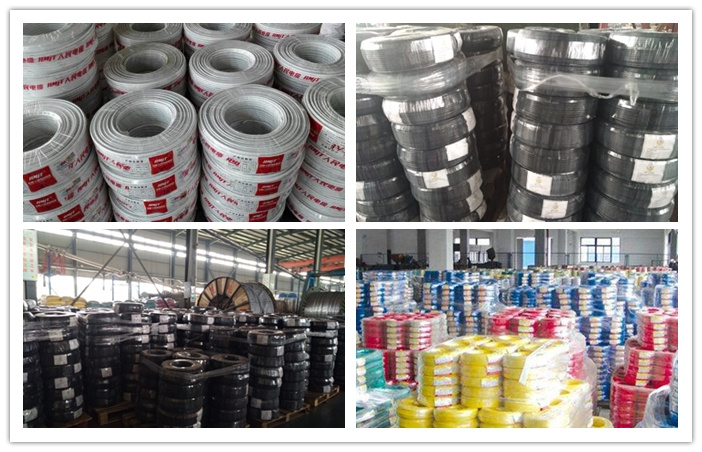

Electric Wire Package

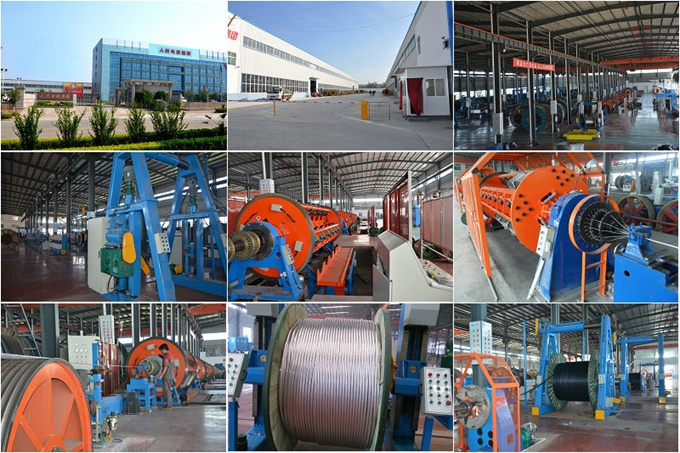

About UsPeople's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
1--pvc insulated electric wire whatever copper conductor,aluminum conductor, CCA(copper clad aluminum), CCS(copper clad steel).
2--pvc and xlpe insulated power cable with or without armor upto 35kv.
3--rubber cable like welding cable, mine cable, EPR cable and so on.
4--aerial bundled cable(ABC cable) up to 10kv.
5--bare conductor like AAC, AAAC, ACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire, PC steel wire and so on.
Customer VisitWe have a professional sales team with each of them has engaged in this job for 3-10 years,
so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service,till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
FAQ:
I didn't find the cable which I need in this page?
If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Are you a trading company or manufacture?
RMJT is a professional manufacturer in Henan, China.
What is the MOQ?
Mostly we sell from stock for normal items, you can buy any quantity unless its customed-made.
Can you offer me a free sample?
Yes, after price confirmation, you can require for samples to check our quality.sample is free but the freight charge should be paid.
How long get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days
How is your package?
Normally packed with coils and cartons, and wooden/steel wooden drums, other ways can be done according you.
How is the payment?
T/T, L/C is accepted.
What is the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
