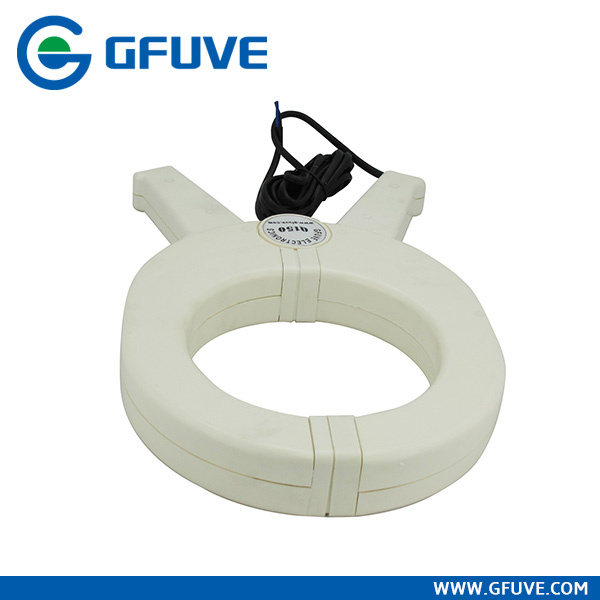

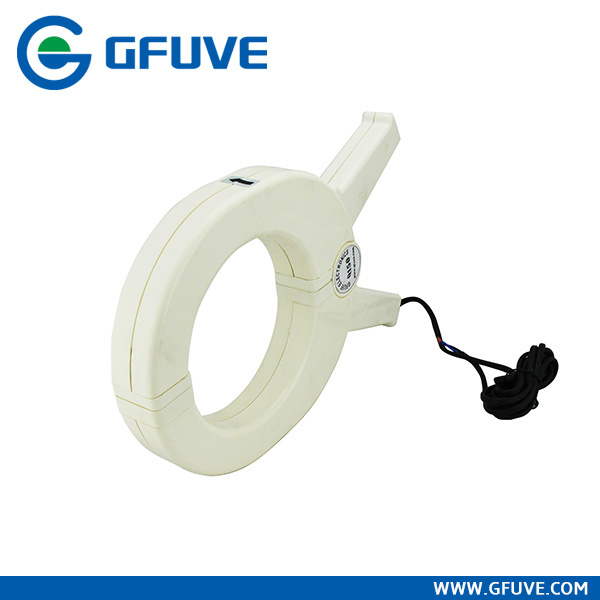

High Quality Current Clamp Sensor

Name: High Quality Current Clamp Sensor
Brand: all-electronics-online.com
SKU: 688872892
Availability: InStock
Rating: 4.4 (34 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ratio:	1000: 1 or 2000:1, Customized
Nominal Input:	3000A
Max. Cont. Input Current:	3600 a
Accuracy:	0.2%, 0.5%
Output Signal:	500mA, 1A, 5A Acat Nominal Input Current
Frequency Range:	40 Hz....2000 Hz
Dielectric Strength:	3kv 50Hz/60Hz at 1 Minute
Temperature Range:	-20 °c...+55 °c
Output:	2.5 Meter Cable with D01 Connector
Max. Voltage Not Insulated Conductors:	600 V
Material:	Permalloy

Product Description

Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
Features
· Measurement range of 1mA to3000A AC

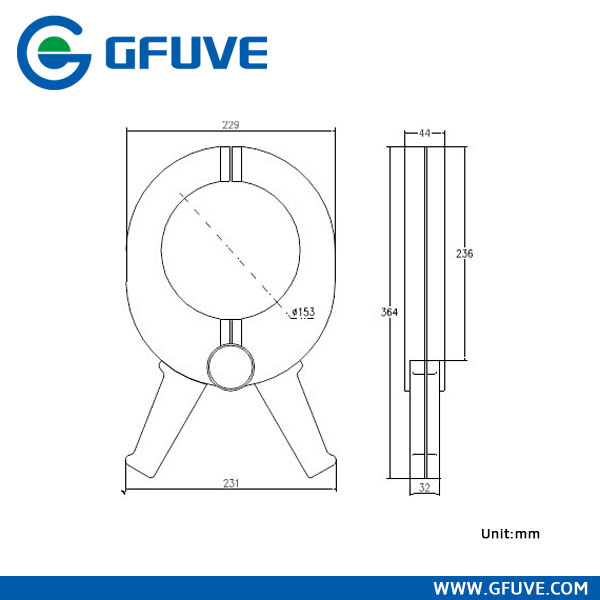

· Small, compact size; Holding wire diameter 150mm
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
· With load capacity≤ 4; When 1A output, it is 0.1; When 5A output, it is 2.5VA.
· Output model: Lead output(2.5m)

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
