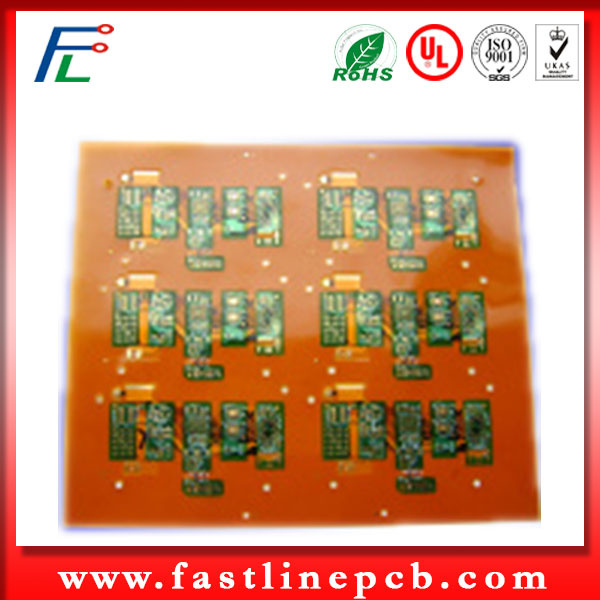

High Quality Custom Touch Panel FPCB

Prod Model:	FL046
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Material:	Polyimide
Board Layer:	2
Board Thickness:	1.1 Mm
Copper Thickness:	1 Oz
Solser Mask:	Yellow
Silkscreen:	White
Surface Finishing:	Enig
Lead Time:	4-5 Working Days
Structure:	Double-Sided FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Application:	Aviation and Aerospace
Conductive Adhesive:	Conductive Silver Paste
Base Material:	Polyimide

Product Description

High Quality Custom Touch Panel FPCB Product Description Advanced Features: 1.Rapid response 2.Quick turn production (small, medium and large runs) 3.On time delivery 4.Unsurpassed knowledge of the industry 5.Prototype service and testing 6.Polyimide, Polyester and othersAssembly (connectors, SMT, through hole, stiffeners, pins and contacts) 7.Testing (electrical, functional and prototypes) FPC showcase: Our Services Fastline also could provide FPC&Flexible PCB board layout, manufacturing, FPC copy, components sourcing,FPC assembly services. and we have got the UL, ISO, SGS certifications. Fastline FPC board and Rigid-flex PCB Capability Technology and Capabilities Material Polyimide / Polyester Counts Flex: 1~8L; Rigid-Flex: 2~8L Board Thickness Min.0.05mm ;  Max. 0.3mm Copper Thickness 1/3 oz --- 2 oz Maximum dimensions For FPC:250mm*1200mm(normal); 250mm*100,000mm CNC Drill Size (Max) 6.5mm CNC Drill Size (Min) Flex: 0.15mm Holes Location Tolerance ±0.05mm Coverlay Drill Size (Min) 0.6mm Hole to Coverlay Opening Windows (Min) 0.15mm Min Line Width / Spacing 0.1/0.1mm Aspect Ratio 61 Copper Thickness on Hole Wall Flex:12-22μm Min Pad Size φ0.2mm Etch Tolerance Finished line width tolerance ±20% Pattern Registration Tolerance ±0.1mm (Working Panel Size: 250*300mm) Coverlay Registration Tolerance ±0.15mm Solder Mask Registration Tolerance ±0.2mm Solder Mask to PAD Non photosensitive: 0.2mm Photosensitive: 0.1mm Min. Solder Mask Dam 0.1mm Misregistration Tolerance for Stiffener, Adhesive, Glue paper ±0.30mm Surface Finish Plating Ni / Au ; Chemical Ni / Au ; OSP Company Information Fastline is a Leading PCB manufacturer in China. It was founded in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries. Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument , security electronics, aerospace and so on. And Provides "PCB One-stop PCB solution" to meet customers' diverse demands. Our factories with a facility area of more than 40,000 square meters with 1000 professional staff,And we have got the approval of  ISO9001 certificates. UL Certification and all Products Meet RoHS compliance. Pls see the production line below, More information, pls contact with: Contact Person:  Bella
