High Quality Customized Electric Oven Tubular Heating Element

Name: High Quality Customized Electric Oven Tubular Heating Element
Brand: all-electronics-online.com
SKU: 733092652
Availability: InStock
Rating: 4.6 (25 reviews)

Price:	US $ 3-4/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-OH024
Wattage:	Customized
Voltage:	Customized

Product Description

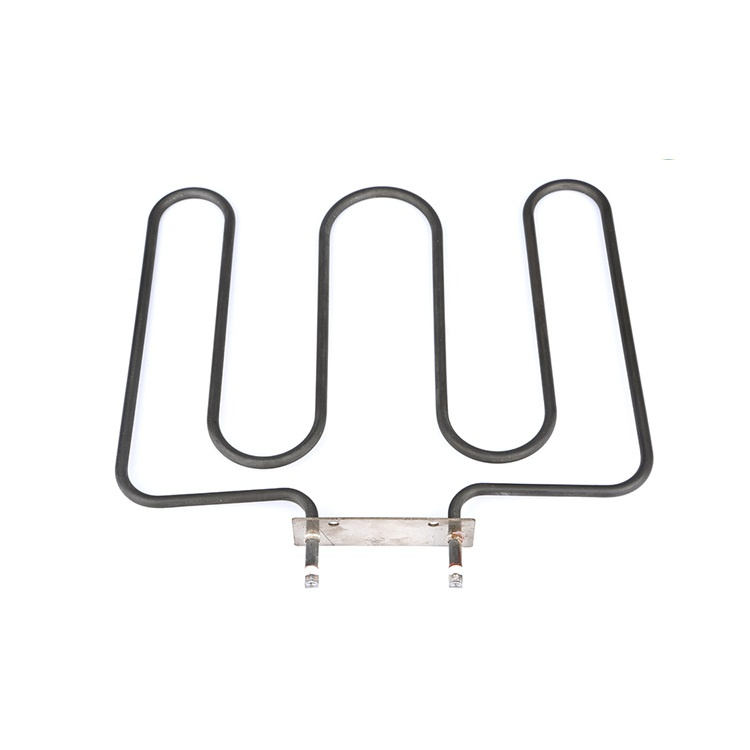

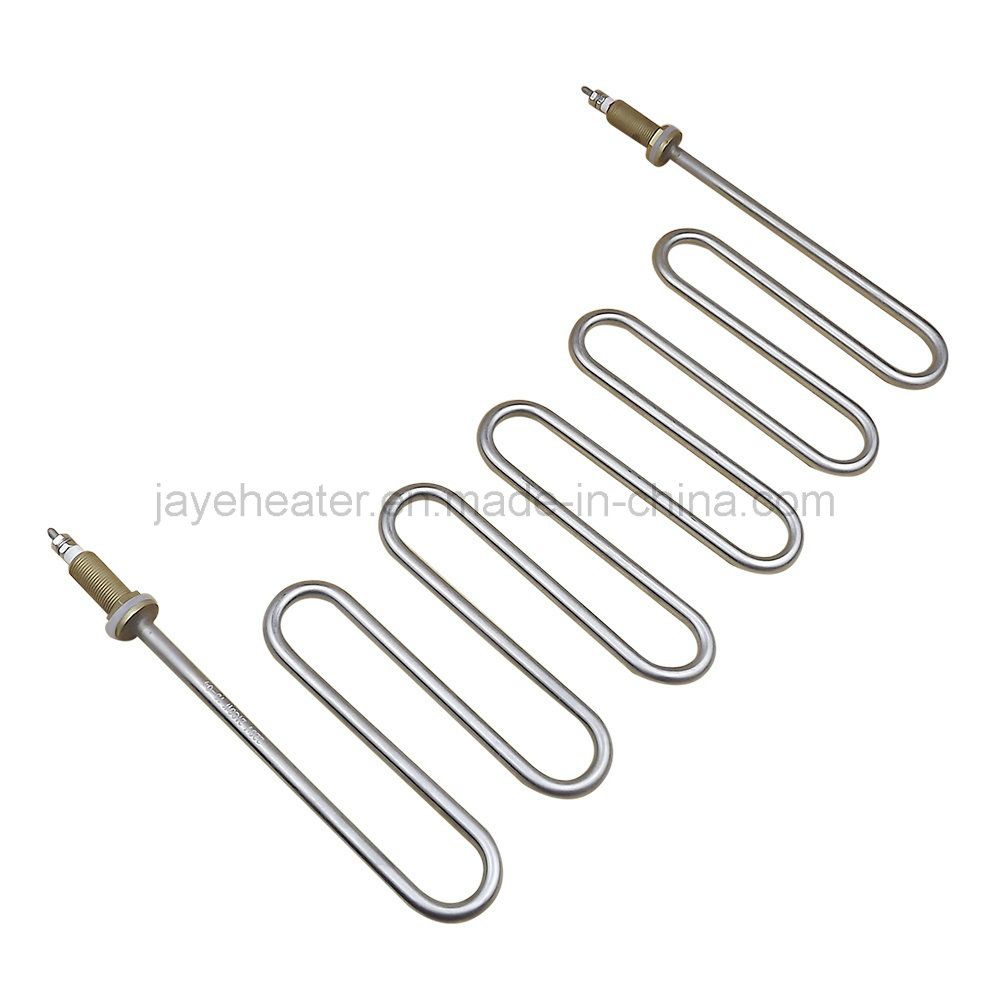

Electric Grill Tubular Heater Oven Heating Element

1.Products Name: Heating element
2.Type:Oven and Barbecue heating element
3.Tube Diameter: (your required) mm
4.Sheath Material:AISI304
5.Rating power: 110-230V,

6.Rating watt:500-3000W ,also can be customized

7.Power and configuration can be determined according to customers' requirements

8.Excellent corrosion resistance

9.Can also be formed and shaped into various geometries for radiant heating and contact surface heating applications

10.The specification can change with your requirement,Quality guarantee,welcome to inquiry.

Working temperature		750ºG max.
Heat intensity		Not exceeding 30Wcm2 (advisable)
Tolerance of length		+/-1.5%
Tolerance of diameter		-0.01 a -0.06 m/m
Escape of current (when cold)		<=0.1mA a 242 v
Insulation (when cold)		5 Min Ohmios 500 Watts minimum
Dielectric strength		1500v. 1/seg
Tolerance of cut of connexion		+/-15 mlm
Power tolerance (w)		5 % - 10 %

When you have enquiry, Please let us know the below information:
1 tube material
2 voltage power
3 wiring material
4 drawing is preferred
5 Tube Diameter and length.
