High Quality D Series Current Transformer

Name: High Quality D Series Current Transformer
Brand: all-electronics-online.com
SKU: 698038645
Availability: InStock
Rating: 4.3 (68 reviews)

Price:	US $ 1.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50/60Hz
Rated Current:	60A---630A
Safe Factor:	Fs5
Secondary Current:	5A/1A
Type:	Current Transformer
Phase:	Both

Product Description

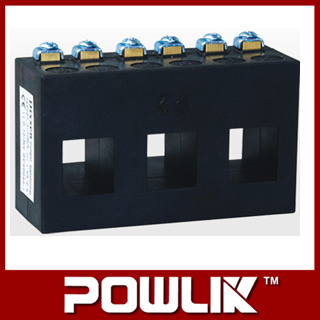

D Series Current Transformer

1. DESCRIPTION
A range of (2 frames) combination design 3 in 1 plastic case current transformer, perfectly math for install with most popular MCCB, greatly save space. Getting more and more popular in worldwide

2. FEATURE
Base mounting
With or without plastic terminal cover
Greatly save space
Primary current from 60A to 630A.

3. SPECIFICAIONS
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage, (Um) 0.72Kv AC.
Continuous overload, (ID) 1.2In
Operating temperature 10º C~50º C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
